Description

Price

1

WASHER,20.5X25.5X0.5

92022-252

$6.22

2

RING-SNAP,24MM

92033-026

$8.79

3

SPRING

92081-097

$11.80

4

WASHER,25.3X30X0.5

92022-159

$8.58

5

RATCHET

13078-007

$75.68

6

GEAR,KICKSTARTER

13068-029

Unavailable

7

SHAFT,KICKSTARTER

13066-031

Unavailable

8

GUIDE,KICKSTARTER

13070-007

Unavailable

9

SPRING,KICKSTARTER

92082-003

$28.46

10

PEDAL ASSY

13058-046

Unavailable

11

BOSS-KICK PEDAL

13061-014

Unavailable

12

WASHER BRAKE PEDAL

92022-085

$3.92

13

SPRING,KICK PEDAL

92081-020

$4.26

14

BOLT-HEX HEAD,10X25

114B1025

$3.85

15

BALL-STEEL,1/4

600A0800

$0.62

16

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

17

STOPPER,KICKSTARTER

13072-014

$11.60

18

GUIDE-KICK

13206-1003

$9.93

19

WASHER,LOCK

92031-008

$1.84

20

BOLT-UPSET,6X16

112G0616

$1.10

20

BOLT-UPSET,6X16

112G0616

Unavailable

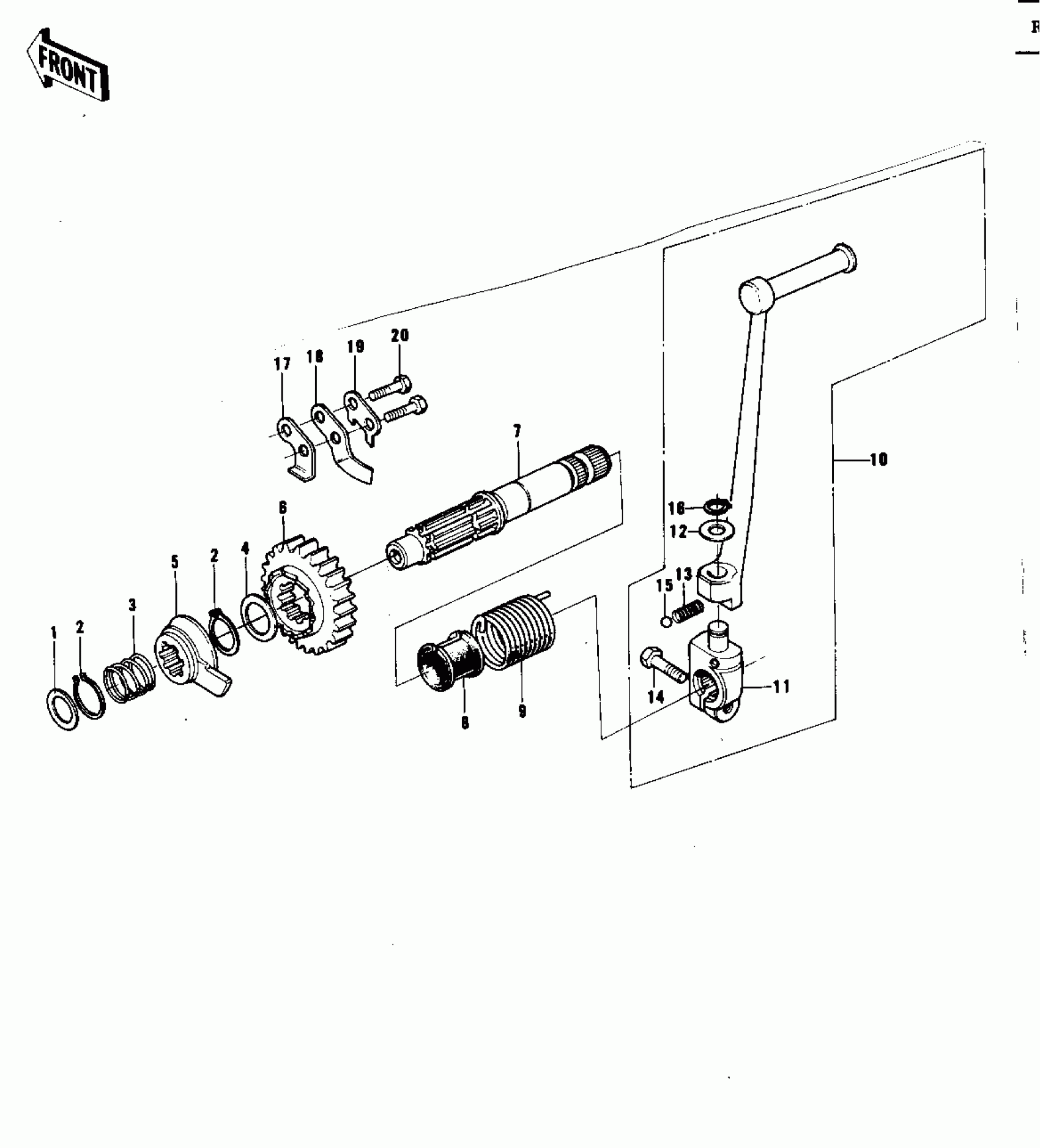

Kawasaki F12MX KICKSTARTER MECHANISM ('73 F12MX 450) Diagram

WASHER,20.5X25.5X0.5

RING-SNAP,24MM

SPRING

WASHER,25.3X30X0.5

RATCHET

GEAR,KICKSTARTER

SHAFT,KICKSTARTER

GUIDE,KICKSTARTER

SPRING,KICKSTARTER

PEDAL ASSY

BOSS-KICK PEDAL

WASHER BRAKE PEDAL

SPRING,KICK PEDAL

BOLT-HEX HEAD,10X25

BALL-STEEL,1/4

CIRCLIP-TYPE-E,10MM

STOPPER,KICKSTARTER

GUIDE-KICK

WASHER,LOCK

BOLT-UPSET,6X16

BOLT-UPSET,6X16
