Partiron

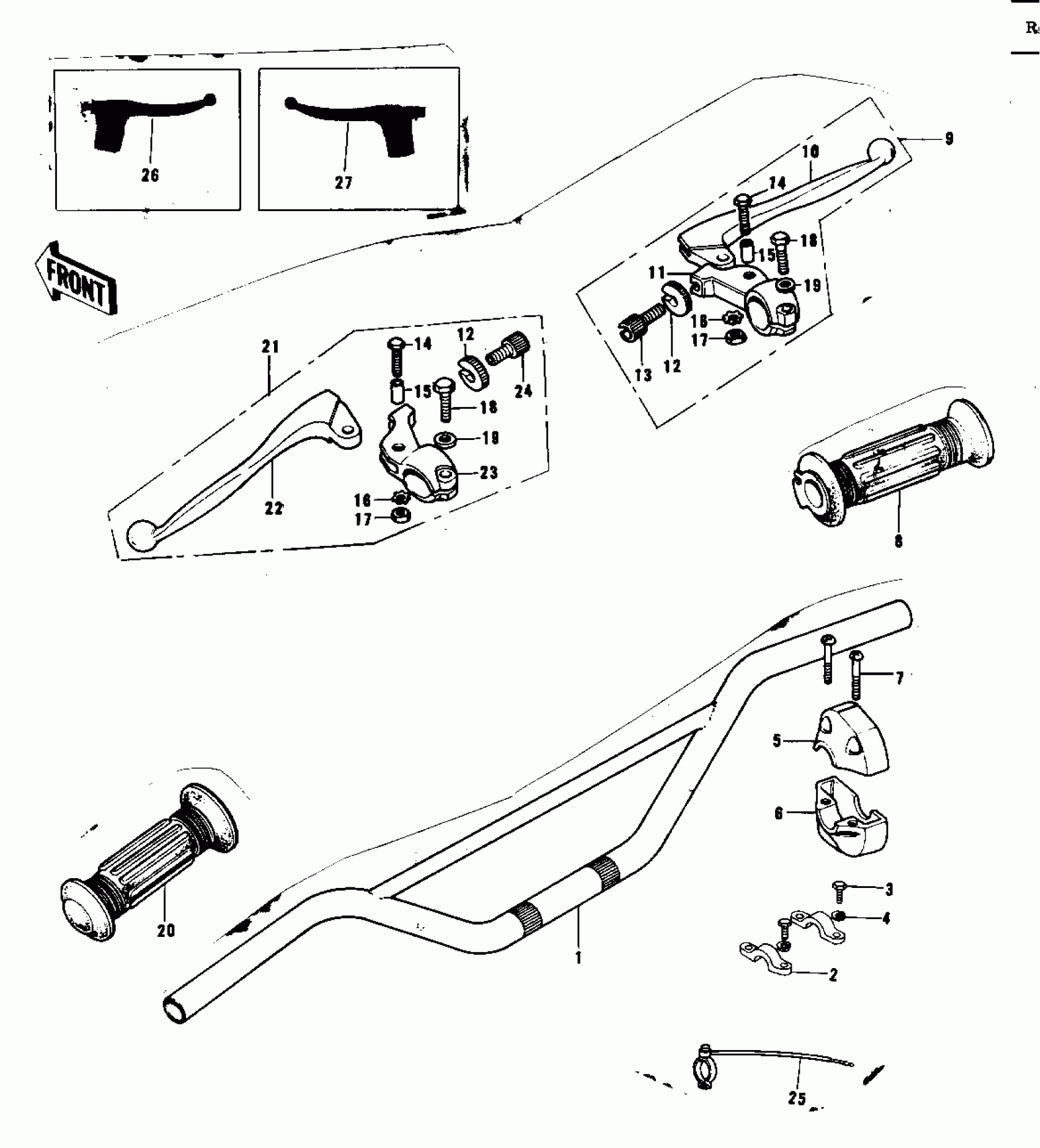

Kawasaki F12MX HANDLEBAR ('73 F12MX 450) Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

46004-025

Unavailable

2

HOLDER-HANDLE,UPP

46012-008

$33.69

3

BOLT 8X38

92001-1405

$12.52

4

WASHER SPRING 8MM

461F0800

Unavailable

5

CASE,R.H UPPER

46041-016

$9.03

6

CASE,R.H UPPER

46023-014

$23.63

7

SCREW-PAN-CROS

220B0520

$0.62

8

GRIP,THROTTLE

46019-029

$66.17

9

LEVER ASSY,FRNT BRAK

46021-019

$24.03

10

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

11

HOLDER,FR BRAKE LEVER

46060-008

$32.73

12

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

13

SCREW,CABLE ADJUST

46055-010

$29.42

14

BOLT HEX HEAD 5X20

92007-020

Unavailable

15

COLLAR LEVER

46059-011

Unavailable

16

WASHER LOCK 5MM

464H0500

$1.51

17

NUT-HEX,5MM

312B0500

Unavailable

18

BOLT HEX HEAD 6X25

110N0625

Unavailable

19

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

20

RUBBER,L.H GRIP

46075-023

Unavailable

21

LEVER ASSY,CLUTCH

46076-029

$26.14

22

LEVER-GRIP,CLUTCH

46092-015

$19.69

23

HOLDER,CLUTCH LEVER

46094-010

Unavailable

24

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

25

SWITCH,ENGINE STOP

46027-012

Unavailable
