1973 Kawasaki F12MX Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1973 Kawasaki F12MX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

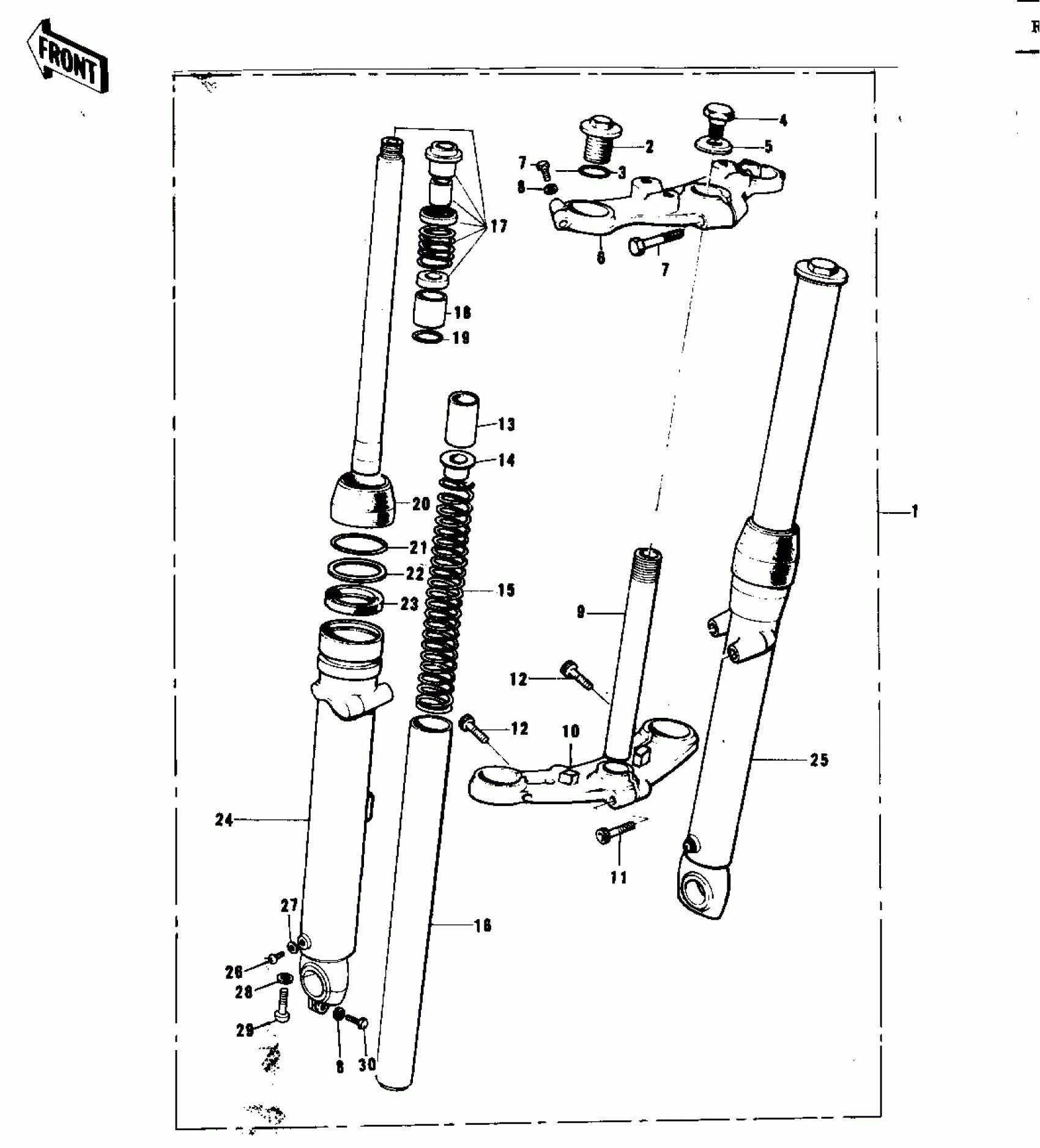

1973 Kawasaki F12MX Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

44001-120

1
Out of stock

2

BOLT-FORK FITTING

44041-037

1
Out of stock

3

RING-O,FORK TOP

92055-1012

1
Out of stock

4

BOLT STRNG STEM HEAD

44041-007

1
Out of stock

5

WASHER STRNG STEM HD

44043-016

1
Out of stock

6

HEAD,STEERING STEM

44039-059

1
Out of stock

7

BOLT-HEX HEAD.8M/M

44041-045

1
Out of stock

8

WASHER SPRING 8MM

461F0800

1
Out of stock

9

SHAFT,STEERING STEM

44052-006

1
Out of stock

10

STEM,STEERING

44038-007

1
Out of stock

11

BOLT-STEERING STEM

44041-043

1
Out of stock

12

BOLT

44041-061

1
Out of stock

13

SPACER,FORK SPRING

44028-030

1
Out of stock

14

GUIDE-FORK SPRING

44029-019

1
Out of stock

15

SPRING,FORK

44026-050

1
Out of stock

16

TUBE,FORK INNER

44013-044

1
Out of stock

17

CYLINDER-FORK

44022-015

1
Out of stock

18

PISTON FORK

44018-001

1
Out of stock

19

CIRCLIP FORK PISTON

44044-008

1
Out of stock

20

DUST SHIELD-FORK

44010-019

1
Out of stock

21

CIRCLIP OIL SEAL FIT

44044-005

1
Out of stock

22

WASHER OIL SEAL FIT

44043-023

1
Out of stock

23

OIL SEAL,FORK

44009-020

1
Out of stock

24

TUBE,LH,FORK OUTER

44005-051

1
Out of stock

25

TUBE,RH,FORK OUTER

44006-049

1
Out of stock

26

BOLT-STEERING STEM

44041-043

1
Out of stock

27

GASKET

44045-045

1
Out of stock

28

GASKET

44045-057

1
Out of stock

29

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

30

BOLT

44041-060

1
Out of stock
