Description

Price

1

UNAVAILABLE IN PRICE BOOK

32002-068

Unavailable

2

NUT,25MM,T=12

92015-1546

$20.96

3

CAP,STEERING STEM

46098-014

Unavailable

4

BEARING,STREERIN STEM

92047-016

$16.53

5

BOLT,HEX HEAD,10X65

92001-1255

Unavailable

6

BOLT

92003-133

Unavailable

7

NUT,10MM

92019-016

Unavailable

8

BAR,L.H FOOTREST

34028-013

Unavailable

9

BAR,R.H FOOTREST

34028-014

Unavailable

10

BOLT,HEX HEAD,8X30

92003-137

$6.81

11

NUT,LOCK,8MM

92015-1124

$5.42

12

STAND,PORTABLE

34033-013

$37.94

13

PEDAL-BRAKE

43001-051

$19.69

14

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

15

COLLAR,BRAKE PEDAL

92027-197

$5.70

16

SPRING,BRK PEDAL RTN

43005-024

$4.82

17

WASHER,PLAIN,30MM

92022-264

$1.00

18

DAMPER,RUBBER

92075-225

$9.91

19

PLATE,ENGINE BASE

32117-003

$8.55

20

SPRING,BRAKE PEDAL

43005-027

$5.70

21

PEDAL,BRAKE

43001-061

$33.39

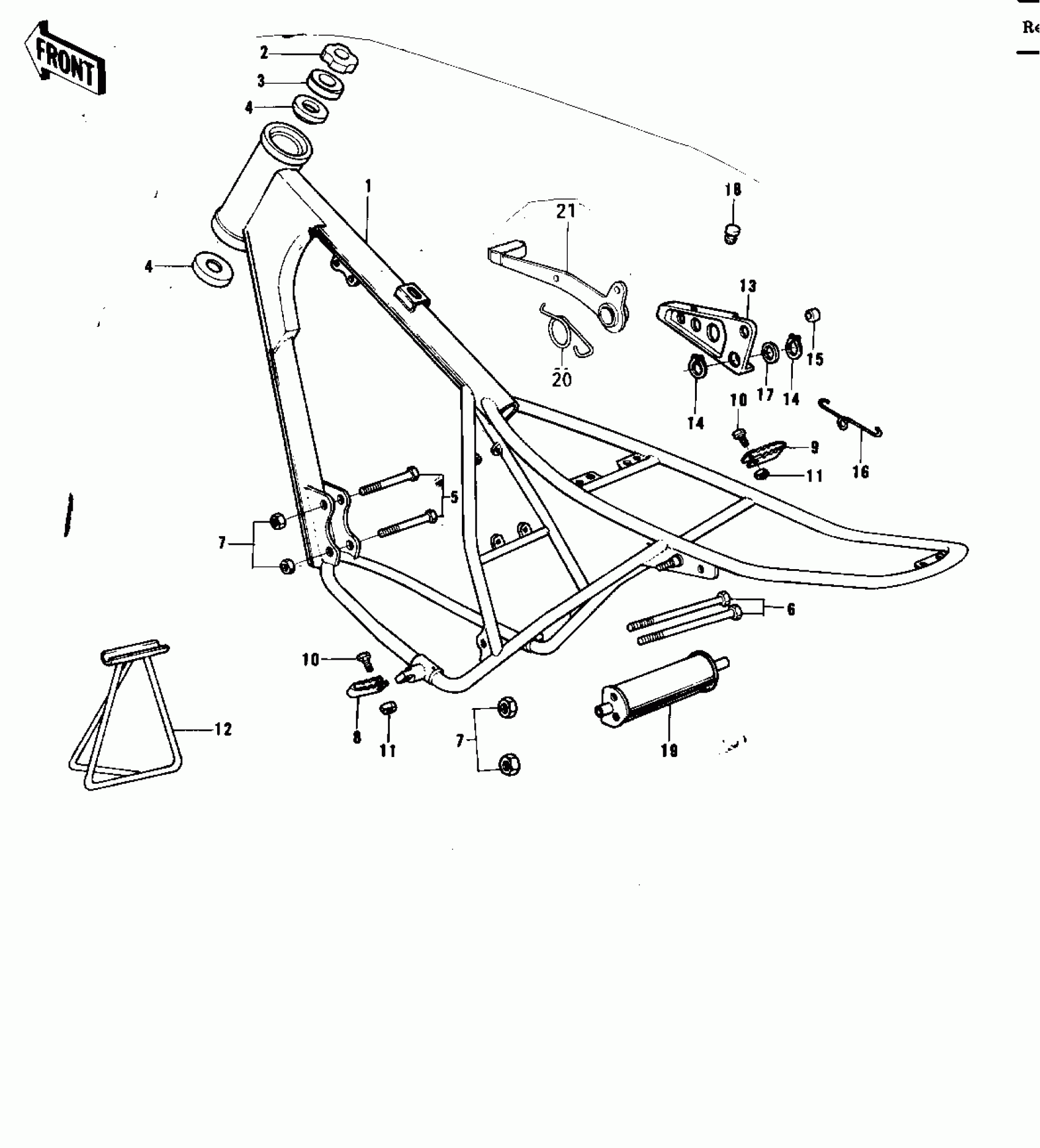

Kawasaki F12MX FRAME/FRAME FITTINGS ('73 F12MX 450) Diagram

UNAVAILABLE IN PRICE BOOK

NUT,25MM,T=12

CAP,STEERING STEM

BEARING,STREERIN STEM

BOLT,HEX HEAD,10X65

BOLT

NUT,10MM

BAR,L.H FOOTREST

BAR,R.H FOOTREST

BOLT,HEX HEAD,8X30

NUT,LOCK,8MM

STAND,PORTABLE

PEDAL-BRAKE

CIRCLIP-TYPE-C,22MM

COLLAR,BRAKE PEDAL

SPRING,BRK PEDAL RTN

WASHER,PLAIN,30MM

DAMPER,RUBBER

PLATE,ENGINE BASE

SPRING,BRAKE PEDAL

PEDAL,BRAKE
