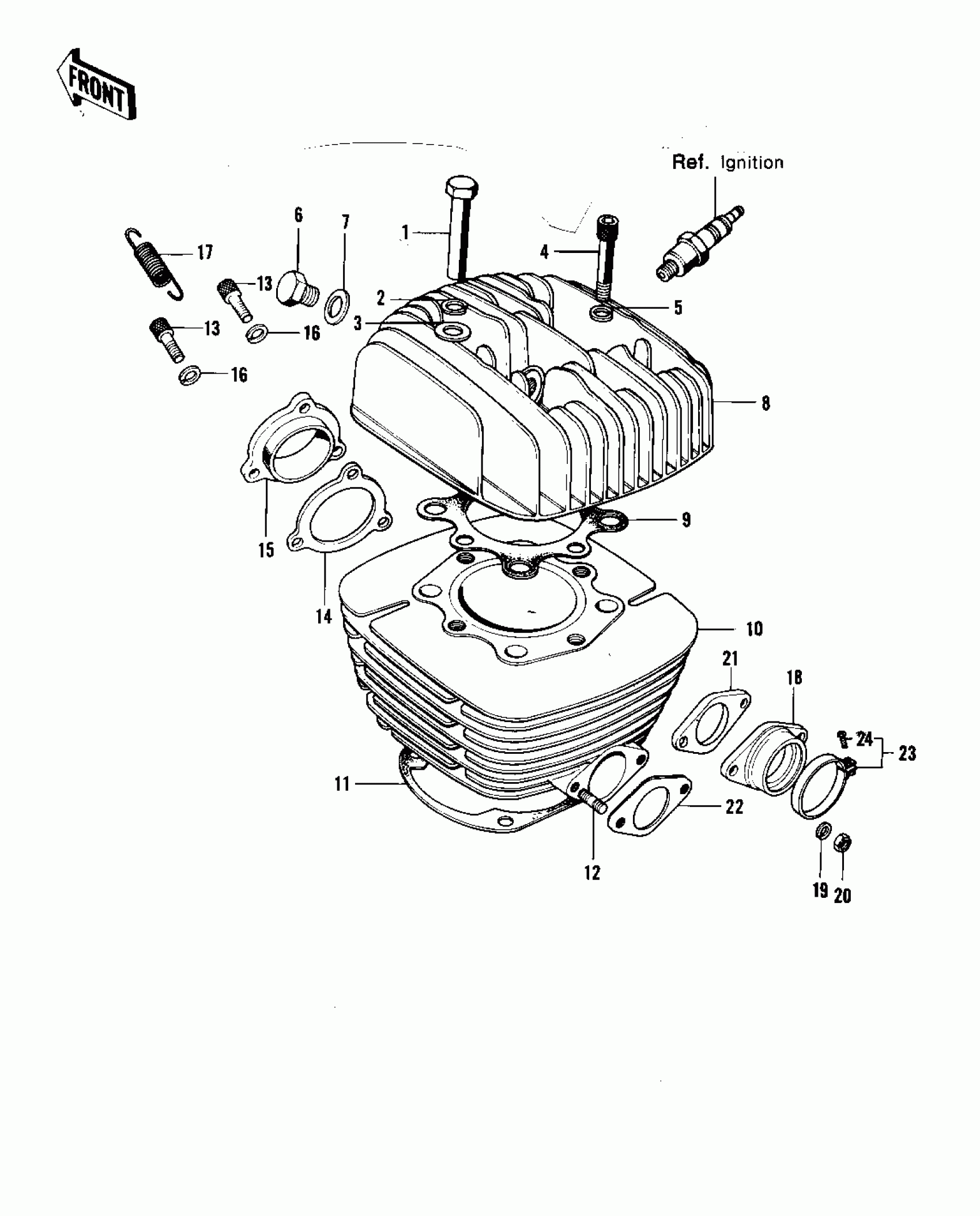

Kawasaki F12MX CYLINDER HEAD/CYLINDER ('73 F12MX 450) Diagram

#

Description
Price

1

NUT 10MM

92015-022

$24.16

2

WASHER SPRING 14MM

461F1400

Unavailable

3

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

4

BOLT,8X50

120P0850

$4.89

5

WASHER SPRING 8MM

461F0800

$0.40

5

WASHER SPRING 8MM

461F0800

$0.40

6

PLUG-CYLINDER HEAD

92067-005

Unavailable

7

GASKET-CYL HEAD PLUG

92065-068

Unavailable

8

CYLINDER HEAD

11001-082

Unavailable

9

GASKET,CYLINDER HEAD

11004-059

Unavailable

10

CYLINDER

11005-102

Unavailable

11

GASKET,CYLINDER BASE

11009-035

Unavailable

12

BOLT-STUD,8X20

172G0820

$2.12

13

BOLT-SOCKET,6X20

120P0620

$1.74

14

GASKET,EXHAUST PIPE

18050-005

Unavailable

15

HOLDER,EXHAUST PIPE

18062-007

$73.67

16

WASHER SPRING 6MM

461F0600

$0.69

17

SPRING-CONNECTOR

18071-003

$11.49

18

HOLDER,CARBURETOR

16065-021

Unavailable

19

WASHER SPRING 8MM

461F0800

$0.40

19

WASHER SPRING 8MM

461F0800

$0.40

20

NUT-HEX-SMALL,8MM

318B0800

$0.59

21

INSULATOR,HEAT

16061-015

Unavailable

22

GASKET,AIR INLET

16062-017

Unavailable

23

CLAMP,CARBURETOR HLDR

92037-116

$14.66

24

SCREW-PAN-CROS

220B0535

$3.70
