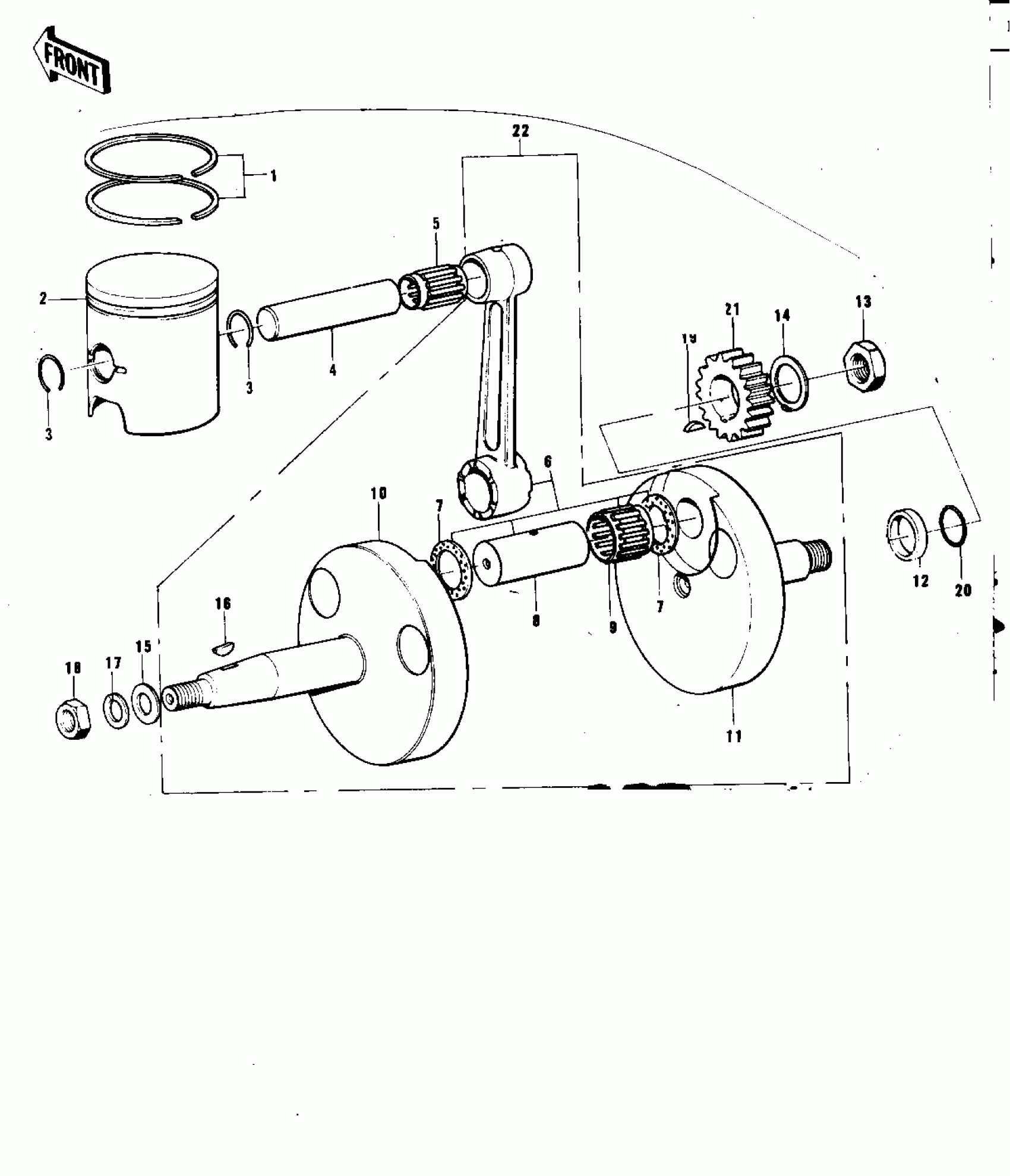

Kawasaki F12MX CRANKSHAFT/PISTON ('73 F12MX 450) Diagram

#

Description
Price

1

RING SET,STD

13008-045

Unavailable

2

PISTON,STD

13001-060

Unavailable

3

CIRCRIP,PISTON PIN

92036-024

Unavailable

4

PIN-PISTON

13002-024

Unavailable

5

BEARING-SMALL END,KTV192425

13033-1055

$30.91

6

CONNECTING ROD SET

13044-027

Unavailable

7

WASHER,CONROD SIDE

92026-093

$26.41

8

PIN,CRANK

13035-032

Unavailable

9

BEARING,BIG END

13034-035

Unavailable

10

CRANKSHAFT,L.H

13037-054

Unavailable

11

CRANKSHAFT,R.H

13038-050

Unavailable

12

COLLAR,CRANKSHAFT

92027-190

Unavailable

13

NUT,18MM

92015-019

$7.22

14

WASHER LOCK 18MM

92024-015

Unavailable

15

WASHER-PLAIN,14MM

92022-172

Unavailable

16

KEY,WOODRUFF

92038-001

$4.96

17

WASHER SPRING 14MM

461F1400

Unavailable

18

NUT 14MM

92015-043

Unavailable

19

WOODRUFF KEY

510A5100

$2.70

20

"0" RING,22MM

670B3022

$3.44

21

GEAR,PRIMART

13121-024

Unavailable

22

CRANKSHAFT ASSY

13036-042

Unavailable
