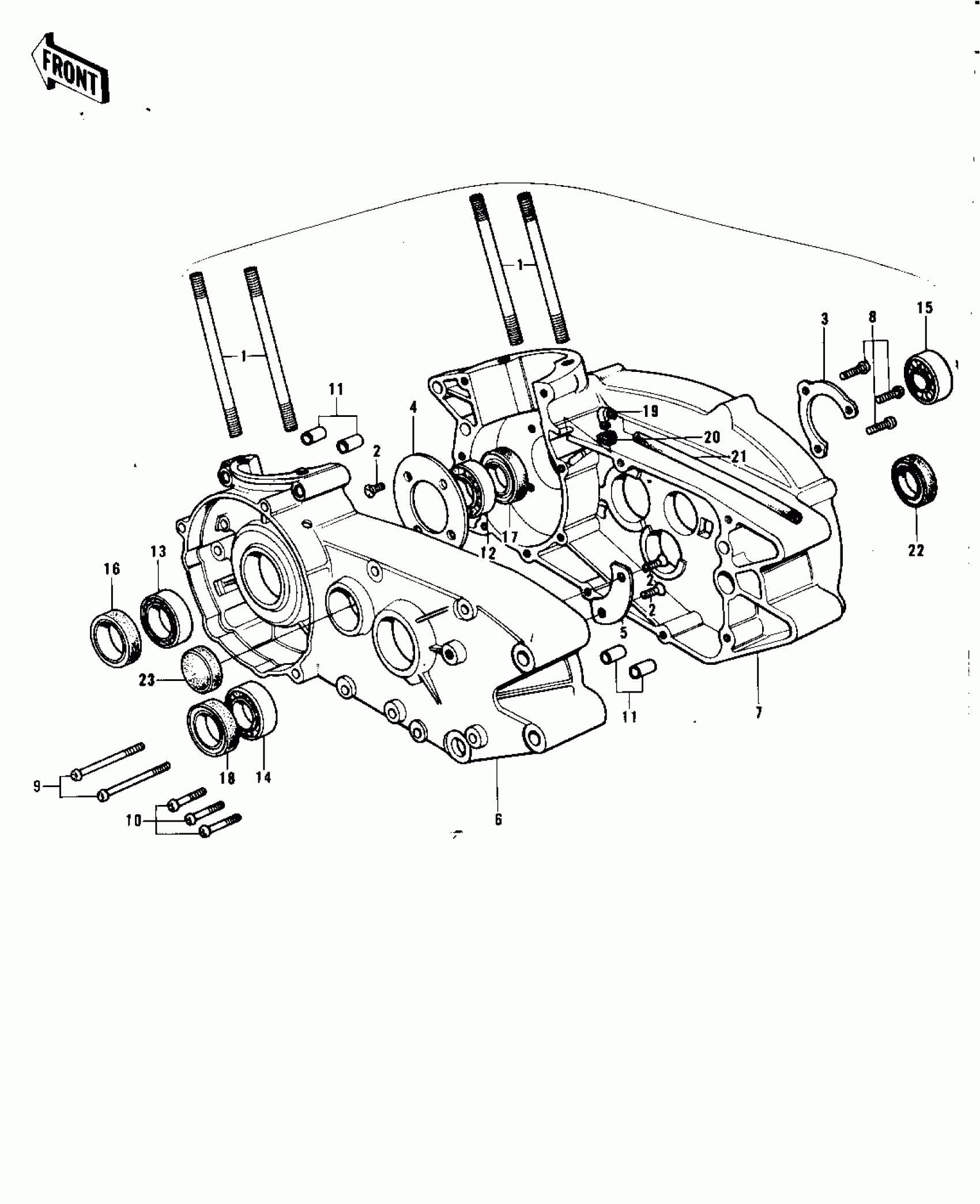

Kawasaki F12MX CRANKCASE ('73 F12MX 450) Diagram

#

Description
Price

1

STUD 10X90

172G1090

$8.76

2

SCREW-CSK-CROS,6X16

221B0616

$0.59

3

PLATE

14014-025

Unavailable

4

PLATE

14014-026

Unavailable

5

PLATE

14014-027

Unavailable

6

CRANKCASE,L.H

14002-094

Unavailable

7

CRANKCASE,R.H

14003-067

Unavailable

8

SCREW-PAN-CROS,6X14

220B0614

$1.48

9

SCREW PAN HEAD 6X50

220B0650

$1.25

10

SCREW PAN HEAD 6X70

220B0670

$3.84

11

PIN,DOWEL,10X14

92043-1037

$0.74

12

BEARING-BALL

92045-016

$50.30

13

BEARING-BALL,#6306

92045-037

$42.66

14

BEARING-BALL,#6205C3

601B6205

$19.57

15

BEARING BALL #6304

601B6304

$36.85

16

SEAL-OIL

92050-057

$23.48

17

OIL SEAL,TB35508

653B355008

$8.78

18

SEAL-OIL,TB3040

92050-033

$21.74

19

BREATHER ASSY

14069-1001

$24.64

20

GROMMET,BREATHER

92071-042

$4.26

21

PIPE-BREATHER

92059-061

Unavailable

22

BUSHING,26X35X14

92028-131

$38.06

23

CAP,L.H.CRANKCASE

92073-024

Unavailable
