Description

Price

1

CABLE,FRONT BRAKE

54005-075

$16.36

2

CABLE,CLUTCH

54011-056

$18.55

3

CABLE,THROTTLE

54012-106

Unavailable

4

CABLE,REAR BRAKE

54022-023

Unavailable

5

PIN R BRK CABLE JOINT

92043-034

Unavailable

6

PIN COTTER 2.0X15

550D2015

$1.04

7

GUIDE,CABLE

54030-010

$7.09

8

GUIDE,CABLE

54030-009

$6.81

9

BAND,L=123

92072-030

$5.00

10

BAND,L=149

92072-031

$5.00

11

PIN,BRAKE ROD

92043-065

$5.57

12

NUT,BRAKE ROD

92015-042

$6.22

13

SCREW PAN HEAD 5X22

220B0522

$0.74

14

WASHER-PLAIN,5MM

411B0500

$0.46

15

NUT-HEX

311B0500

$0.47

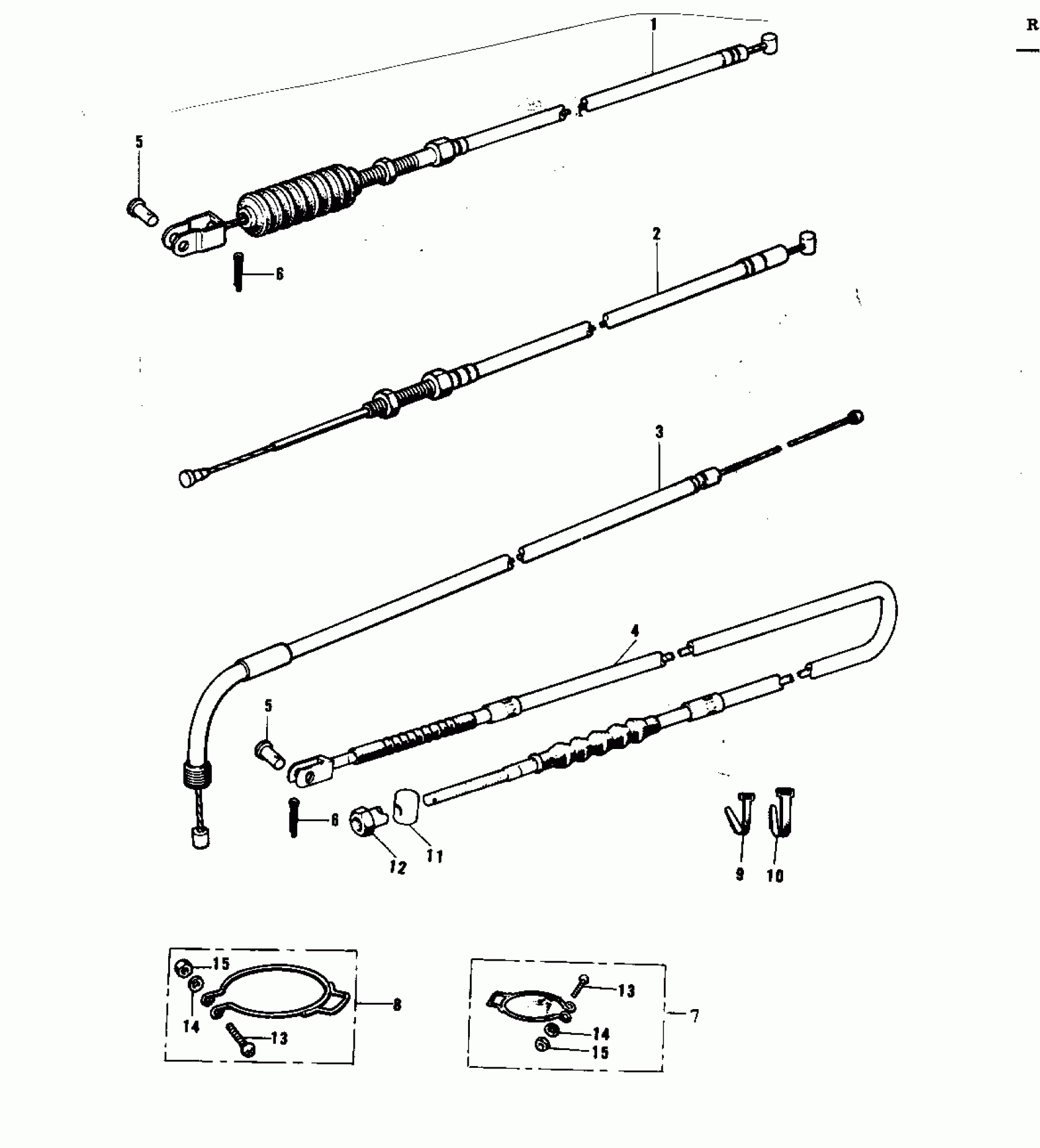

Kawasaki F12MX CABLES ('73 KX 450) Diagram

CABLE,FRONT BRAKE

CABLE,CLUTCH

CABLE,THROTTLE

CABLE,REAR BRAKE

PIN R BRK CABLE JOINT

PIN COTTER 2.0X15

GUIDE,CABLE

GUIDE,CABLE

BAND,L=123

BAND,L=149

PIN,BRAKE ROD

NUT,BRAKE ROD

SCREW PAN HEAD 5X22

WASHER-PLAIN,5MM

NUT-HEX
