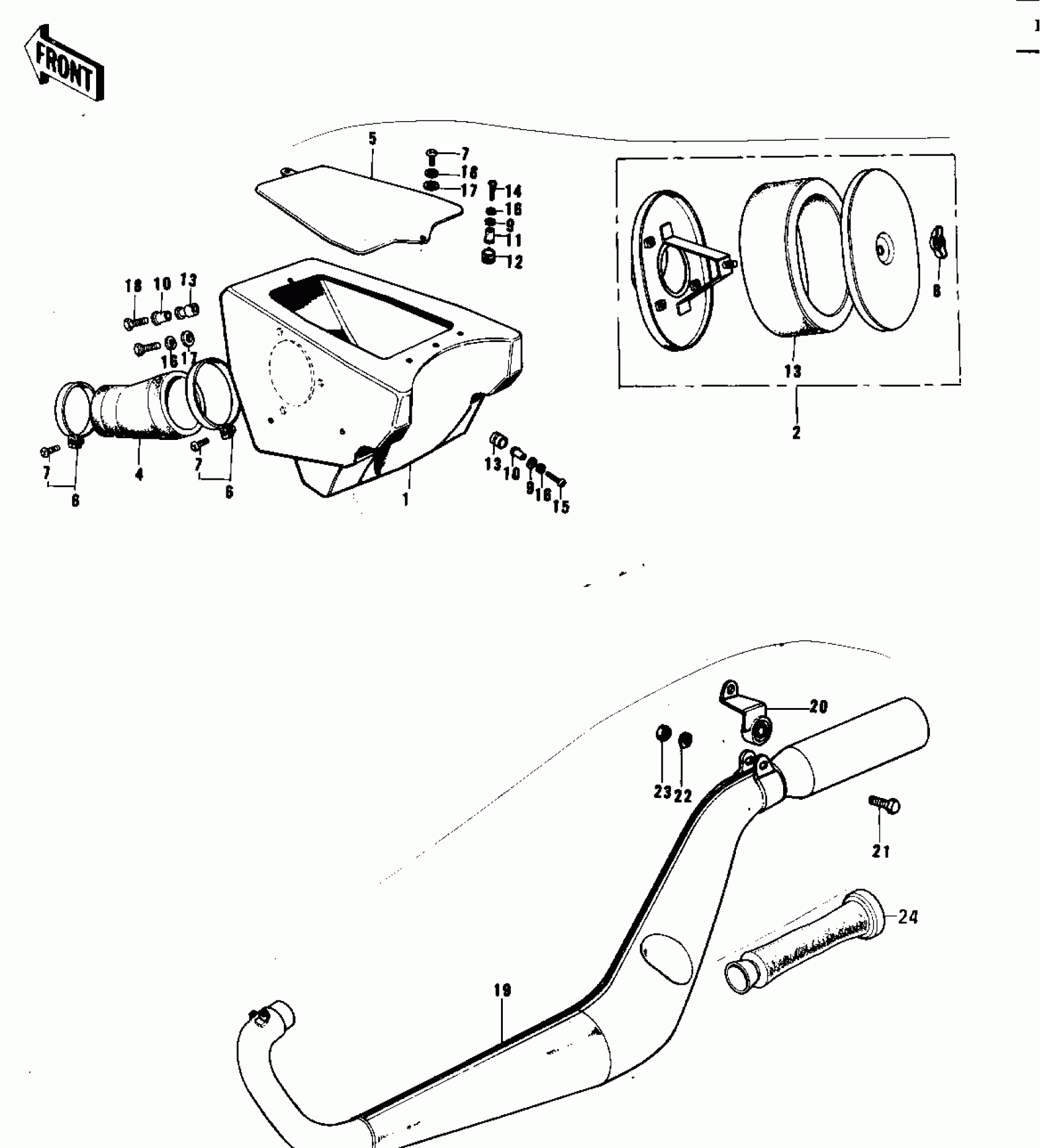

Kawasaki F12MX AIR CLEANER/MUFFLER ('73 F12MX 450) Diagram

#

Description
Price

1

BODY,AIR CLEANER

11011-030

Unavailable

2

AIR CLEANER ASSY

11010-070

Unavailable

3

ELEMENT,AIR,CLNR

11013-041

Unavailable

4

CONNECTOR

11026-008

Unavailable

5

CAP,AIR CLEANER BODY

11012-038

Unavailable

6

CLAMP

92037-115

$8.54

7

SCREW PAN HEAD 6X30

220B0630

$2.74

8

NUT-WING,6MM

92015-030

Unavailable

9

WASHER,6.5X20X1.6

92022-125

$1.02

10

COLLAR

92027-194

$5.52

11

COLLAR

92027-195

$6.57

12

DAMPER RUBBER

92075-207

Unavailable

13

DAMPER RUBBER

92075-208

$5.00

14

SCREW PAN HEAD 6X25

220B0625

Unavailable

15

SCREW PAN HEAD 6X35

220B0635

$1.18

16

WASHER SPRING 6MM

461F0600

Unavailable

17

WASHER PLAIN 6MM

411B0600

Unavailable

18

SCREW PAN HEAD 6X12

220B0612

Unavailable

19

MUFFLER ASSY

18002-101

$129.46

20

BRACKET,MUFFLER

18024-021

$21.07

21

BOLT,FLANGED,8X35

92001-1577

Unavailable

22

WASHER PLAIN 8MM

410B0800

Unavailable

23

NUT,8MM

311B0800

Unavailable

24

BAFFLE TUBE

18033-074

$71.29
