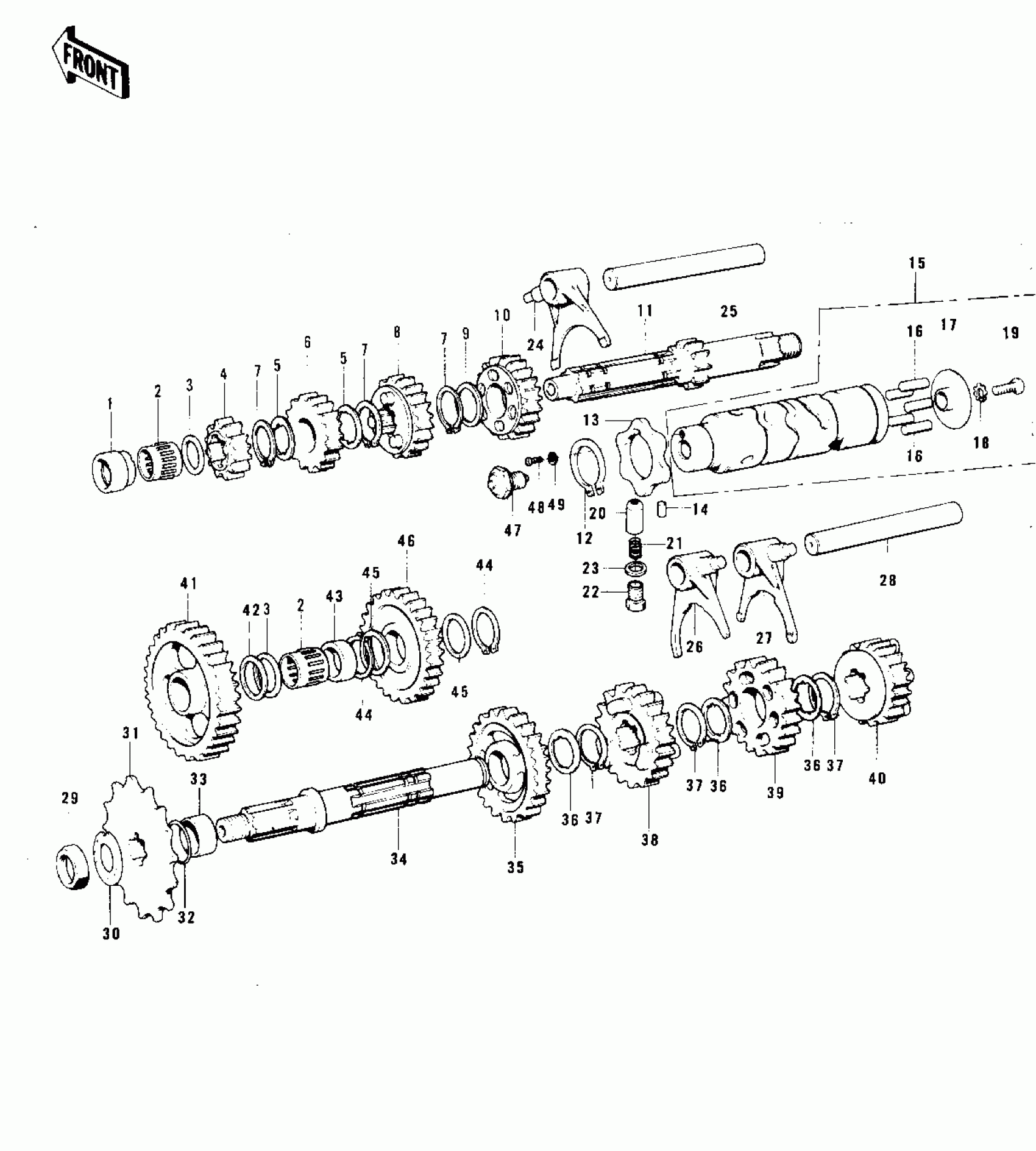

Kawasaki F11-B TRANSMISSION/CHANGE DRUM ('73 F11M) Diagram
#
1
BUSHING
92028-109
Unavailable
2
BEARING-NEEDLE
92046-1184
Unavailable
3
WASHER 17MM
92022-075
Unavailable
4
2ND GEAR-DRIVE SHAFT
13130-029
Unavailable
5
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
6
TOP GEAR,DRIVE SHAFT
13136-043
Unavailable
7
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
8
3RD GEAR,DRIVE SHAFT
13132-032
Unavailable
9
WASHER,22.3X27X0.5
92022-198
Unavailable
10
4TH GEAR,DRIVE SHAFT
13134-017
Unavailable
11
SHAFT,DRIVE
13127-040
Unavailable
12
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
13
CAM-CHANGE DRUM
13145-1058
Unavailable
14
ROLLER,4X6
610A0406
Unavailable
15
DRUM ASSY-GEAR CHANGE
13239-012
Unavailable
16
PIN,DOWEL,4X15.8
92042-014
Unavailable
17
PLATE CHANGE DRUM PIN
13142-008
Unavailable
18
WASHER LOCK 6MM
464H0600
Unavailable
19
SCREW PAN HEAD 6X12
220B0612
Unavailable
20
PIN
92043-076
Unavailable
21
SPRING
92081-112
Unavailable
22
BOLT
92001-106
Unavailable
23
GASKET
92065-090
Unavailable
24
FORK-SELECTOR,4TH&TOP
13140-044
Unavailable
25
ROD-SHIFT,LONG
13209-007
Unavailable
26
FORK-SELECTOR,2ND&3RD
13140-043
Unavailable
27
FORK-SELECTOR,LOW
13140-042
Unavailable
28
ROD-SHIFT,LONG
13209-007
Unavailable
29
NUT,18MM
92015-019
Unavailable
30
WASHER,LOCK,18MM
92024-067
Unavailable
31
ENGINE SPROCKET 14T
13144-017
Unavailable
31
ENGINE SPROCKET 14T
13144-017
Unavailable
31
ENGINE SPROCKET 15T
13144-025
Unavailable
32
RING-O
92055-035
Unavailable
33
COLLAR-ENG SPROKET
92027-163
Unavailable
34
SHAFT-OUTPUT
13128-033
Unavailable
35
2ND GEAR,OUTPUT SHAF
13131-039
Unavailable
36
WASHER,TOOTHED,22.5X31X0.5
92024-038
Unavailable
37
RING-SNAP,24MM
92033-026
Unavailable
38
TOP GEAR,OUTPUT SHAF
13137-026
Unavailable
39
3RD GEAR,OUTPUT SHAF
13133-032
Unavailable
40
4TH GEAR,OUTPUT SHAF
13135-021
Unavailable
41
LOW GEAR,OUTPUT SHAF
13129-047
Unavailable
42
WASHER THRUST
92026-021
Unavailable
43
BUSHING
92028-110
Unavailable
44
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
45
WASHER-THRUST
92022-197
Unavailable
46
IDLE GEAR-KICKSTARTE
13073-008
Unavailable
47
SWITCH,NEUTRAL
13151-018
Unavailable
48
SCREW,PAN HEAD,4X6
92009-006
Unavailable
49
WASHER SPRING 4MM
461F0400
Unavailable
