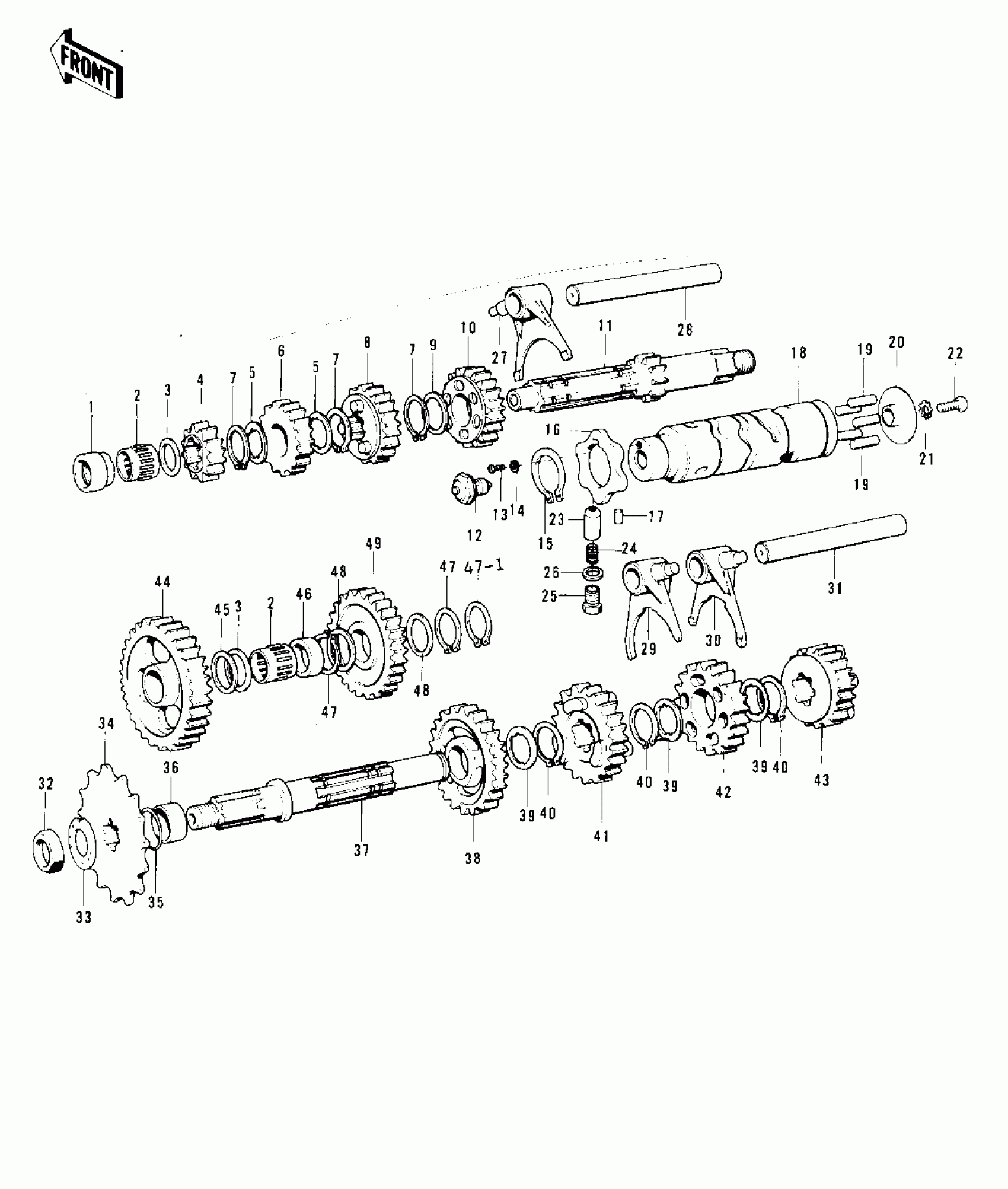

Kawasaki F11-B TRANSMISSION/CHANGE DRUM ('73-'75 F11/F1 Diagram
#
1
BUSHING
92028-109
Unavailable
2
BEARING-NEEDLE
92046-1184
Unavailable
3
WASHER 17MM
92022-075
Unavailable
4
2ND GEAR-DRIVE SHAFT
13130-029
Unavailable
4
2ND GEAR,DRIVE SHAFT
13130-031
Unavailable
5
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
6
TOP GEAR-DRIVE SHAFT
13136-039
Unavailable
7
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
8
3RD GEAR-DRIVE SHAFT
13132-031
Unavailable
9
WASHER,22.3X27X0.5
92022-198
Unavailable
10
4TH GEAR-DRIVE SHAFT
13134-014
Unavailable
11
SHAFT-DRIVE
13127-037
Unavailable
11
SHAFT,DRIVE
13127-040
Unavailable
12
SWITCH,NEUTRAL
13151-018
Unavailable
13
SCREW,PAN HEAD,4X6
92009-006
Unavailable
13
SCREW PAN HEAD 4X6
211B0406A
Unavailable
14
WASHER SPRING 4MM
461F0400
Unavailable
15
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
16
CAM-CHANGE DRUM
13145-1058
Unavailable
17
ROLLER,4X6
610A0406
Unavailable
18~22
DRUM ASSY-GEAR CHANGE
13239-012
Unavailable
19
PIN,DOWEL,4X15.8
92042-014
Unavailable
20
PLATE CHANGE DRUM PIN
13142-008
Unavailable
21
WASHER LOCK 6MM
464H0600
Unavailable
22
SCREW PAN HEAD 6X12
220B0612
Unavailable
23
PIN
92043-076
Unavailable
24
SPRING
92081-112
Unavailable
25
BOLT
92001-106
Unavailable
25
BOLT,FLANGED,16X16.5
92001-131
Unavailable
26
GASKET
92065-090
Unavailable
26
GASKET
92065-090
Unavailable
27
FORK-SELECTOR,4TH&TOP
13140-044
Unavailable
28
ROD-SHIFT,SHORT
13209-008
Unavailable
29
FORK-SELECTOR,2ND&3RD
13140-043
Unavailable
30
FORK-SELECTOR,LOW
13140-042
Unavailable
31
ROD-SHIFT,LONG
13209-007
Unavailable
32
NUT,18MM
92015-019
Unavailable
33
WASHER,LOCK,18MM
92024-067
Unavailable
34
ENG SPROCKET 13T (OP
13144-043
Unavailable
34
ENGINE SPROCKET 14T
13144-017
Unavailable
34
ENGINE SPROCKET 15T
13144-025
Unavailable
35
RING-O
92055-035
Unavailable
36
COLLAR-ENG SPROKET
92027-163
Unavailable
37
SHAFT-OUTPUT
13128-033
Unavailable
38
2ND GEAR-OUTPUT SHAF
13131-035
Unavailable
38
2ND GEAR,OUTPUT SHAF
13131-037
Unavailable
39
WASHER,TOOTHED,22.5X31X0.5
92024-038
Unavailable
40
RING-SNAP,24MM
92033-026
Unavailable
41
TOP GEAR-OUTPUT SHAF
13137-023
Unavailable
42
3RD GEAR-OUTPUT SHAF
13133-028
Unavailable
42
3RD GEAR,OUTPUT SHAF
13133-030
Unavailable
43
4TH GEAR-OUTPUT SHAF
13135-018
Unavailable
44
LOW GEAR-OUTPUT SHAF
13129-041
Unavailable
44
LOW GEAR,OUTPUT SHAF
13129-044
Unavailable
45
WASHER THRUST
92026-021
Unavailable
46
BUSHING
92028-110
Unavailable
47
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
47-1
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
48
WASHER-THRUST
92022-197
Unavailable
49
IDLE GEAR-KICKSTARTE
13073-008
Unavailable
