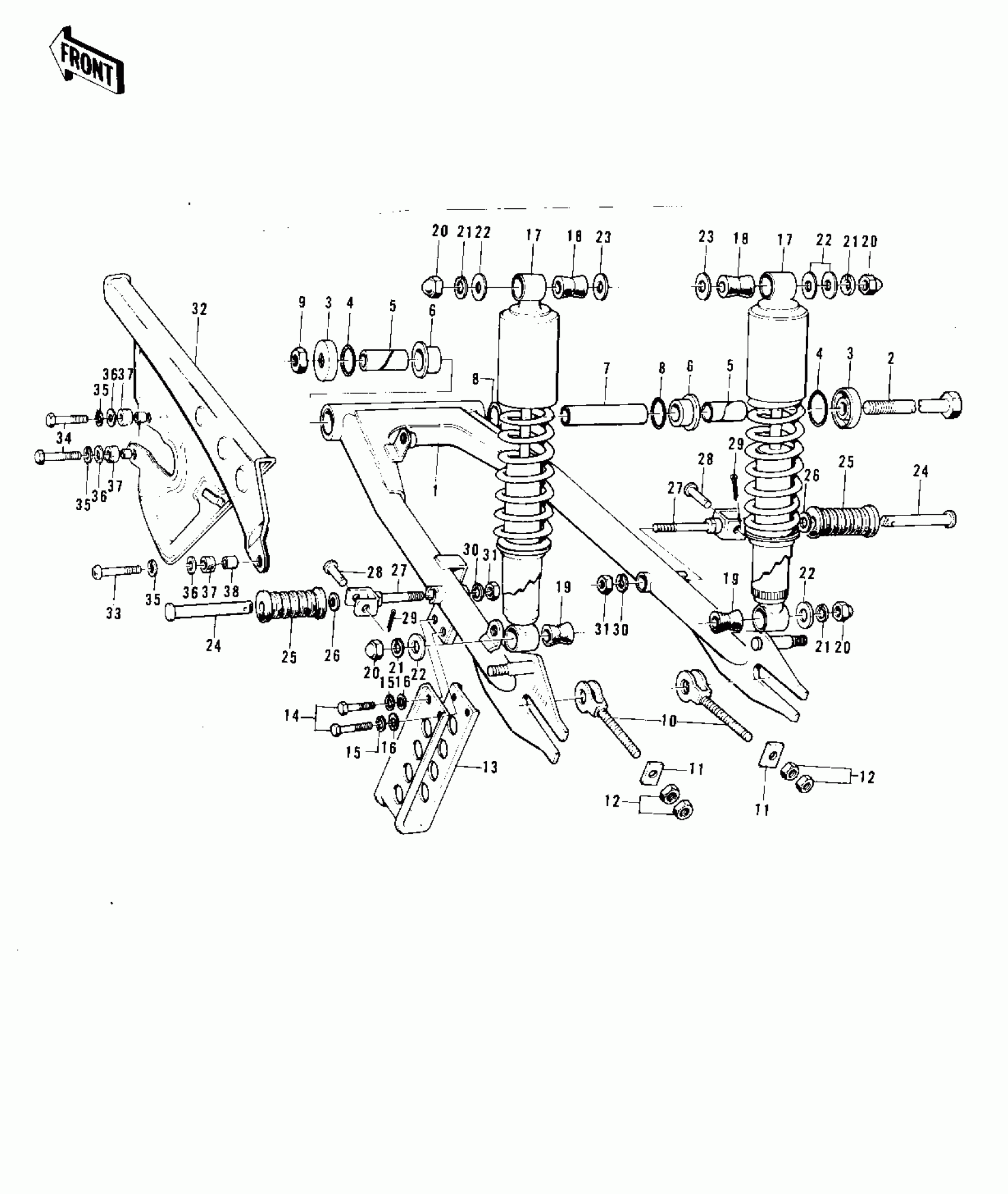

Kawasaki F11-B SWING ARM/SHOCK ABSORBERS ('73-'75 F11/F Diagram
#
1
ARM-SWING
33001-042
Unavailable
2
SHAFT-SWING ARM PIVOT
33032-035
Unavailable
3
CAP-SWINGING ARM
33035-005
Unavailable
4
"0" RING,30MM
671B2530
Unavailable
5
SLEEVE-SWINGING ARM
33034-016
Unavailable
6
BUSHING-SWING ARM
33033-009
Unavailable
7
SLEEVE-SWING ARM,LON
33034-018
Unavailable
8
O RING,16MM
670B2016
Unavailable
9
NUT-LOCK,12MM
92019-009
Unavailable
10
ADJUSTER-CHAIN
33040-050
Unavailable
11
PLATE,CHAIN ADJUSTER
33041-002
Unavailable
12
NUT 8MM
312B0800
Unavailable
13
GUARD-CHAIN
55020-008
Unavailable
14
BOLT,HEX HEAD,6X50
110G0650
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
17~19
SHOCK ABSBR RR CR
45014-067-79
Unavailable
18
BUSH A-SHCK ABS RUBER
45017-010
Unavailable
19
BUSH B-SHCK ABS RUBE
45017-009
Unavailable
20
NUT,CAP,10MM
92020-003
Unavailable
21
WASHER SPRING 10MM
461F1000
Unavailable
22
WASHER,10.5X26X2.3
92022-044
Unavailable
23
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
24
STEP,RR
34028-009
Unavailable
25
STEP,RR
34028-009
Unavailable
26
WASHER-PLAIN (OPT)
92022-199
Unavailable
27
BKT-RR FOOTREST BAR
34029-007
Unavailable
28
PIN,6X28
92043-1464
Unavailable
29
PIN COTTER 2.0X15
550D2015
Unavailable
30
WASHER-SPRING,12MM
461F1200
Unavailable
31
NUT-HEX-FINE
315B1200
Unavailable
32
CASE-CHAIN,BLACK
36014-044-21
Unavailable
33
SCREW-PAN-CROS,6X16
220B0616
Unavailable
34
BOLT-UPSET,6X16
112G0616
Unavailable
35
WASHER SPRING 6MM
461F0600
Unavailable
36
WASHER,6.5X20X1.6
92022-125
Unavailable
37
DAMPER RUBBER
92075-051
Unavailable
38
COLLAR
92027-103
Unavailable
