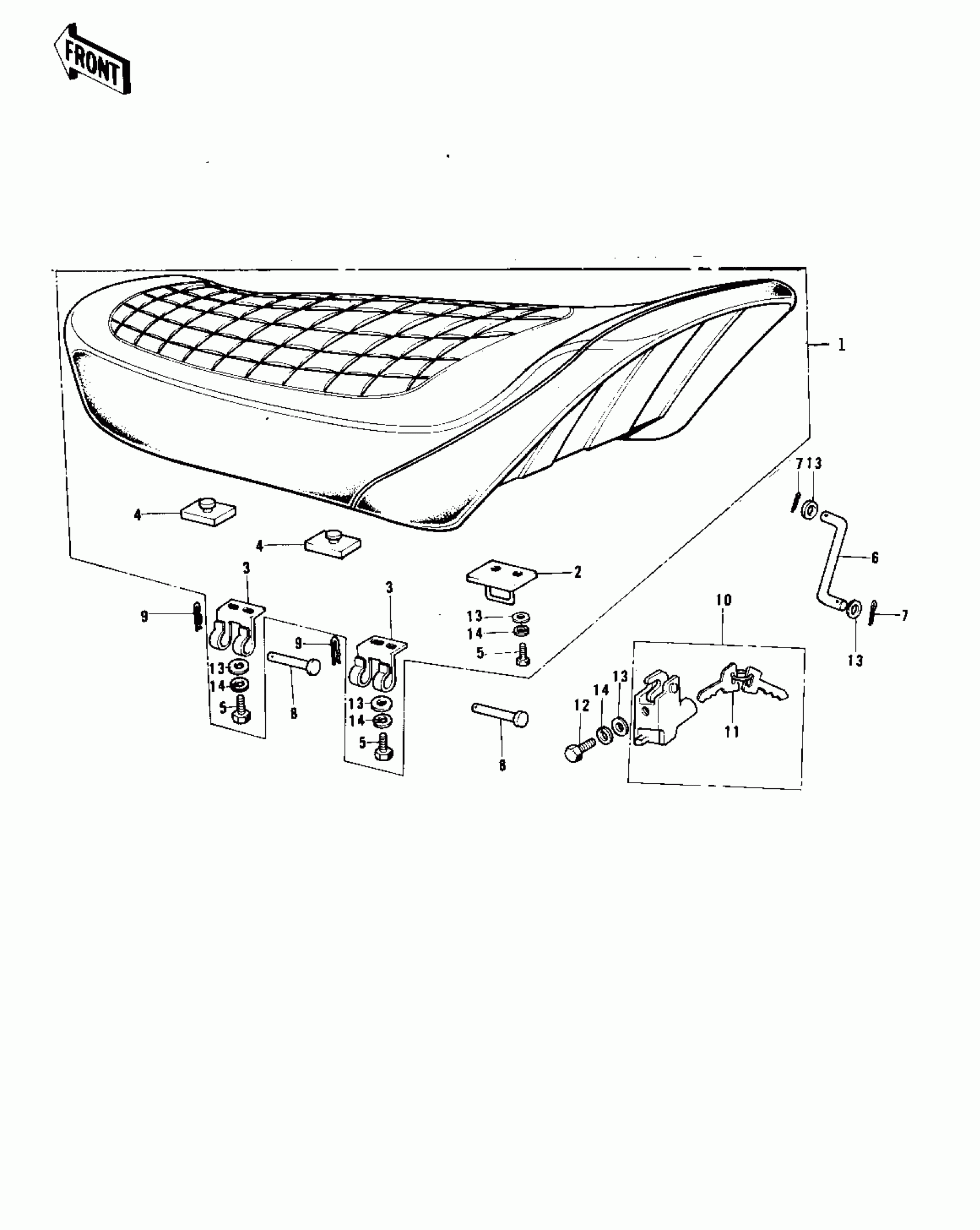

Kawasaki F11-B SEAT (F11-A/B) Diagram

#

Description

Price

1

SEAT ASSY,DUAL

53002-056

Unavailable

2

HOOK,SEAT

53008-021

Unavailable

3

HINGE,BLACK

53009-017-10

Unavailable

4

DAMPER

92075-099

Unavailable

5

BOLT-UPSET 6X14

112B0614

Unavailable

5

BOLT-UPSET 6X14

112B0614

Unavailable

6

STOPPER,SEAT

53054-008

Unavailable

7

PIN COTTER 2.0X15

550D2015

Unavailable

7

PIN,COTER

92041-006

Unavailable

8

PIN,6X48

53011-002

Unavailable

9

COTTER PIN

92041-003

Unavailable

10

LOCK ASSY,SEAT

53045-017

Unavailable

11

KEY SET,#421

27008-063-21

Unavailable

11

KEY SET,#422

27008-063-22

Unavailable

11

KEY SET,#423

27008-063-23

Unavailable

11

KEY SET,#424

27008-063-24

Unavailable

11

KEY SET,#425

27008-063-25

Unavailable

11

KEY SET,#426

27008-063-26

Unavailable

11

KEY SET,#427

27008-063-27

Unavailable

11

KEY SET,#428

27008-063-28

Unavailable

11

KEY SET,#429

27008-063-29

Unavailable

11

KEY SET,#430

27008-063-30

Unavailable

12

BOLT-UPSET,6X12

112G0612

Unavailable

13

WASHER PLAIN 6MM

411B0600

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable
