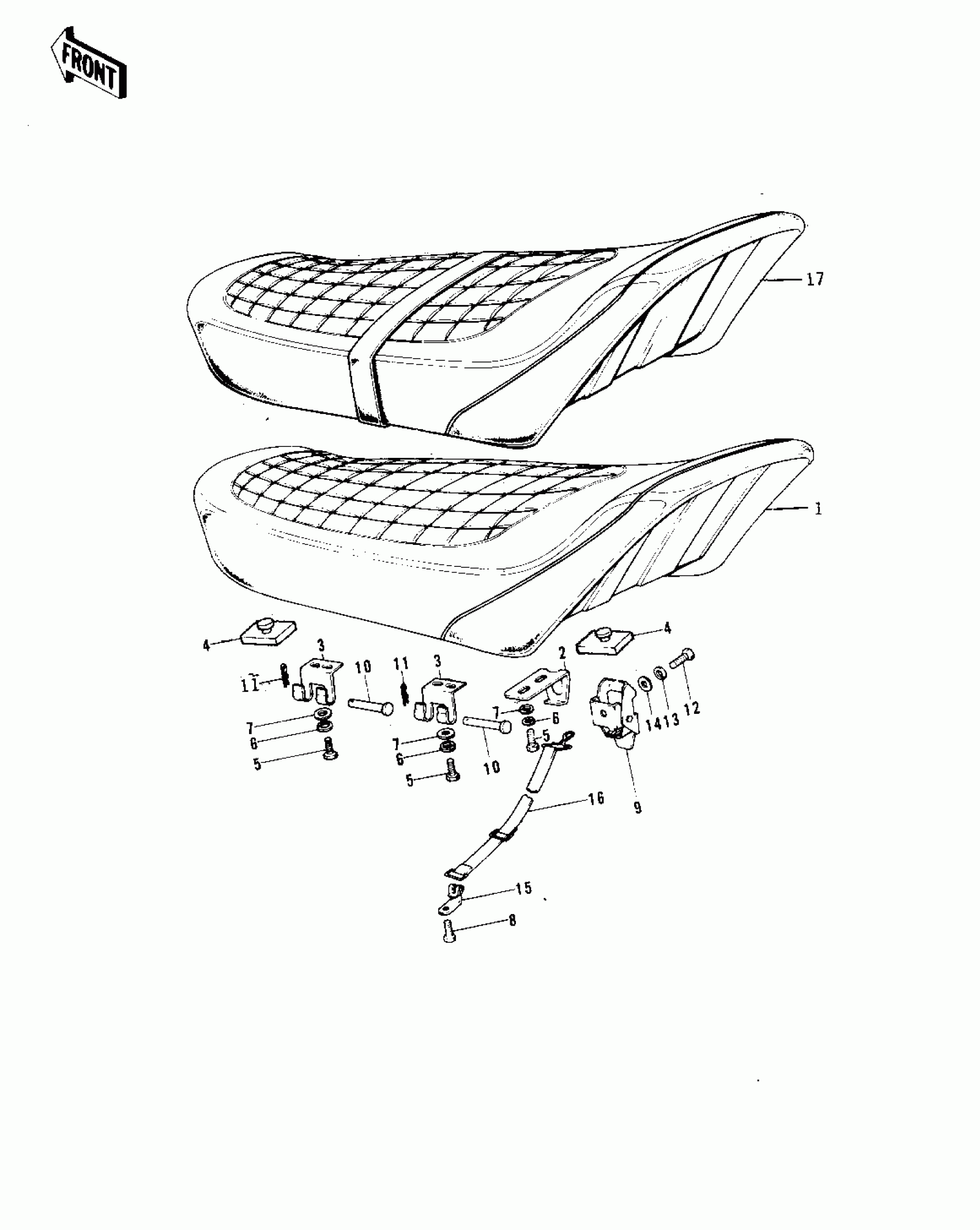

Kawasaki F11-B SEAT (F11) Diagram

#

Description

Price

1~8

SEAT ASSY-DUAL

53002-035

Unavailable

2

HOOK

53008-014

Unavailable

3

HINGE,BLACK

53009-017-10

Unavailable

4

DAMPER

92075-099

Unavailable

5

BOLT-UPSET,6X16

112G0616

Unavailable

5

BOLT-UPSET,6X16

112G0616

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER PLAIN 6MM

411B0600

Unavailable

8

BOLT-UPSET,6X20

112G0620

Unavailable

9

HOOK ASSY

53045-002

Unavailable

10

PIN,6X48

53011-002

Unavailable

11

COTTER PIN

92041-003

Unavailable

12

BOLT-UPSET,6X16

112G0616

Unavailable

12

BOLT-UPSET,6X16

112G0616

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER PLAIN 6MM

411B0600

Unavailable

15

CLAMP-SEAT BAND

92037-084

Unavailable

16

BAND-SEAT

92072-044

Unavailable

2~8,17

UNAVAILABLE IN PRICE BOOK

53002-038

Unavailable
