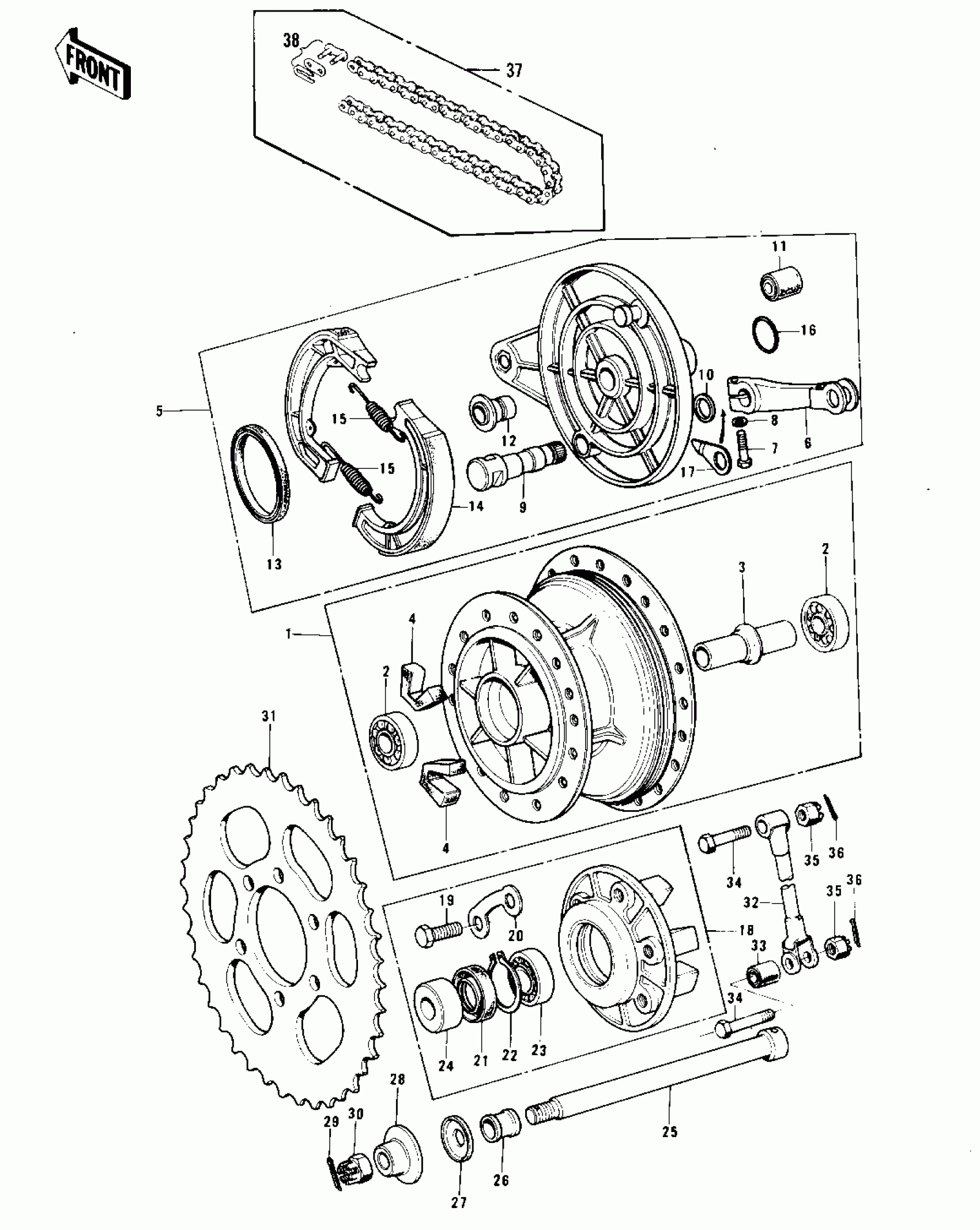

Kawasaki F11-B REAR HUB/BRAKE/CHAIN (F11-A/F11-B) Diagram
#
1
DRUM ASSY,RR BRK,BUF
42005-037-80
Unavailable
2
BEARING-BALL,#6203C3
601B6203
Unavailable
3
.SPACER,RR BRAKE DRUM
42010-025
Unavailable
4
.DAMPER-REAR HUB SHOC
42014-020
Unavailable
5
PANEL-ASY,RR BRK,BUF
42006-040-80
Unavailable
6
.LEVER-BRAKE CAM
42029-018
Unavailable
7
BOLT-UPSET
112G0625
Unavailable
8
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
9
CAMSHAFT,REAR BRAKE
42026-022
Unavailable
10
SEAL,BRAKE CAM
41051-001
Unavailable
11
.BUSH-RR BRK PEDAL RU
92092-008
Unavailable
12
.COLLAR-REAR HUB
42032-032
Unavailable
13
.OIL SEAL,#50656
657G506506
Unavailable
14
SHOE,BRAKE
42019-011
Unavailable
14
SHOE,BRAKE
42019-011
Unavailable
15
SPRING,BRAKE SHOE
42020-004
Unavailable
16
O RING,34MM
670B3034
Unavailable
17
.INDICATOR,FRONT BRAK
41085-010
Unavailable
18
COUPLING ASSY,RR BRK
42008-016
Unavailable
19
.BOLT-REAR SPROCKET
92001-109
Unavailable
20
WASHER LOCK
92088-007
Unavailable
21
.OIL SEAL,#32478
92050-061
Unavailable
22
RING-SNAP,47MM
92033-1042
Unavailable
22
RING-SNAP,47MM
92033-1042
Unavailable
23
BEARING-BALL,#6005C3
601B6005
Unavailable
24
.SLEEVE,COUPLING
42036-016
Unavailable
25
AXLE-REAR
42031-031
Unavailable
26
COLLAR-REAR AXLE,R.H
42032-035
Unavailable
27
DUST-SHIELD-CAM SHAF
41042-010
Unavailable
28
COLLAR,REAR AXLE,L.H
42032-045
Unavailable
29
PIN-COTTER,4.0X35
550D4035
Unavailable
30
NUT,16MM
92015-055
Unavailable
31
REAR SPROCKET 44T
42041-107
Unavailable
31
REAR SPROCKET 42T
42041-116
Unavailable
31
REAR SPROCKET 46T
42041-117
Unavailable
32
TORQUE LINK-REAR BRK
43007-030
Unavailable
33
.BUSH-RR BRK PEDAL RU
92092-008
Unavailable
34
BOLT-HEX HEAD,10X42
92003-085
Unavailable
35
NUT CASTLE 10MM
321B1000
Unavailable
36
PIN-COTTER,2.5X20
550D2520
Unavailable
37
UNAVAILABLE IN PRICE BOOK
92057-013
Unavailable
37
DR CHAIN 525X100
92057-037
Unavailable
38
CHAIN JOINT 525
92058-006
Unavailable
