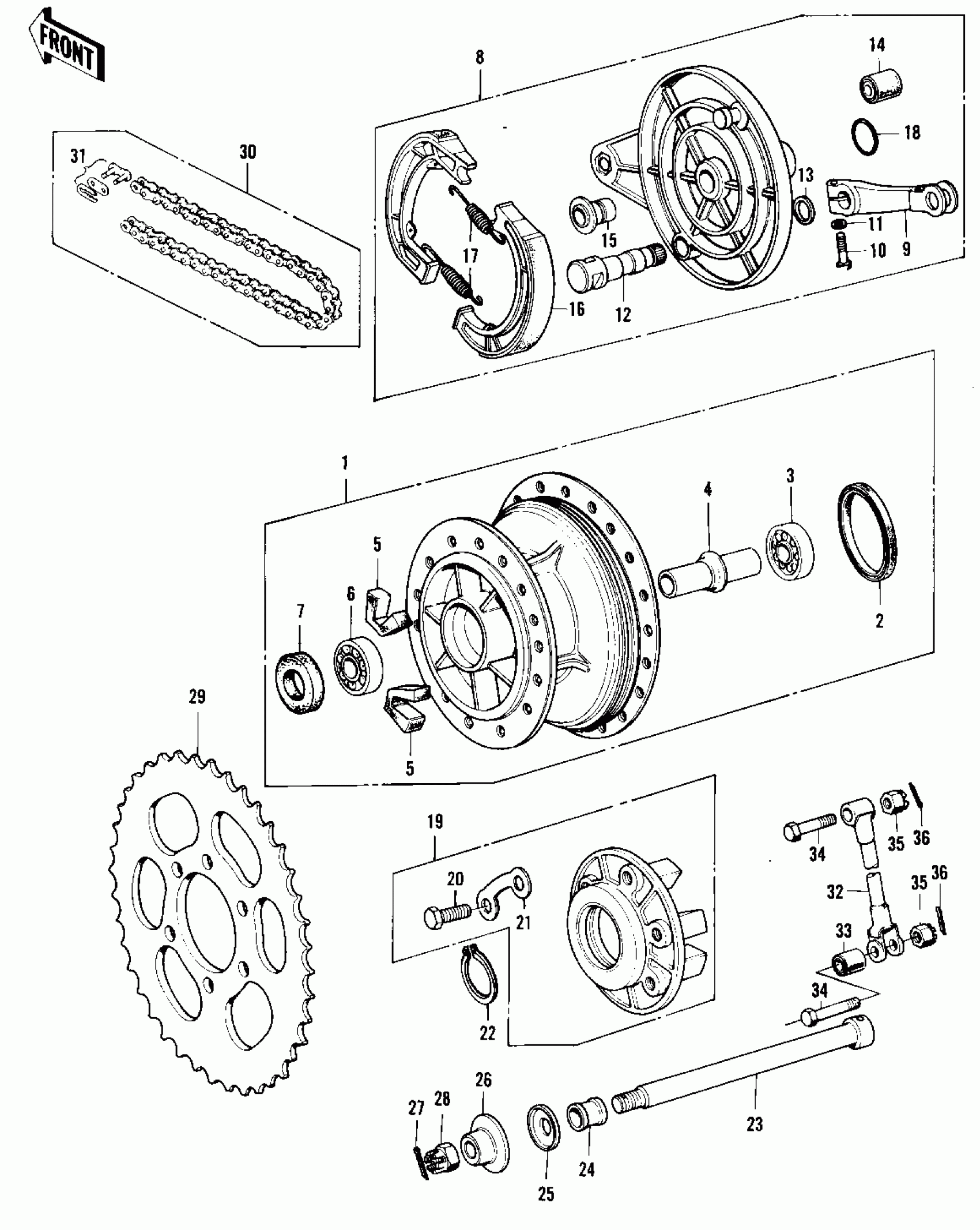

Kawasaki F11-B REAR HUB/BRAKE/CHAIN (F11) Diagram
#
1
DRUM ASY-RR BR,BUFF
42005-027-80
Unavailable
2
.OIL SEAL,#50656
657G506506
Unavailable
3
BEARING-BALL,#6203ZC3
601B6203Z
Unavailable
4
.SPACER,RR BRAKE DRUM
42010-025
Unavailable
5
.DAMPER-REAR HUB SHOC
42014-020
Unavailable
6
BEARING-BALL,#6203C3
601B6203
Unavailable
7
SEAL-OIL,COUPLING
92052-003
Unavailable
8
PANEL-ASY,RR BRK,BLK
42006-023-21
Unavailable
9
.LEVER-BRAKE CAM
42029-018
Unavailable
10
BOLT-UPSET
112G0625
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
CAMSHAFT,REAR BRAKE
42026-022
Unavailable
12
CAMSHAFT,REAR BRAKE
42026-022
Unavailable
13
SEAL,BRAKE CAM
41051-001
Unavailable
14
.BUSH-RR BRK PEDAL RU
92092-008
Unavailable
15
.COLLAR-REAR HUB
42032-032
Unavailable
16
SHOE,BRAKE
42019-011
Unavailable
16
SHOE,BRAKE
42019-011
Unavailable
17
SPRING,BRAKE SHOE
42020-004
Unavailable
18
O RING,34MM
670B3034
Unavailable
19
COUPLING ASSY,RR-BLK
42008-011-21
Unavailable
20
.BOLT-REAR SPROCKET
92001-109
Unavailable
21
WASHER LOCK
92088-007
Unavailable
22
.CIRCLIP,52MM
480J5200
Unavailable
23
AXLE-REAR
42031-031
Unavailable
24
COLLAR-REAR AXLE,R.H
42032-035
Unavailable
25
DUST-SHIELD-CAM SHAF
41042-010
Unavailable
26
COLLAR-REAR AXLE,L.H
42032-034
Unavailable
27
PIN-COTTER,4.0X35
550D4035
Unavailable
28
NUT,16MM
92015-055
Unavailable
29
REAR SPROCKET 44T
42041-107
Unavailable
29
REAR SPROCKET 42T
42041-116
Unavailable
29
REAR SPROCKET 46T
42041-117
Unavailable
30
UNAVAILABLE IN PRICE BOOK
92057-013
Unavailable
30
DR CHAIN 525X100
92057-037
Unavailable
31
CHAIN JOINT 525
92058-006
Unavailable
32
TORQUE LINK-REAR BRK
43007-030
Unavailable
33
.BUSH-RR BRK PEDAL RU
92092-008
Unavailable
34
BOLT-HEX HEAD,10X42
92003-085
Unavailable
35
NUT CASTLE 10MM
321B1000
Unavailable
36
PIN-COTTER,2.5X20
550D2520
Unavailable
