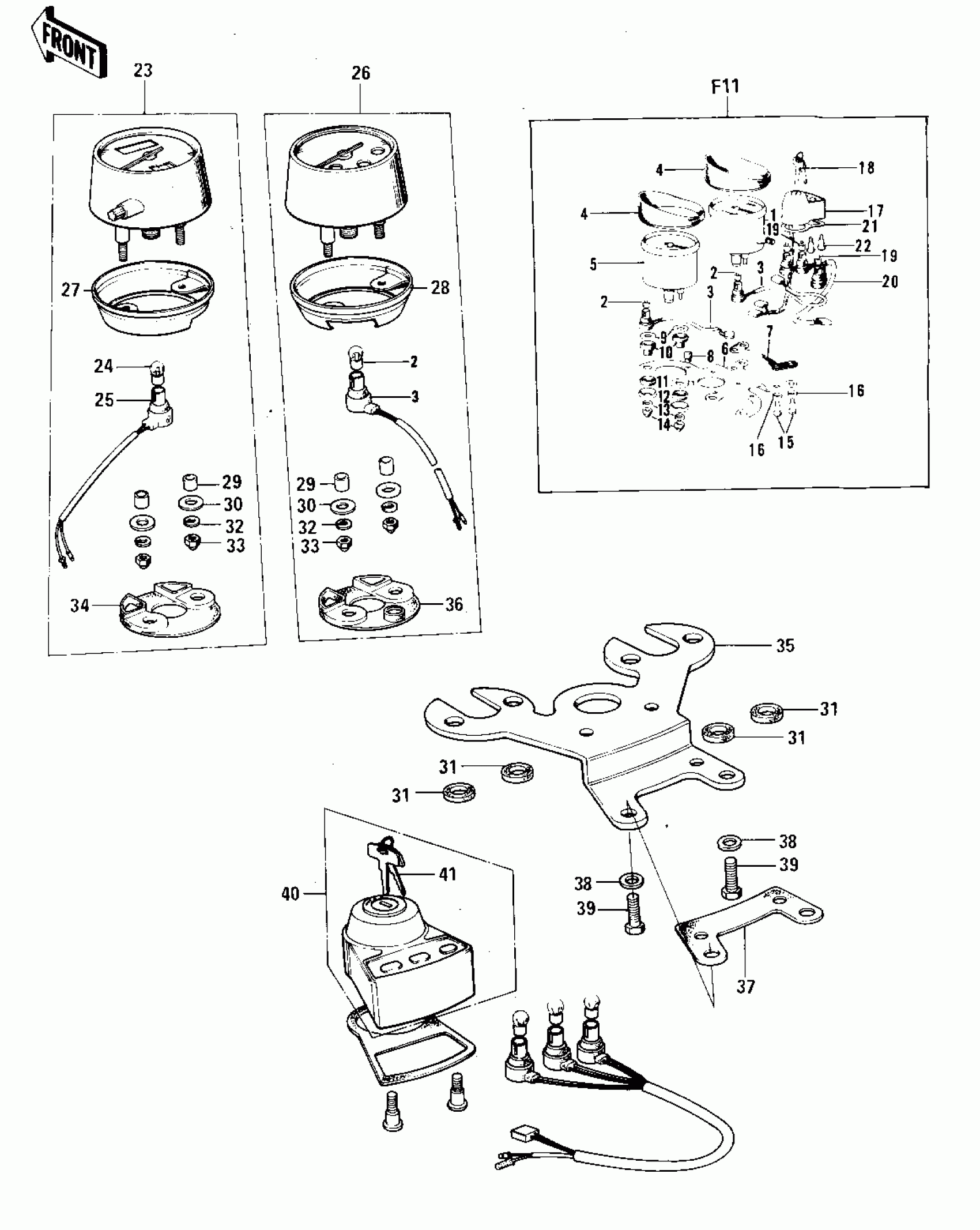

Kawasaki F11-B METERS/IGNITION SWITCH Diagram
#
1~4
SPEEDOMETER ASSY MPH
25001-055
Unavailable
2
BULB,6V 3W,CLEAR
92069-053
Unavailable
3
SOCKET-SPEEDOMETER
25011-024
Unavailable
4
COVER-SPEEDOMETER
25012-003
Unavailable
2~5
TACHOMETER ASSY
25015-021
Unavailable
6
BRACKET-METER
25008-022
Unavailable
7
SHOCK DAMPER
25019-011
Unavailable
8
DAMPER
92075-035
Unavailable
9
WASHER,8.5X20X1.6
92022-1561
Unavailable
10
DAMPER RUBBER
92075-143
Unavailable
11
DAMPER RUBBER
92075-066
Unavailable
12
WASHER,5.2X18X1.2
92022-285
Unavailable
13
WASHER SPRING 5MM
461F0500
Unavailable
14
NUT-CAP,5MM
322N0500
Unavailable
15
BOLT-HEX HEAD
92001-116
Unavailable
16
WASHER PLAIN 10MM
410B1000
Unavailable
17, 18
SWITCH ASSY,IGNITION
27005-070
Unavailable
18
KEY SET,#175
27008-047-75
Unavailable
18
KEY SET,#276
27008-047-76
Unavailable
18
KEY SET,#177
27008-047-77
Unavailable
18
KEY SET,#178
27008-047-78
Unavailable
18
KEY SET,#179
27008-047-79
Unavailable
18
KEY SET,#180
27008-047-80
Unavailable
19
BULB,6V 1.7W
92069-024
Unavailable
20
SOCKET-IGNITION SW
27024-003
Unavailable
21
DAMPER RUBBER-SWITCH
27025-001
Unavailable
22
SCREW-PAN HEAD,6MM
92011-026
Unavailable
23
SPEEDOMETER ASSY,MPH
25005-098
Unavailable
24
BULB,6V 3W,CLEAR
92069-053
Unavailable
25
SOCKET,METER
25010-016
Unavailable
26
TACHOMETER ASSY
25016-025
Unavailable
27
COVER-SPEEDOMETER
25012-017
Unavailable
28
COVER,TACHOMETER
25012-018
Unavailable
29
COLLAR,METER FITTING
25021-004
Unavailable
30
WASHER,5.2X18X1.2
92022-285
Unavailable
31
DAMPER RUBBER,METER
25019-019
Unavailable
32
WASHER SPRING 5MM
461F0500
Unavailable
33
NUT-CAP,5MM
322N0500
Unavailable
34
SHOCK DAMPER,METER
25019-018
Unavailable
35
BRACKET,METER
25008-035
Unavailable
36
DAMPER RUBBER,METER
25019-020
Unavailable
37
SHOCK DAMPER
25019-011
Unavailable
38
WASHER PLAIN 10MM
410B1000
Unavailable
39
BOLT-HEX HEAD
92001-116
Unavailable
40
SWITCH ASSY,IGNITION
27005-070
Unavailable
41
KEY SET,#421
27008-063-21
Unavailable
41
KEY SET,#422
27008-063-22
Unavailable
41
KEY SET,#423
27008-063-23
Unavailable
41
KEY SET,#424
27008-063-24
Unavailable
41
KEY SET,#425
27008-063-25
Unavailable
41
KEY SET,#426
27008-063-26
Unavailable
41
KEY SET,#427
27008-063-27
Unavailable
41
KEY SET,#428
27008-063-28
Unavailable
41
KEY SET,#429
27008-063-29
Unavailable
41
KEY SET,#430
27008-063-30
Unavailable
42
KEY-LOCK,BLANK
27008-1024
Unavailable
42
KEY-LOCK,BLANK
27008-1025
Unavailable
42
KEY,BLANK
27008-1026
Unavailable
42
KEY,BLANK
27008-1027
Unavailable
