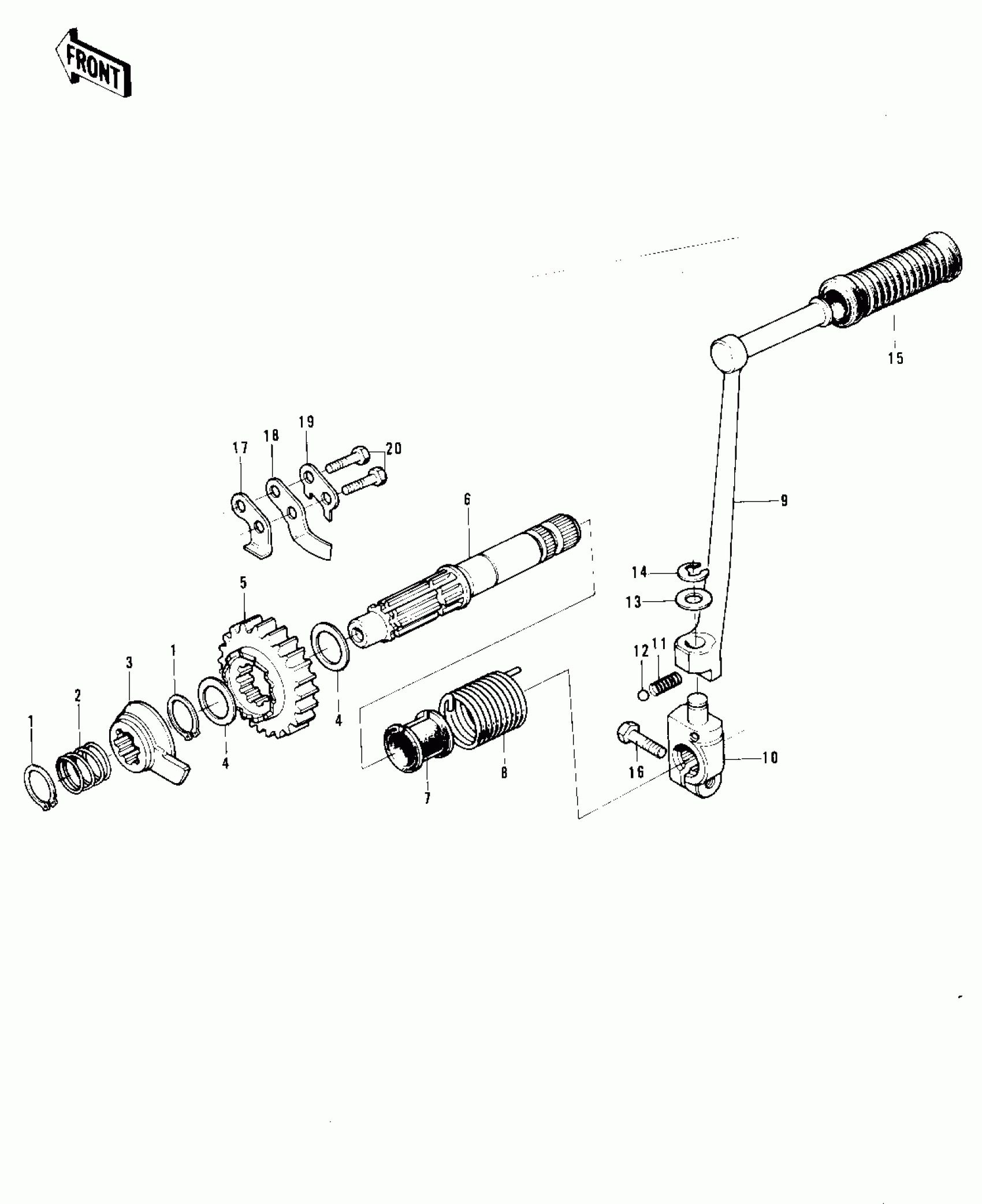

Kawasaki F11-B KICKSTARTER MECHANISM ('73-'75 F11/F11-A Diagram

#

Description

Price

1

RING-SNAP,24MM

92033-026

Unavailable

2

SPRING

92081-097

Unavailable

3

RATCHET

13078-005

Unavailable

3

RATCHET

13078-007

Unavailable

4

WASHER,25.3X30X0.5

92022-159

Unavailable

5

GEAR-KICKSTARTER

13068-025

Unavailable

6

SHAFT-KICKSTARTER

13066-027

Unavailable

6

SHAFT,KICKSTARTER

13066-041

Unavailable

7

GUIDE-KICK SPRING

13070-004

Unavailable

8

SPRING,KICKSTARTER

92082-003

Unavailable

9~14

F11PEDAL ASSY,KICK

13064-017

Unavailable

9~14

F11PEDAL ASSY,KICK

13064-017

Unavailable

10

BOSS-KICK PEDAL

13061-014

Unavailable

11

SPRING,KICK PEDAL

92081-020

Unavailable

12

BALL-STEEL,1/4

600A0800

Unavailable

13

WASHER BRAKE PEDAL

92022-085

Unavailable

13

WASHER,PLAIN

92022-277

Unavailable

14

CIRCLIP-TYPE-E,10MM

482J0100

Unavailable

15

DAMPER,KICK PEDAL

13063-004

Unavailable

16

BOLT-HEX HEAD,10X25

114B1025

Unavailable

17

STOPPER-KICKSTARTER

13072-001

Unavailable

18

GUIDE-KICKSTARTER

13206-007

Unavailable

19

WASHER-LOCK

92024-036

Unavailable

20

BOLT-UPSET,6X16

112G0616

Unavailable
