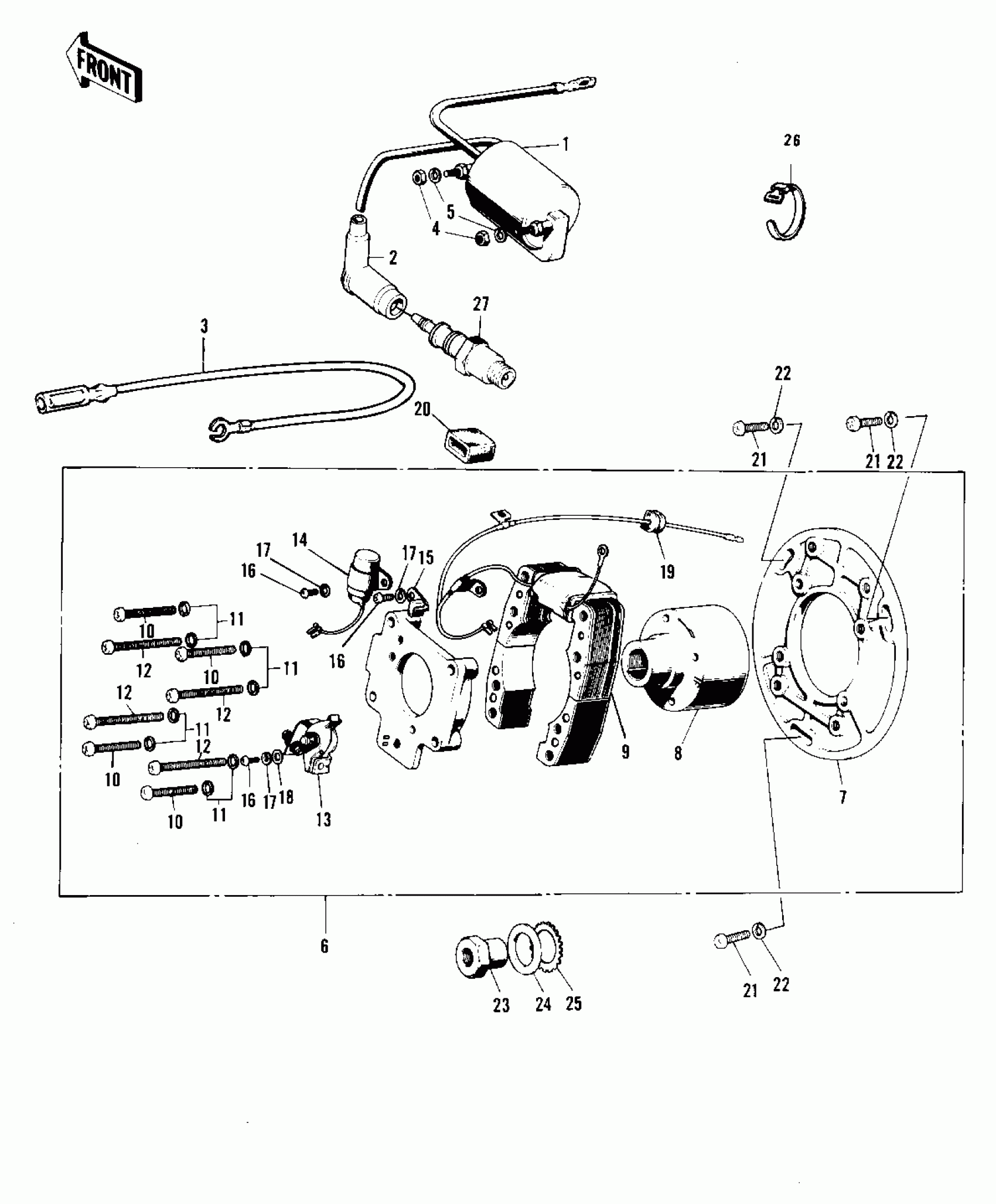

Kawasaki F11-B IGNITION Diagram
#
Description
Price
1
COIL-IGNITION
21121-042
Unavailable
2
CAP,SPARK PLUG
21130-021
Unavailable
3
WIRE IGNITION LEAD
26011-014
Unavailable
4
NUT,6MM
92019-019
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
MAGNETO ASSY
21002-024
Unavailable
7
.BASE-MAGNETO
21048-012
Unavailable
8
.ROTOR
21007-019
Unavailable
9
.COIL-PRIMARY
21049-014
Unavailable
10
SCREW-PAN-CROS
220B0535
Unavailable
11
WASHER SPRING 5MM
461F0500
Unavailable
12
SCREW PAN HEAD 5X55
220B0555A
Unavailable
13
BREAKER-CONTACT
21008-019
Unavailable
14
.CONDENSER
21013-024
Unavailable
15
BRUSH,OIL
21019-005
Unavailable
15
BRUSH,OIL
21019-005
Unavailable
16
SCREW PAN HEAD 4X8
21085-004
Unavailable
16
SCREW PAN HEAD 4X8
220B0408
Unavailable
17
WASHER SPRING 4MM
461F0400
Unavailable
18
WASHER PLAIN 4MM
410B0400
Unavailable
19
GROMMET WIRING HARN C
21017-005
Unavailable
20
GROMMET
92071-048
Unavailable
21
SCREW-PAN-CROS
220B0520
Unavailable
22
WASHER PLAIN 5MM
410B0500
Unavailable
23
NUT, 14MM
92015-048
Unavailable
24
WASHER-PLAIN,18MM
92022-184
Unavailable
25
WASHER LOCK 18MM
463G1800
Unavailable
26
BAND RUBBER
92072-013
Unavailable
27
Roadster Spyder RT-LTD (SE6), Cognac | North America
B9EV
Unavailable
27
Roadster Spyder RT-LTD (SE6), Cognac | North America
B9EV
Unavailable
