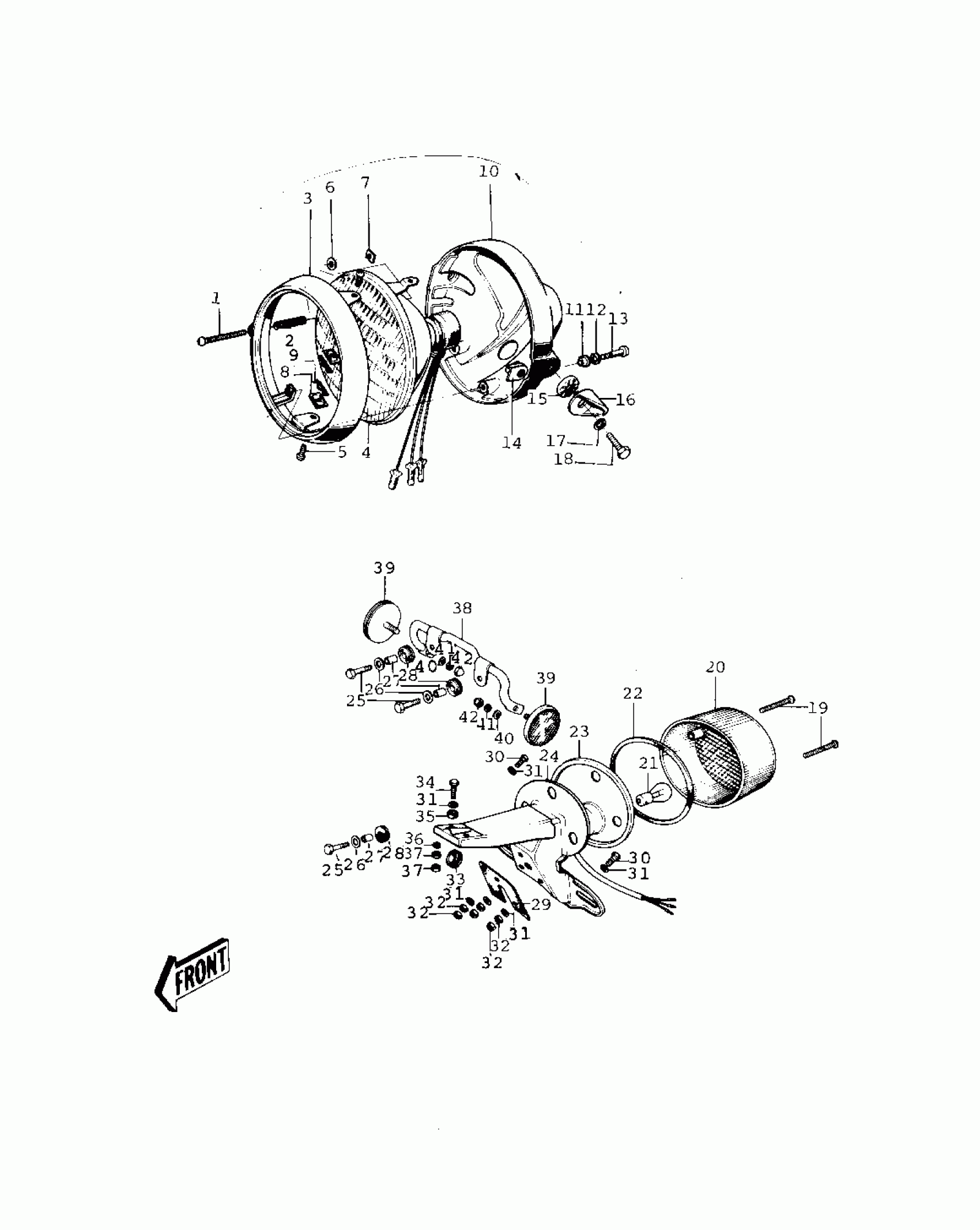

Kawasaki F11-B HEADLIGHT/TAILLIGHT Diagram
#
1~9
LAMP UNIT-HEAD
23003-015
Unavailable
1
SCREW,FOCUS ADJUSTING
23019-021
Unavailable
2
SPRING,FOCUS ADJUSTING
23014-005
Unavailable
3
RIM-HEAD LAMP
23006-028
Unavailable
4
LENS UNIT-HEAD LAMP
23007-032
Unavailable
5
SCREW LENS UNIT FITT
23019-018
Unavailable
6
WASHER,4.1X8X0.8
23021-004
Unavailable
7
NUT
23020-016
Unavailable
8
NUT LENS UNIT FITTING
23020-009
Unavailable
9
PIN LENS UNIT FITTING
23022-001
Unavailable
10
BODY-HEAD LAMP,BLACK
23005-034-10
Unavailable
11
WASHER
23021-010
Unavailable
12
WASHER SPRING 5MM
461F0500
Unavailable
13
SCREW,5MM
92011-024
Unavailable
14
NUT
23020-017
Unavailable
15
WASHER-LOCK
23021-011
Unavailable
16
DAMPER RUBBER
92075-134
Unavailable
17
WASHER SPRING 10MM
461F1000
Unavailable
18
BOLT,10X35
92007-024
Unavailable
19~28
LAMP ASSY-TAIL BLACK
23024-021-21
Unavailable
19
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
20
LENS-TAIL LAMP
23026-023
Unavailable
21
BULB,6V 17/5.3W
92069-028
Unavailable
22
GASKET-TAIL LAMP LENS
23028-018
Unavailable
23
CASE,TAIL LAMP
23027-030
Unavailable
24
BKT-LICENSE PLT,BLAC
23036-018-21
Unavailable
25
BOLT-UPSET,6X20
112G0620
Unavailable
26
WASHER,6.5X20X1.6
92022-125
Unavailable
27
COLLAR,6.8X10X8.5
92027-129
Unavailable
28
DAMPER RUBBER
92075-076
Unavailable
29
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
30
BOLT-UPSET
112G0630
Unavailable
31
WASHER,6.5X20X1.6
92022-125
Unavailable
32
NUT 6MM
312B0600
Unavailable
33
GROMMET,10MM
92071-019
Unavailable
34
BOLT 6X22
112B0622
Unavailable
35
DAMPER RUBBER-TAIL L
92075-151
Unavailable
36
WASHER PLAIN 6MM
411B0600
Unavailable
37
NUT 6MM
311B0600
Unavailable
38
BRACKET-REFLECTOR
28013-005
Unavailable
39
REFLECTOR-REFLEX,REAR
28012-008
Unavailable
40
WASHER-PLAIN,5MM
411B0500
Unavailable
41
WASHER SPRING 5MM
461F0500
Unavailable
42
NUT-CAP,5MM
322N0500
Unavailable
