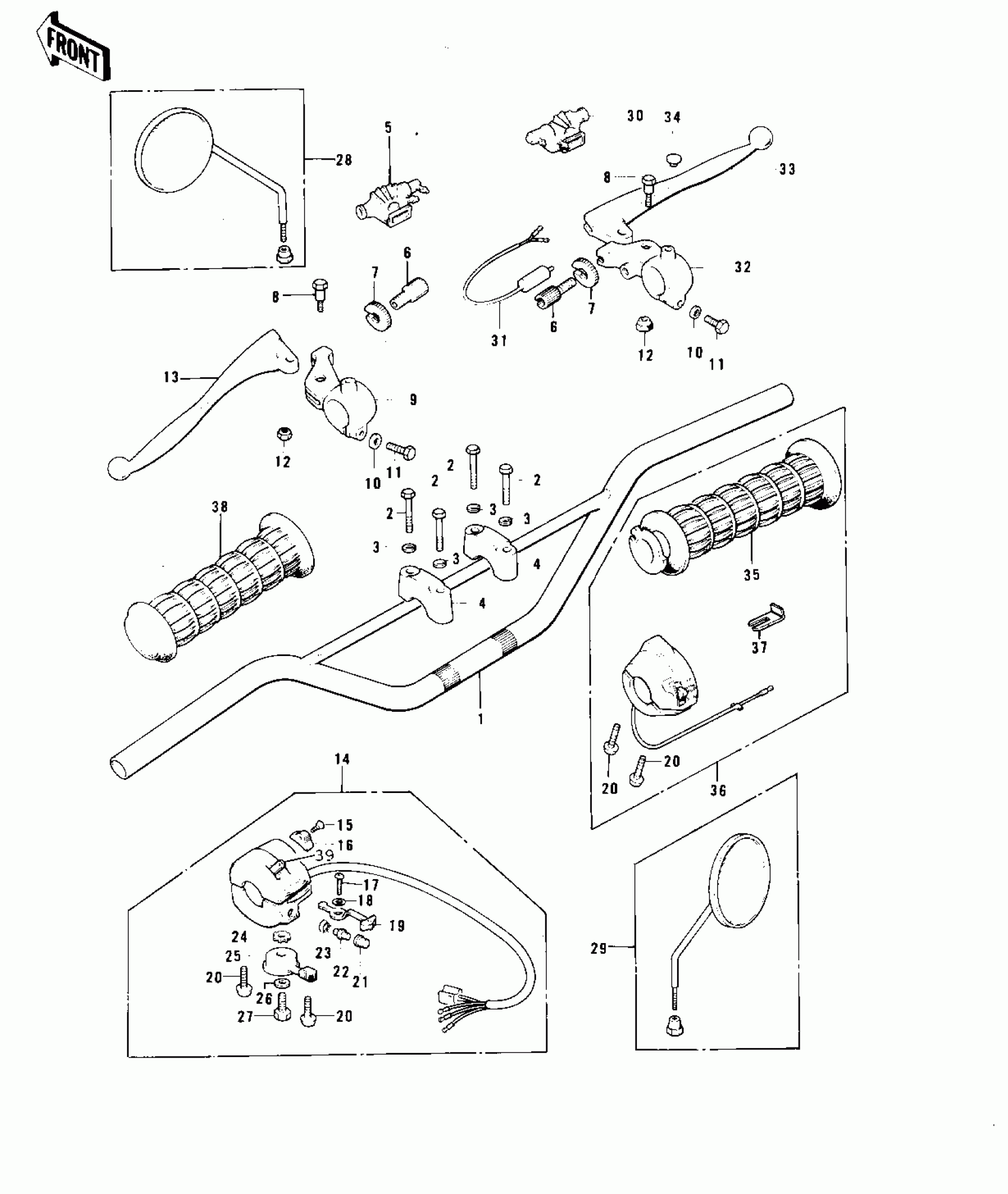

Kawasaki F11-B HANDLEBAR (F11-B) Diagram
#
1
HANDLEBAR
46004-019
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
BOOT,LEVER HOLDER
49006-1017
Unavailable
6
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
7
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
8
BOLT,5X22
92007-046
Unavailable
9
HOLDER,F.BLACK
46094-011-21
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
BOLT HEX HEAD 6X25
110N0625
Unavailable
12
NUT,LOCK,5MM
92019-014
Unavailable
13
LEVER-GRIP,CLUTCH
46092-015
Unavailable
14
CASE ASSY,L.H,BLACK
46091-029-21
Unavailable
15,16,
L.H GRIP SWITCH KIT
99990-531
Unavailable
15
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
16
KNOB-L.H SWITCH
46044-011
Unavailable
17
SCREW PAN HEAD 3X5
220B0305A
Unavailable
18
WASHER
92095-010
Unavailable
19
KNOB-SWITCH
46044-012
Unavailable
20
SCREW-PAN-CROS,5X25
220B0525
Unavailable
21
SWITCH,PUSH BUTTON
27010-1009
Unavailable
22
SWITCH,PUSH BUTTON
27010-1009
Unavailable
23
SWITCH,PUSH BUTTON
27010-1009
Unavailable
24
WASHER LOCK
92095-012
Unavailable
25
LEVER STARTER
46096-008-10
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
BOLT,6X10
112G0610
Unavailable
28
MIRROR-ASSY,LH
56003-009
Unavailable
29
MIRROR-ASSY,RH
56002-020
Unavailable
30
BOOT,LEVER HOLDER
49006-1017
Unavailable
31
SWITCH-FR BRAKE LAMP
27021-005
Unavailable
32
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
33
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
34
CAP-RR VIEW MIRROR
92102-009
Unavailable
35
GRIP ASSY-THROTTLE
46019-022
Unavailable
36
CASE ASSY,R.H. BLACK
46018-037-21
Unavailable
37
HOLDER,CONTROL CABLE
46037-023
Unavailable
38
RUBBER-L.H GRIP
46075-019
Unavailable
39
SWITCH ASSY,L.H
46089-015
Unavailable
