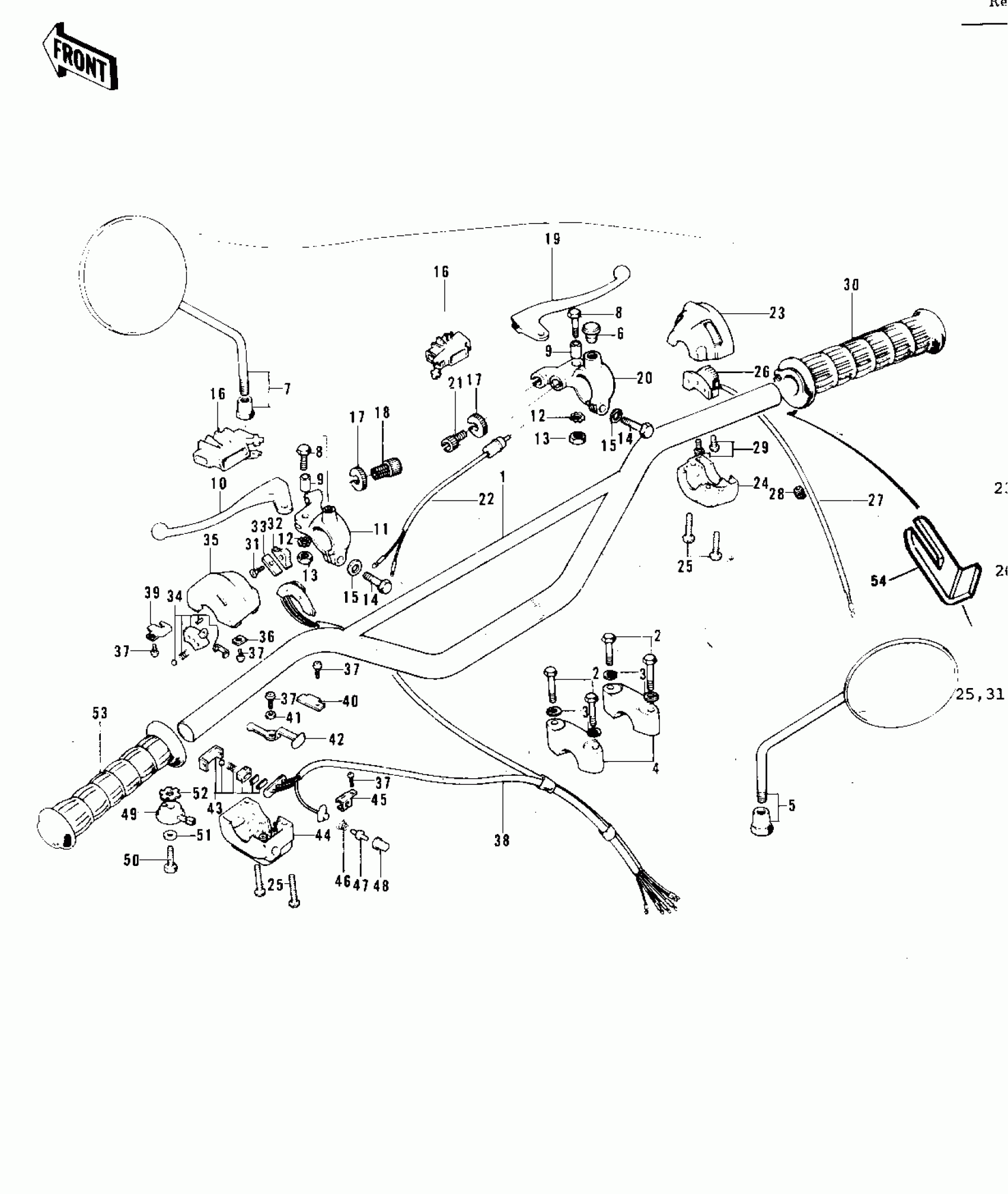

Kawasaki F11-B HANDLEBAR (F11-A) Diagram
#
1
HANDLEBAR
46004-019
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
MIRROR-ASSY,RH
56002-020
Unavailable
6
CAP-RR VIEW MIRROR
92102-009
Unavailable
7
MIRROR-ASSY,LH
56003-009
Unavailable
8
BOLT HEX HEAD 5X20
92007-020
Unavailable
9
COLLAR LEVER
46059-011
Unavailable
10
LEVER-GRIP,CLUTCH
46092-015
Unavailable
11
HOLDER,F.BLACK
46094-011-21
Unavailable
12
WASHER LOCK 5MM
464H0500
Unavailable
13
NUT-HEX,5MM
312B0500
Unavailable
14
BOLT HEX HEAD 6X25
110N0625
Unavailable
15
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
16
DUST COVER
46071-002
Unavailable
17
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
18
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
19
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
20
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
21
SCREW,CABLE ADJUST
46055-010
Unavailable
22
SWITCH-FR BRAKE LAMP
27021-005
Unavailable
23~30
CASE ASSY-R.H,F.BLAC
46018-023-21
Unavailable
23
CASE-R.H UPPER,BLACK
46041-009-21
Unavailable
24
CASE-R.H LOWER,BLACK
46023-009-21
Unavailable
25
SCREW PAN HEAD 5X22
220B0522
Unavailable
26~28
SWITCH ASSY-ENG STOP
46027-010
Unavailable
26
SWITCH-ENGINE STOP
46028-004
Unavailable
27
WIRING HARNESS-STP S
46082-024
Unavailable
28
GROMMET-WIRING HARNES
92071-060
Unavailable
29
SCREW-PAN-CROS,3X6
220B0306
Unavailable
30
GRIP ASSY-THROTTLE
46019-022
Unavailable
25,31~
CASE ASSY-L.H,F.BLAC
46091-011-21
Unavailable
31
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
32
KNOB-L.H SWITCH
46044-011
Unavailable
33
SPRING L.H SW KNOB
46031-003
Unavailable
34
SWITCH ASSY,L.H
46089-012
Unavailable
35
CASE-L.H UPPER,BLACK
46086-016-21
Unavailable
36
HOLDER-L.H SW UPPER,B
46085-019
Unavailable
37
SCREW-PAN-CROS,3X6
220B0306
Unavailable
38
WIRING HARNESS-L.H S
46082-025
Unavailable
39
HOLDER-LH SW UPPER,A
46085-020
Unavailable
40
HOLDER-L.H SW LOWER,A
46085-016
Unavailable
41
WASHER
92095-010
Unavailable
42
KNOB-SWITCH
46044-012
Unavailable
43
SLIDE BLOCK AY-L.H SW
46089-007
Unavailable
44
CASE-L.H LOWER,BLACK
46077-017-21
Unavailable
45
HOLDER-L.H SW LOWER,B
46085-017
Unavailable
46
SWITCH,PUSH BUTTON
27010-1009
Unavailable
47
SWITCH,PUSH BUTTON
27010-1009
Unavailable
48
SWITCH,PUSH BUTTON
27010-1009
Unavailable
49
LEVER STARTER
46096-008-10
Unavailable
50
BOLT HEX HEAD 6X8
110B0608
Unavailable
50
BOLT-UPSET,6X8
112B0608
Unavailable
51
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
52
WASHER LOCK
92095-012
Unavailable
53
RUBBER-L.H GRIP
46075-019
Unavailable
54
HOLDER,CONTROL CABLE
46037-023
Unavailable
