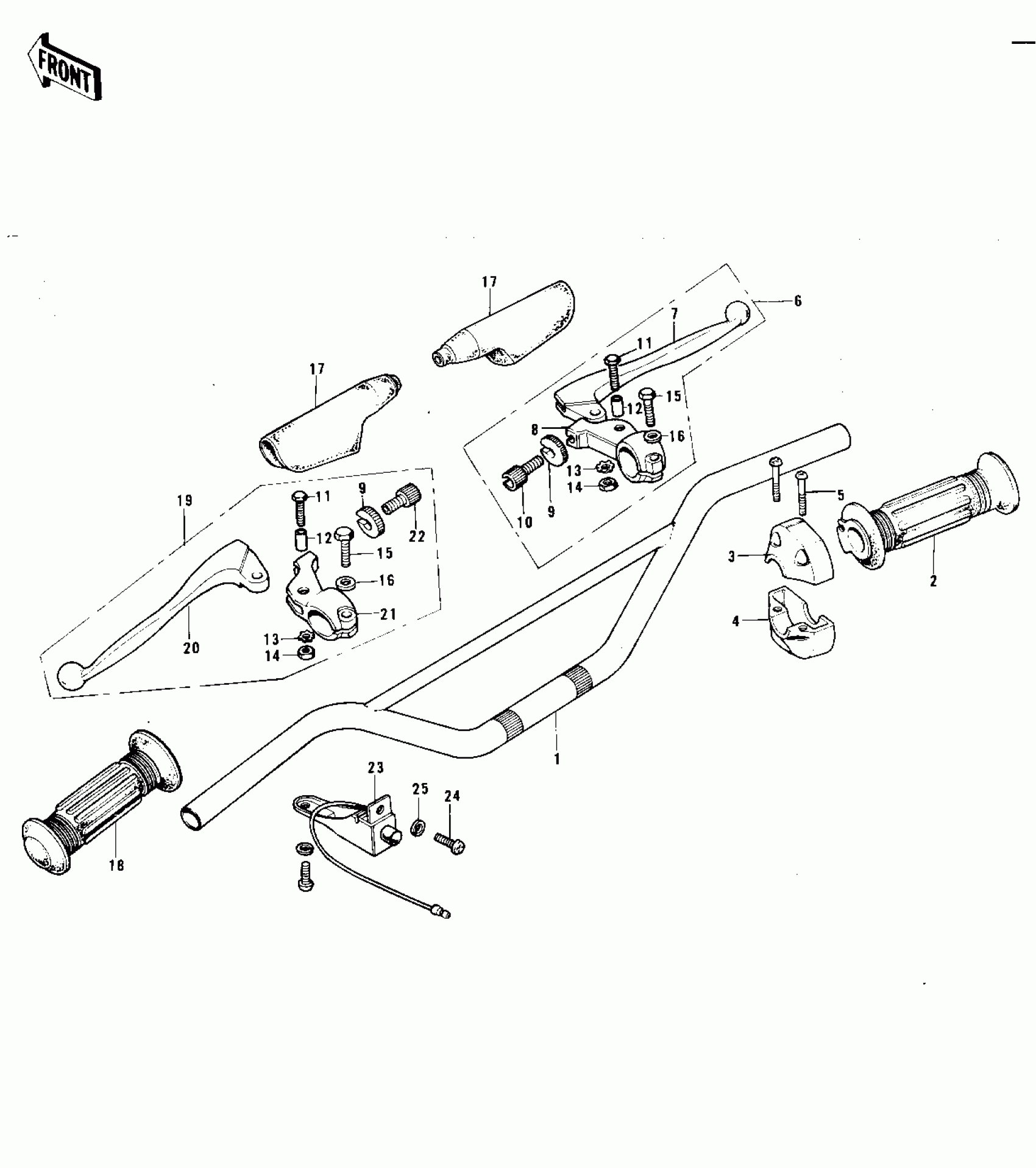

Kawasaki F11-B HANDLEBAR Diagram

#

Description

Price

1

UNAVAILABLE IN PRICE BOOK

46004-023

Unavailable

2

GRIP ASSY,THROTTLE

46019-028

Unavailable

3

CASE,R.H LOWER

46023-012

Unavailable

4

CASE,R H UPPER

46041-012

Unavailable

5

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable

6

LEVER ASSY,FRNT BRAK

46021-019

Unavailable

7

LEVER-GRIP,FRONT BRAKE

46058-004

Unavailable

8

HOLDER,FR BRAKE LEVER

46060-008

Unavailable

9

NUT,CABLE ADJUST LOCK,8MM

46056-005

Unavailable

10

SCREW,CABLE ADJUST

46055-010

Unavailable

11

BOLT HEX HEAD 5X20

92007-020

Unavailable

12

COLLAR LEVER

46059-011

Unavailable

13

WASHER LOCK 5MM

464H0500

Unavailable

14

NUT-HEX,5MM

312B0500

Unavailable

15

BOLT HEX HEAD 6X25

110N0625

Unavailable

16

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

17

DUST COVER

46071-003

Unavailable

18

RUBBER,L.H GRIP

46075-023

Unavailable

19

LEVER ASSY,CLUTCH

46076-029

Unavailable

20

LEVER-GRIP,CLUTCH

46092-015

Unavailable

21

HOLDER,CLUTCH LEVER

46094-010

Unavailable

22

SCREW,CABLE ADJUST,8MM

46055-003

Unavailable

23

SWITCH ASSY-ENG STOP

46027-006

Unavailable

24

SCREW-PAN-CROS,3X6

220B0306

Unavailable

25

WASHER SPRING 3MM

461F0300

Unavailable
