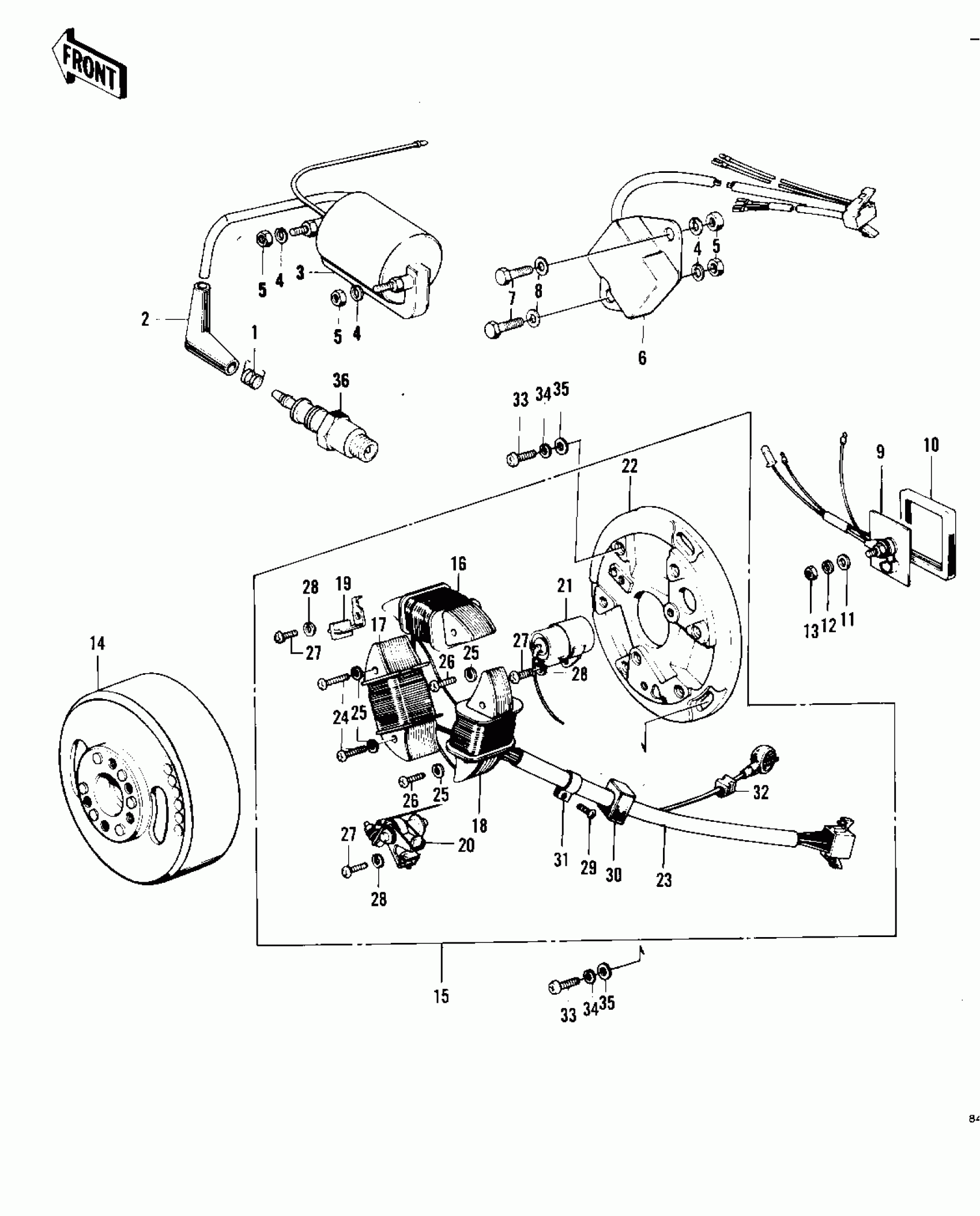

Kawasaki F11-B GENERATOR/RECTIFIER Diagram
#
1
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
2
CAP-SPARK PLUG
21130-009
Unavailable
3
COIL-IGNITION
21121-042
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
NUT 6MM
311B0600
Unavailable
6
REGULATOR
21066-016
Unavailable
7
BOLT-UPSET,6X12
112G0612
Unavailable
8
WASHER PLAIN 6MM
411B0600
Unavailable
9
RECTIFIER
21061-013
Unavailable
10
MAT-RECTIFIER
32103-020
Unavailable
11
WASHER PLAIN 5MM
410B0500
Unavailable
12
WASHER SPRING 5MM
461F0500
Unavailable
13
NUT-HEX
311B0500
Unavailable
14
FLYWHEEL
21050-013
Unavailable
15
STATOR ASSY
21003-017
Unavailable
16
.COIL-LIGHTING,A
21047-017
Unavailable
17
.COIL-LIGHTING B
21047-018
Unavailable
18
.COIL-PRIMARY
21049-015
Unavailable
19
BRUSH,OIL
21019-005
Unavailable
20
.BREAKER-CONTACT
21008-020
Unavailable
21
.~E/NO. 4999CONDENSER
21013-030
Unavailable
21
.~E/NO. 4999CONDENSER
21013-030
Unavailable
22
.BASE-MAGNETO
21048-009
Unavailable
23
.WIRING HARNESS-MAIN
21029-023
Unavailable
24
SCREW PAN HEAD 5X30
220B0530
Unavailable
25
WASHER SPRING 5MM
461F0500
Unavailable
26
SCREW-PAN-CROS,5X25
220B0525
Unavailable
27
SCREW PAN HEAD 4X10
220B0410
Unavailable
28
WASHER SPRING 4MM
461F0400
Unavailable
29
SCREW PAN HEAD 4X6
220B0406
Unavailable
30
GROMMET-WIRING HARN
92071-050
Unavailable
31
CLAMP,WIRING HARNESS
21037-002
Unavailable
32
GROMMET WIRING HARN C
21017-005
Unavailable
33
SCREW-PAN-CROS
220B0520
Unavailable
34
WASHER SPRING 5MM
461F0500
Unavailable
35
WASHER PLAIN 5MM
410B0500
Unavailable
36
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
36
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
36
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
