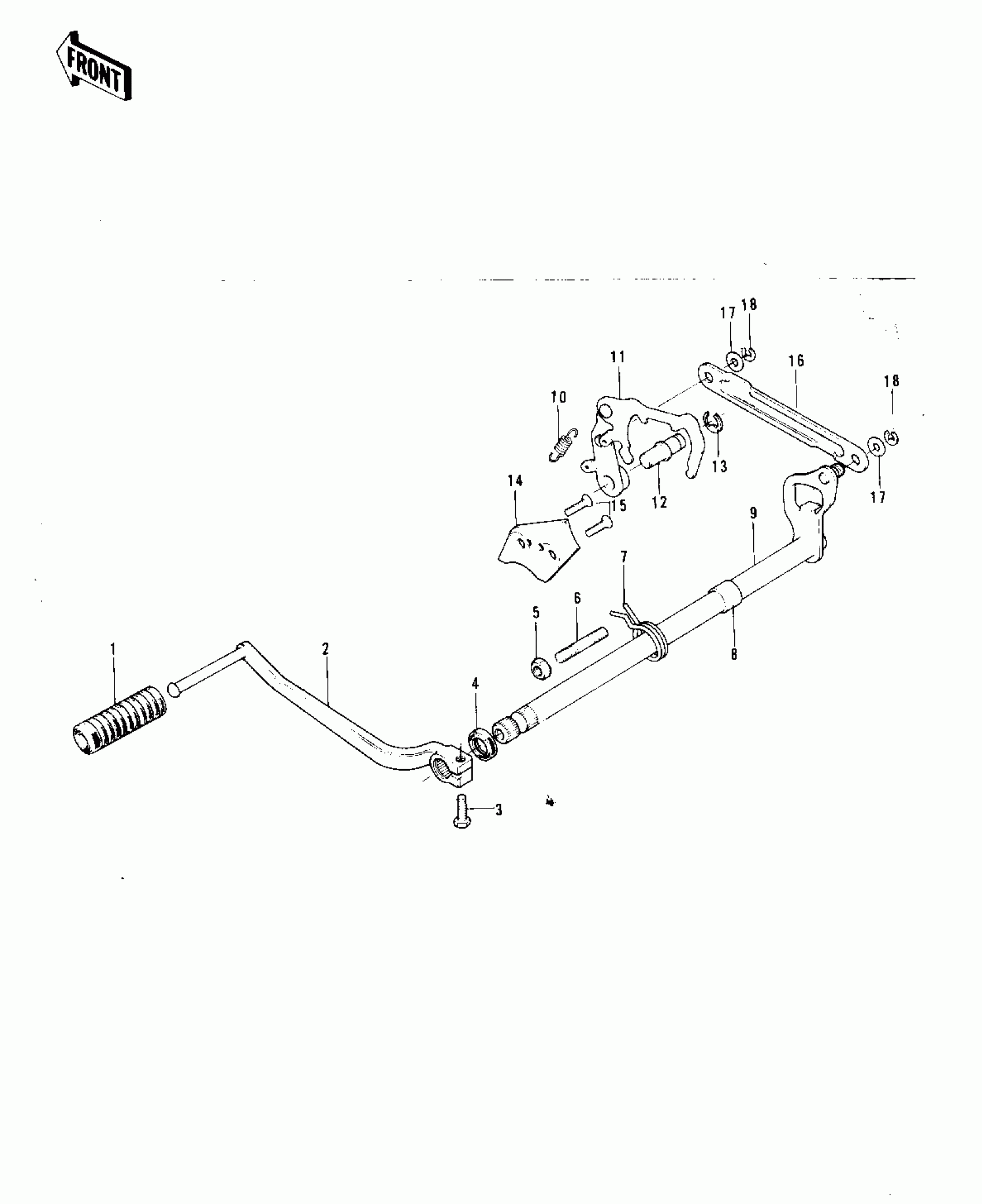

Kawasaki F11-B GEAR CHANGE MECHANISM ('73 F11M) Diagram

#

Description

Price

1

DAMPER,CHANGE PEDAL

13157-004

Unavailable

2

PEDAL, GEAR CHANGE

13156-044

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

SEAL-OIL,TB12205.5

92049-1271

Unavailable

5

NUT 6MM

312B0600

Unavailable

6

BOLT,RETURN SPRING

92001-1401

Unavailable

7

SPRING,CHG PEDL RTN

92083-021

Unavailable

8

COLLAR,12X18X11.5

92027-121

Unavailable

9

SHAFT ASSY-CHNG PEDA

13172-002

Unavailable

10

SPRING-CHANG LEVER

92081-101

Unavailable

11

LEVER ASSY GEAR CHNG

13161-027

Unavailable

12

PIN-CHANGE LEVER

92043-077

Unavailable

13

CIRCLIP 8MM

482J8000

Unavailable

14

PLATE-CHNG DRUM POTO

13169-008

Unavailable

15

SCREW-CSK-CROS,6X14

221B0614

Unavailable

16

CONNECTOR

13159-011

Unavailable

17

WASHER-PLAIN

92022-201

Unavailable

18

CIRCLIP-TYPE-E,6MM

482J6000

Unavailable
