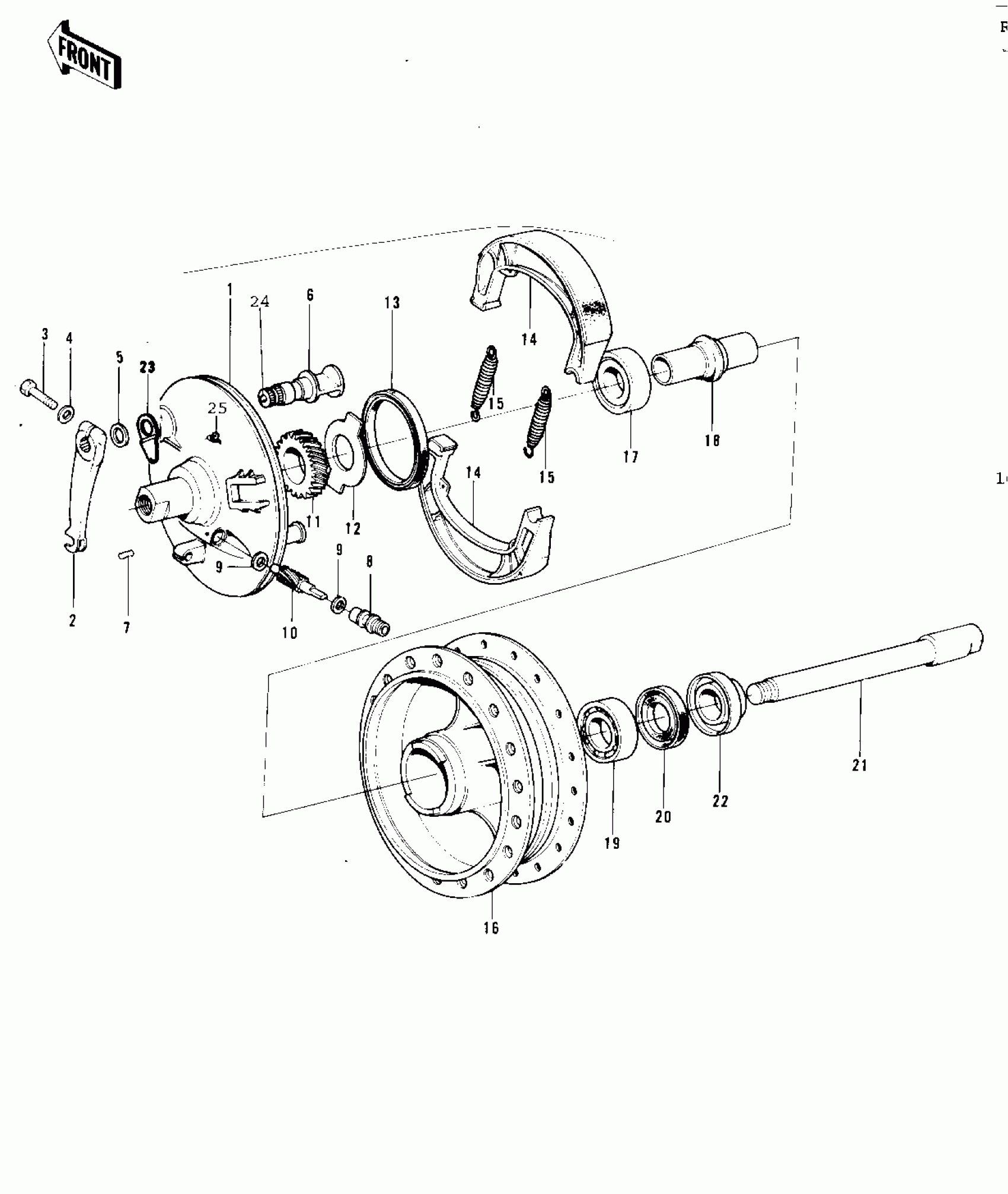

Kawasaki F11-B FRONT HUB/BRAKE ('73-'75 F11/F11-A/F11-B Diagram
#
Description
Price
1~15
PANEL-ASY,FR BRK BLK
41035-038-21
Unavailable
1~15
PANEL-ASY,FR BRK BUF
41035-045-80
Unavailable
2
LEVER-BRAKE CAM
41053-017
Unavailable
3
BOLT-UPSET
112G0625
Unavailable
3
BOLT-UPSET
112G0625
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
5
SEAL,BRAKE CAM
41051-001
Unavailable
6
CAMSHAFT,REAR BRAKE
42026-022
Unavailable
6
CAM SHAFT,FRONT BRAK
41050-015
Unavailable
7
SCREW-BUSHING NET
41070-004
Unavailable
7
PIN,SPRING
41082-001
Unavailable
8
BUSH SPEEDMETER CABLE
41062-001
Unavailable
8
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
9
WASHER,5.1X9X0.4
41063-001
Unavailable
10
PINION-SPEEDOMETER
41060-010
Unavailable
11
GEAR-SPEEDOMETER
41059-011
Unavailable
12
RECIEVER GEAR
41064-003
Unavailable
13
OIL SEAL F BRK PANEL
92050-010
Unavailable
14
SHOE,BRAKE
42019-011
Unavailable
15
SPRING,BRAKE SHOE
42020-004
Unavailable
16~20
DRUM-ASSY,FR BRK,BUF
41034-023-80
Unavailable
17
BEARING BALL #6202Z
601B6202Z
Unavailable
18
SPACER-FRONT HUB BER
41039-020
Unavailable
19
BEARING-BALL,#6202C3
601B6202
Unavailable
20
OIL SEAL RR BRK DRUM
92050-008
Unavailable
21
AXLE-FRONT
41068-037
Unavailable
22
COLLAR-FRONT AXLE
41069-019
Unavailable
23
INDICATOR
41085-005
Unavailable
24
GREASE NIPPLE
92080-002
Unavailable
25
GREASE NIPPLE
92005-002
Unavailable
