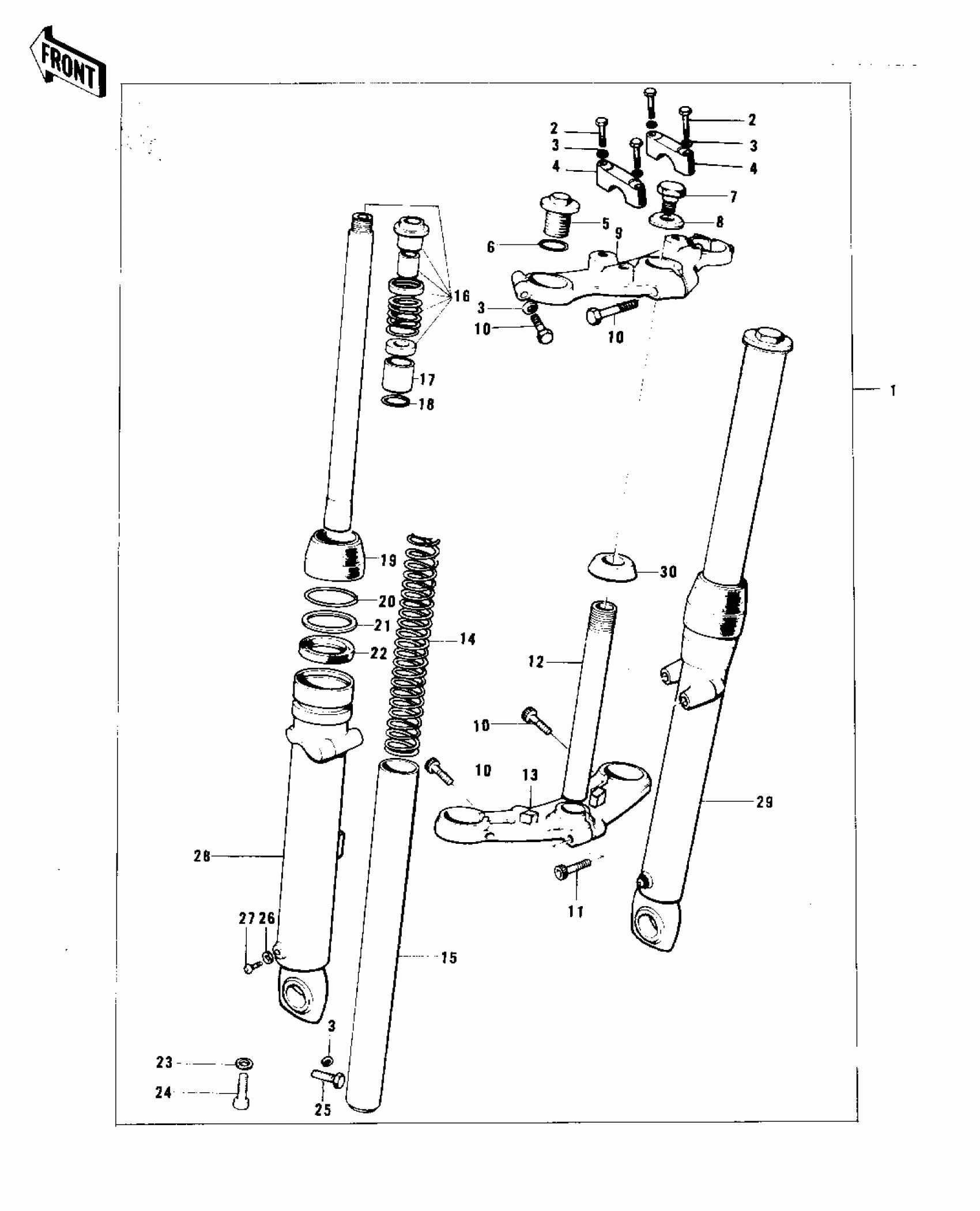

Kawasaki F11-B FRONT FORK ('73 F11M) Diagram
#
Description
Price
1
UNAVAILABLE IN PRICE BOOK
44001-119
Unavailable
2
BOLT
44041-061
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER
46012-011
Unavailable
5
BOLT
44041-063
Unavailable
6
'O' RING FORK TOP
44046-015
Unavailable
7
BOLT
44041-059
Unavailable
8
UNAVAILABLE IN PRICE BOOK
44043-062
Unavailable
9
HEAD,STEERING STEM
44039-057
Unavailable
10
BOLT
44041-061
Unavailable
11
BOLT-STEERING STEM
44041-043
Unavailable
12
SHAFT
44052-005
Unavailable
13
STEM,STEERING
44038-006
Unavailable
14
SPRING,FORK
44026-049
Unavailable
15
TUBE,FORK INNER
44013-043
Unavailable
16
CYLINDER-FORK
44022-014
Unavailable
17
PISTON
44018-006
Unavailable
18
CIRCLIP FORK PISTON
44044-008
Unavailable
19
DUST SHIELD
44010-023
Unavailable
20
RING-SNAP,FORK OIL
92033-1100
Unavailable
21
WASHER-OIL SEAL FIT
44043-044
Unavailable
22
OIL SEAL
44009-016
Unavailable
23
GASKET
44045-057
Unavailable
24
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
25
BOLT
44041-060
Unavailable
26
GASKET
44045-045
Unavailable
27
SCREW
44041-062
Unavailable
28
TUBE,LH,FORK OUTER
44005-050
Unavailable
29
TUBE,RH,FORK OUTER
44006-048
Unavailable
30
GASKET
44045-045
Unavailable
31
DUST SHIELD-STRNG STM
44010-020
Unavailable
