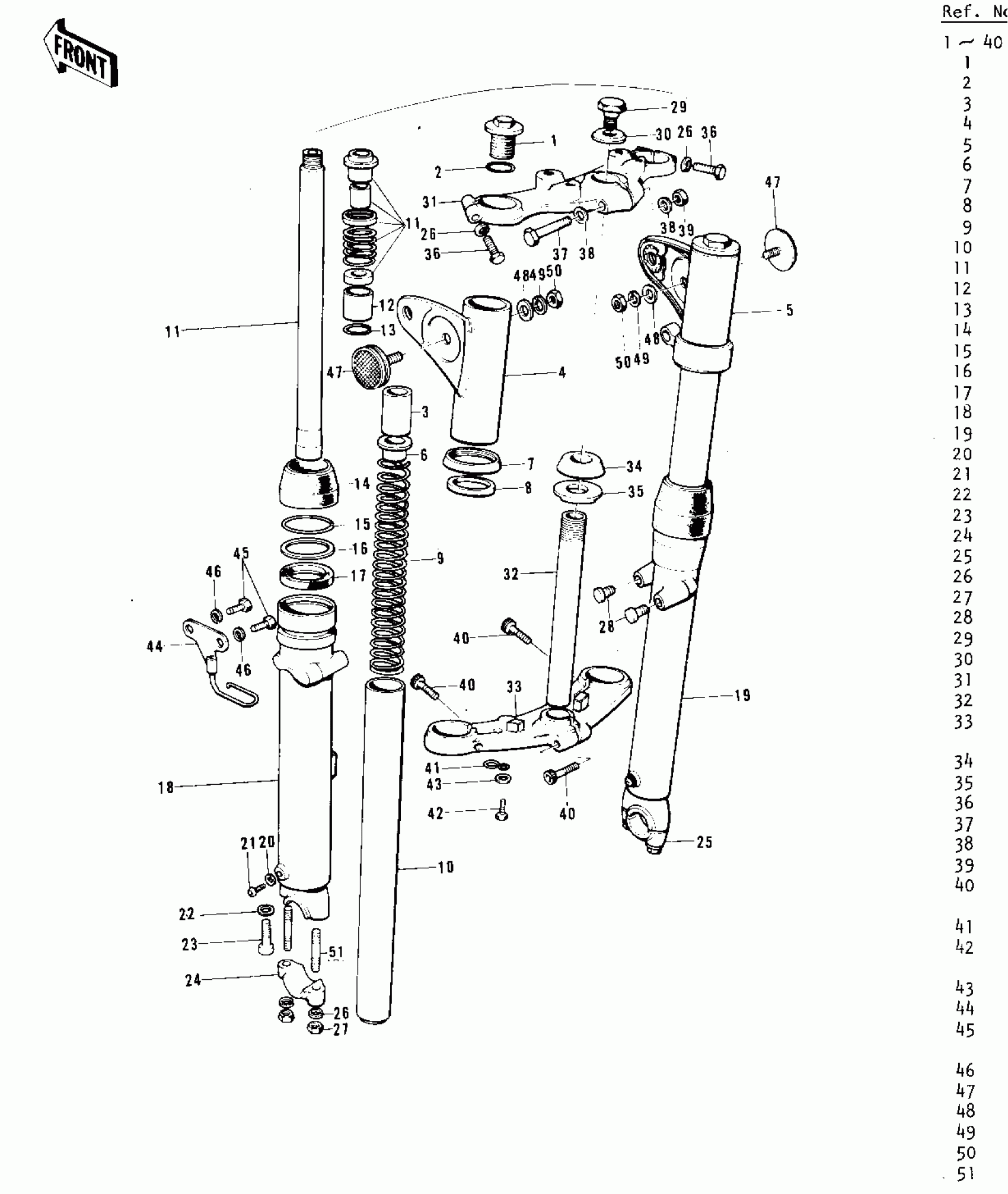

Kawasaki F11-B FRONT FORK ('73-'75 F11/F11-A/F11-B) Diagram
#
1~40
FRONT FORK ASSY,BLAC
44001-081-21
Unavailable
1
BOLT-FORK FITTING
44041-037
Unavailable
2
RING-O,FORK TOP
92055-1012
Unavailable
3
SPACER
44028-025
Unavailable
4
COVER-L.H FORK,BLACK
44033-047-21
Unavailable
5
COVER-R.H FORK,BLACK
44034-047-21
Unavailable
6
GUIDE-FORK SPRING
44029-019
Unavailable
7
GUIDE-FORK COVER
44032-009
Unavailable
8
SPRING-FORK
44026-041
Unavailable
9
SPRING-FORK
44026-041
Unavailable
10
TUBE-FORK INNER
44013-036
Unavailable
11
CYLINDER-FORK
44022-009
Unavailable
12
PISTON FORK
44018-001
Unavailable
13
CIRCLIP FORK PISTON
44044-008
Unavailable
14
DUST SHIELD-FORK
44010-019
Unavailable
15
CIRCLIP OIL SEAL FIT
44044-005
Unavailable
16
WASHER OIL SEAL FIT
44043-023
Unavailable
17
OIL SEAL,FORK
44009-020
Unavailable
18
TUBE,RH,FORK OUTER
44006-042
Unavailable
19
TUBE,RH,FORK OUTER
44006-042
Unavailable
20
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
21
SCREW PAN HEAD 4X8
220B0408
Unavailable
22
GASKET
44045-057
Unavailable
23
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
24
HOLDER-FRONT AXLE,L.
44063-004
Unavailable
25
HOLDER-FRONT AXLE,R.
44063-005
Unavailable
26
WASHER SPRING 8MM
461F0800
Unavailable
27
NUT,8MM
311B0800
Unavailable
28
CAP
44062-002
Unavailable
29
BOLT STRNG STEM HEAD
44041-007
Unavailable
30
WASHER FORK COVER
44043-032
Unavailable
31
HEAD-STEERING STEM
44039-046
Unavailable
32
SHAFT-STEERING STEM
44052-003
Unavailable
33
STEM,STEERING
44037-089
Unavailable
33
STEM,STEERING
44037-089
Unavailable
34
RACE,STEERING STEM BEARING
92047-010
Unavailable
35
DUST SHIELD-STRNG STM
44010-020
Unavailable
36
BOLT-STEERING STEM HD
44041-044
Unavailable
37
BOLT-STEERING STEM HD
44041-042
Unavailable
38
WASHER PLAIN 8MM
410B0800
Unavailable
39
NUT,LOCK,8MM
92015-1124
Unavailable
40
BOLT-STEERING STEM
44041-043
Unavailable
40
BOLT-HEX HEAD,12X36
113B1236A
Unavailable
41
CLAMP
92037-083
Unavailable
42
BOLT-UPSET,6X12
112G0612
Unavailable
42
BOLT-UPSET,6X12
112G0612
Unavailable
43
WASHER PLAIN 6MM
411B0600
Unavailable
44
GUIDE-CABLE
54030-007
Unavailable
45
BOLT SMALL
114G0812
Unavailable
45
BOLT SMALL
114G0812
Unavailable
46
WASHER SPRING 8MM
461F0800
Unavailable
47
REFLECTOR-REFLEX,FRNT
28001-011
Unavailable
48
WASHER-PLAIN,5MM
411B0500
Unavailable
49
WASHER SPRING 5MM
461F0500
Unavailable
50
NUT-HEX
311B0500
Unavailable
