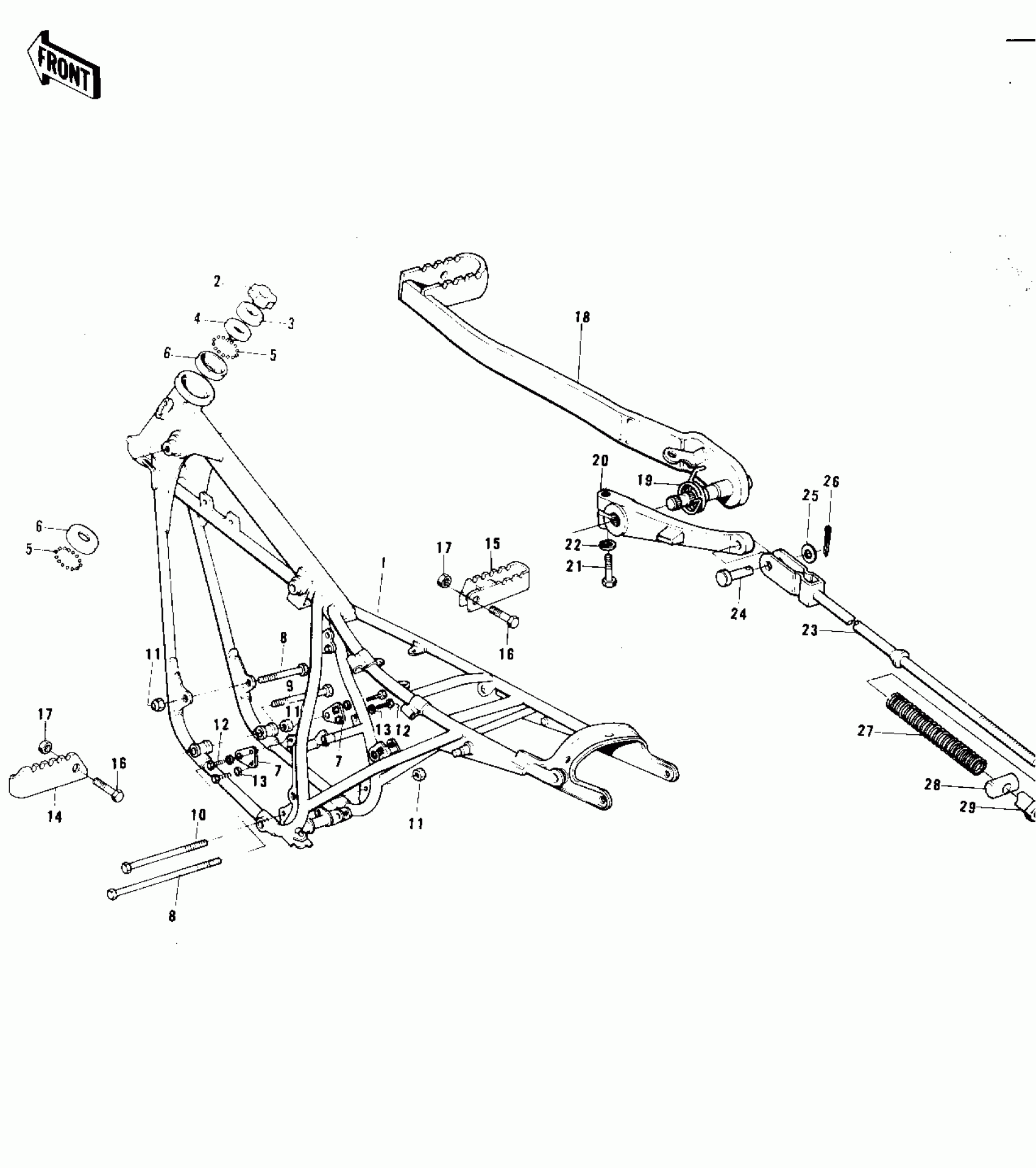

Kawasaki F11-B FRAME/FRAME FITTINGS/FOOTRESTS/BRAKE PED Diagram
#
Description
Price
1
FRAME
32002-070
Unavailable
2
BOLT, HEX HEAD 10X250
92090-023
Unavailable
3
CAP,STEERING STEM
46098-014
Unavailable
4
CONE STERNG BERG UPP
92047-003
Unavailable
5
BALL-STEEL,1/4
600A0800
Unavailable
6
UNAVAILABLE IN PRICE BOOK
92048-003
Unavailable
7
PLATE-ENGINE MOUNT
32030-024
Unavailable
8
BOLT-HEX HEAD,10X136
113B10136
Unavailable
9
BOLT,HEX HEAD,10X215
113B10215
Unavailable
10
BOLT,HEX HEAD,10X117
92001-1246
Unavailable
11
NUT,10MM
92019-016
Unavailable
12
BOLT,8X20
115G0820
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
BAR,L.H FOOTREST
34028-013
Unavailable
15
BAR,R.H FOOTREST
34028-014
Unavailable
16
BOLT-SMALL-UPSET
115B0832
Unavailable
17
NUT,8MM
92019-018
Unavailable
18
PEDAL,BRAKE
43077-003
Unavailable
19
SPRING-BRAKE PEDAL
43005-019
Unavailable
20
LEVER-BRAKE PEDAL
42029-019
Unavailable
21
BOLT-UPSET
112G0625
Unavailable
21
BOLT-UPSET
112G0625
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
ROD-BRAKE
43011-011
Unavailable
24
PIN,BRAKE ROD
92043-065
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
26
PIN COTTER 2.0X15
550D2015
Unavailable
27
SPRING,BRAKE ROD
43012-001
Unavailable
28
PIN,BRAKE ROD
92043-065
Unavailable
29
NUT,BRAKE ROD
92015-042
Unavailable
