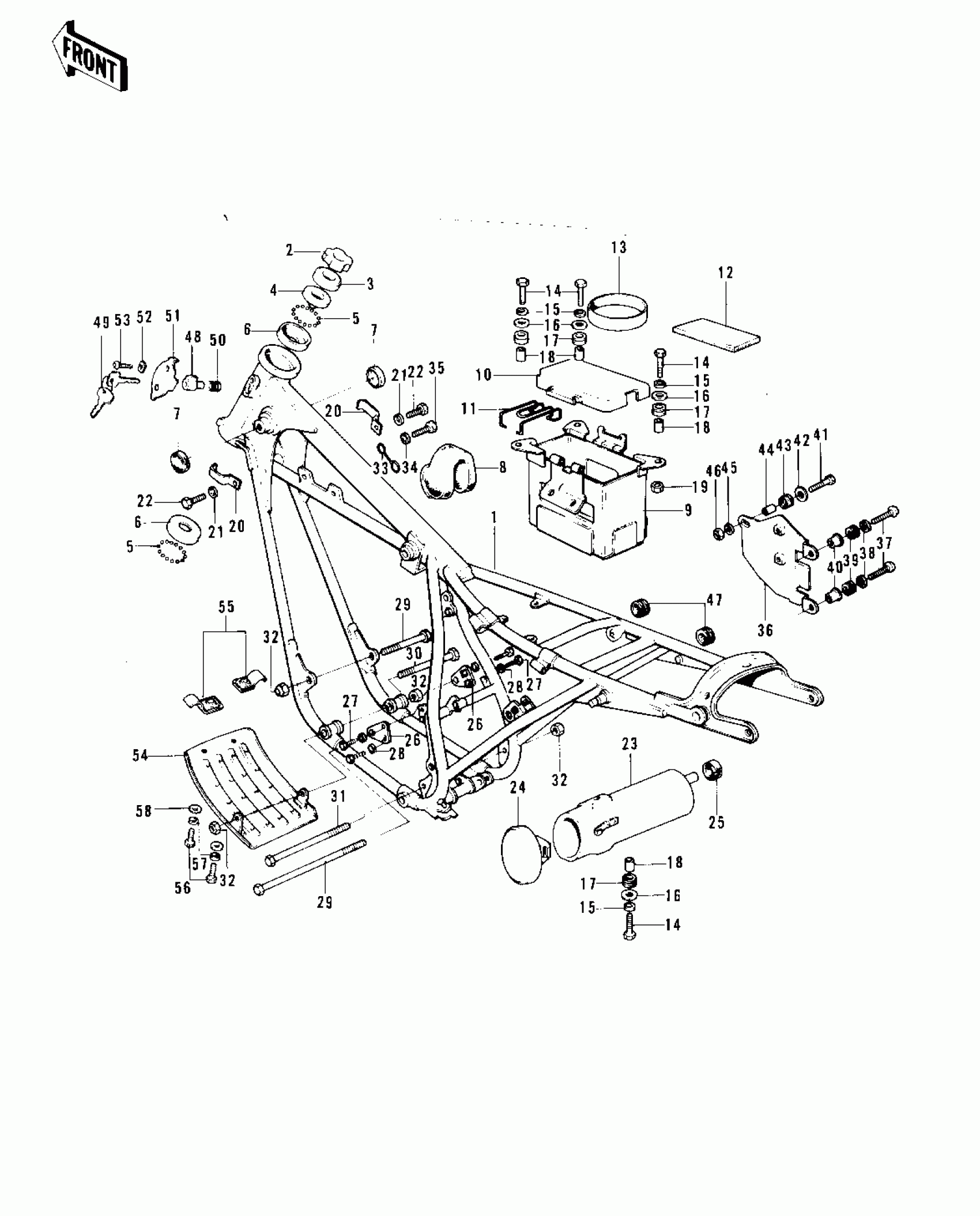

Kawasaki F11-B FRAME/FRAME FITTINGS/BATTERY CASE/TOOL C Diagram
#
1
FRAME
32002-051
Unavailable
1
FRAME
32002-076
Unavailable
2
NUT STEERING STEM LCK
92090-006
Unavailable
3
CAP-STEERING STEM
46098-011
Unavailable
4
CONE STERNG BERG UPP
92047-003
Unavailable
5
BALL-STEEL,1/4
600A0800
Unavailable
6
RACE,STEERING STEM BEARING,LWR
92048-005
Unavailable
7
DAMPER,FUEL TANK
92075-101
Unavailable
8
DAMPER RUBBER
92075-102
Unavailable
9
CASE-BATTERY
32097-020
Unavailable
10
COVER-BATTERY
32130-001
Unavailable
11
FASTENER-BATTERY CAS
92079-003
Unavailable
12
MAT-BATTERY
32103-022
Unavailable
13
DAMPER,BATTERY BOTTOM
32103-023
Unavailable
14
BOLT 6X22
112B0622
Unavailable
14
BOLT 6X22
112B0622
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
WASHER,6.5X20X1.6
92022-125
Unavailable
17
DAMPER RUBBER
92075-076
Unavailable
18
COLLAR,6.8X10X8.5
92027-129
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
CLAMP-WIRE HARNESS
92037-086
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
BOLT-UPSET 6X14
112B0614
Unavailable
22
BOLT-UPSET 6X14
112B0614
Unavailable
23
CASE-TOOL
32098-017
Unavailable
24
COVER-TOOL CASE,BLAC
32104-004-21
Unavailable
25
DAMPER RUBBER
92075-107
Unavailable
26
PLATE-ENGINE MOUNT
32030-024
Unavailable
27
BOLT,8X20
115G0820
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
BOLT-HEX HEAD,10X136
113B10136
Unavailable
30
BOLT-HEX HEAD,10X223
113B10223
Unavailable
31
BOLT,HEX HEAD,10X117
92001-1246
Unavailable
32
NUT,10MM
92015-1429
Unavailable
33
CLAMP
92037-053
Unavailable
34
WASHER PLAIN 6MM
411B0600
Unavailable
35
BOLT-UPSET,6X12
112G0612
Unavailable
35
BOLT-UPSET,6X12
112G0612
Unavailable
36
BRACKET-TERMINAL
26017-001
Unavailable
37
SCREW-PAN-CROS
220B0514
Unavailable
38
WASHER SPRING 5MM
461F0500
Unavailable
39
DAMPER RUBBER
92075-147
Unavailable
40
COLLAR
92027-166
Unavailable
41
SCREW PAN HEAD 6X22
220B0622
Unavailable
42
WASHER,6.5X22X1.6
92022-237
Unavailable
43
DAMPER RUBBER
92075-149
Unavailable
44
COLLAR
92027-165
Unavailable
45
WASHER SPRING 6MM
461F0600
Unavailable
46
NUT 6MM
311B0600
Unavailable
47
GROMMET
92071-056
Unavailable
48,49
LOCK ASSY-STEERING
27016-028
Unavailable
48,49
LOCK-ASSY,STEERING
27016-042
Unavailable
49
KEY SET-STRNG,#265
27018-014-65
Unavailable
49
KEY SET-STRNG,#266
27018-014-66
Unavailable
49
KEY SET-STRNG,#266
27018-014-66
Unavailable
49
KEY SET-STRNG,#267
27018-014-67
Unavailable
49
KEY SET-STRNG,#268
27018-014-68
Unavailable
49
KEY SET-STRNG,#269
27018-014-69
Unavailable
49
KEY SET,#421
27008-063-21
Unavailable
49
KEY SET,#422
27008-063-22
Unavailable
49
KEY SET,#423
27008-063-23
Unavailable
49
KEY SET,#424
27008-063-24
Unavailable
49
KEY SET,#425
27008-063-25
Unavailable
49
KEY SET,#426
27008-063-26
Unavailable
49
KEY SET,#427
27008-063-27
Unavailable
49
KEY SET,#428
27008-063-28
Unavailable
49
KEY SET,#429
27008-063-29
Unavailable
49
KEY SET,#430
27008-063-30
Unavailable
50
SPRING,STEERING LOCK
27032-001
Unavailable
51
CAP,STEERING LOCK
11012-1134
Unavailable
52
WASHER,WAVE
92097-003
Unavailable
53
SCREW,3.51MM
92008-007
Unavailable
54
GUARD-ENGINE
55011-015
Unavailable
55
BRACKET-ENGINE GUARD
55016-006
Unavailable
56
BOLT,8X20
115G0820
Unavailable
56
BOLT,8X20
115G0820
Unavailable
57
WASHER SPRING 8MM
461F0800
Unavailable
58
WASHER PLAIN 8MM
411B0800
Unavailable
