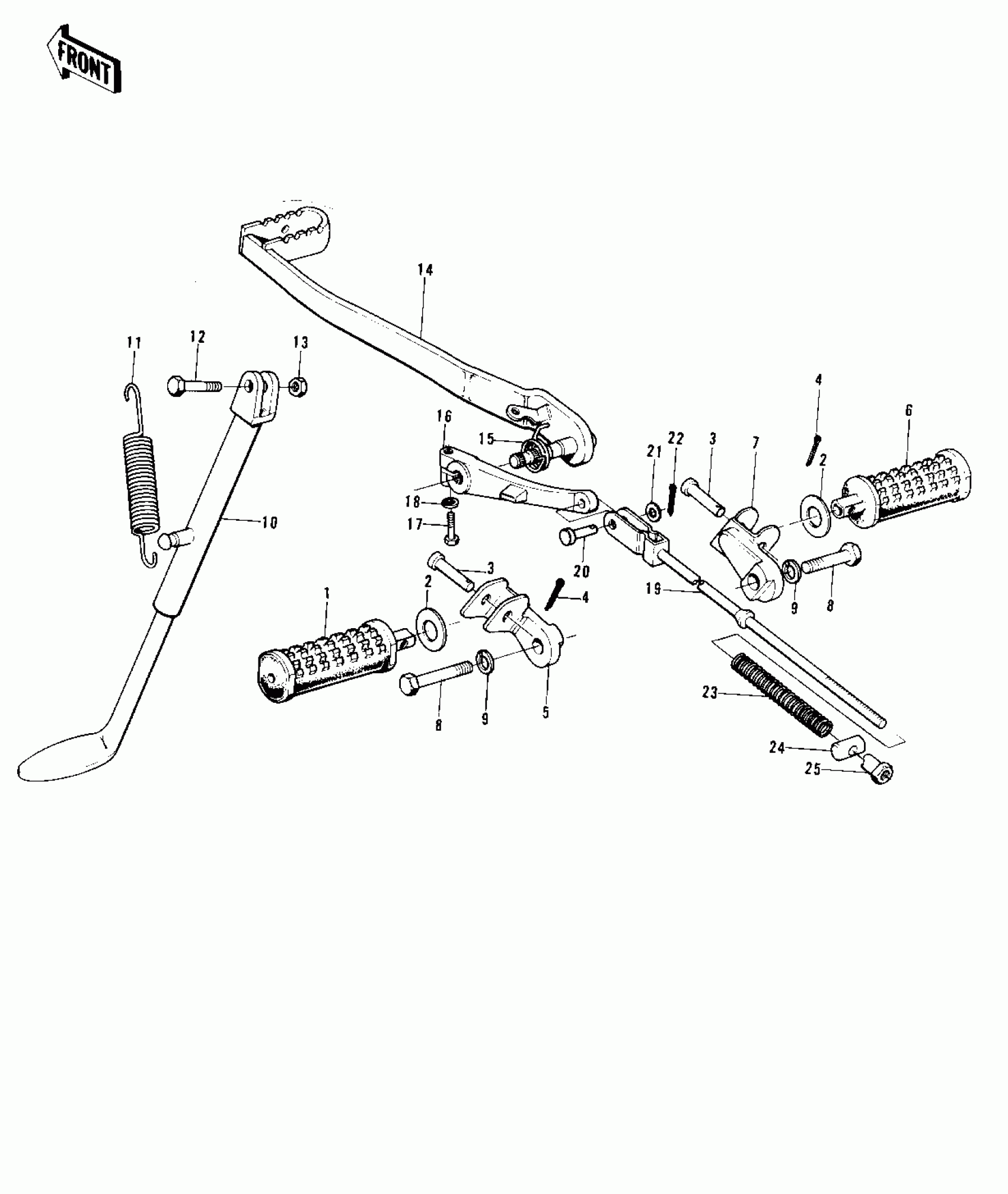

Kawasaki F11-B FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
STEP-ASSY,FR,LH
34027-1114
Unavailable
1
STEP-ASSY,FR,LH
34027-1114
Unavailable
2
WASHER PL 22.5X36X2.3
92022-204
Unavailable
3
PIN,8X31
92043-080
Unavailable
4
PIN-COTTER,2.5X15
550D2515
Unavailable
5
BRKT LH FOOTREST BAR
34007-010
Unavailable
6
STEP-ASSY,FR,RH
34027-1115
Unavailable
6
STEP-ASSY,FR,RH
34027-1115
Unavailable
7
BRACKET, RH. FOOTREST BAR
34007-011
Unavailable
8
BOLT-HEX HEAD,14X32
113B1432
Unavailable
9
WASHER SPRING 14MM
461F1400
Unavailable
10
STAND-SIDE
34024-034
Unavailable
11
SPRING-SIDE STAND
34025-004
Unavailable
12
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
13
NUT-HEX-FINE,10MM
314B1000
Unavailable
14
PEDAL-BRAKE
43077-001
Unavailable
15
SPRING-BRAKE PEDAL
43005-019
Unavailable
16
LEVER-BRAKE PEDAL
42029-019
Unavailable
17
BOLT-UPSET
112G0625
Unavailable
17
BOLT-UPSET
112G0625
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
ROD-BRAKE
43011-011
Unavailable
20
PIN,6X17
92043-064
Unavailable
21
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
22
PIN COTTER 2.0X15
550D2015
Unavailable
23
SPRING,BRAKE ROD
43012-001
Unavailable
24
PIN,BRAKE ROD
92043-065
Unavailable
25
NUT,BRAKE ROD
92015-042
Unavailable
