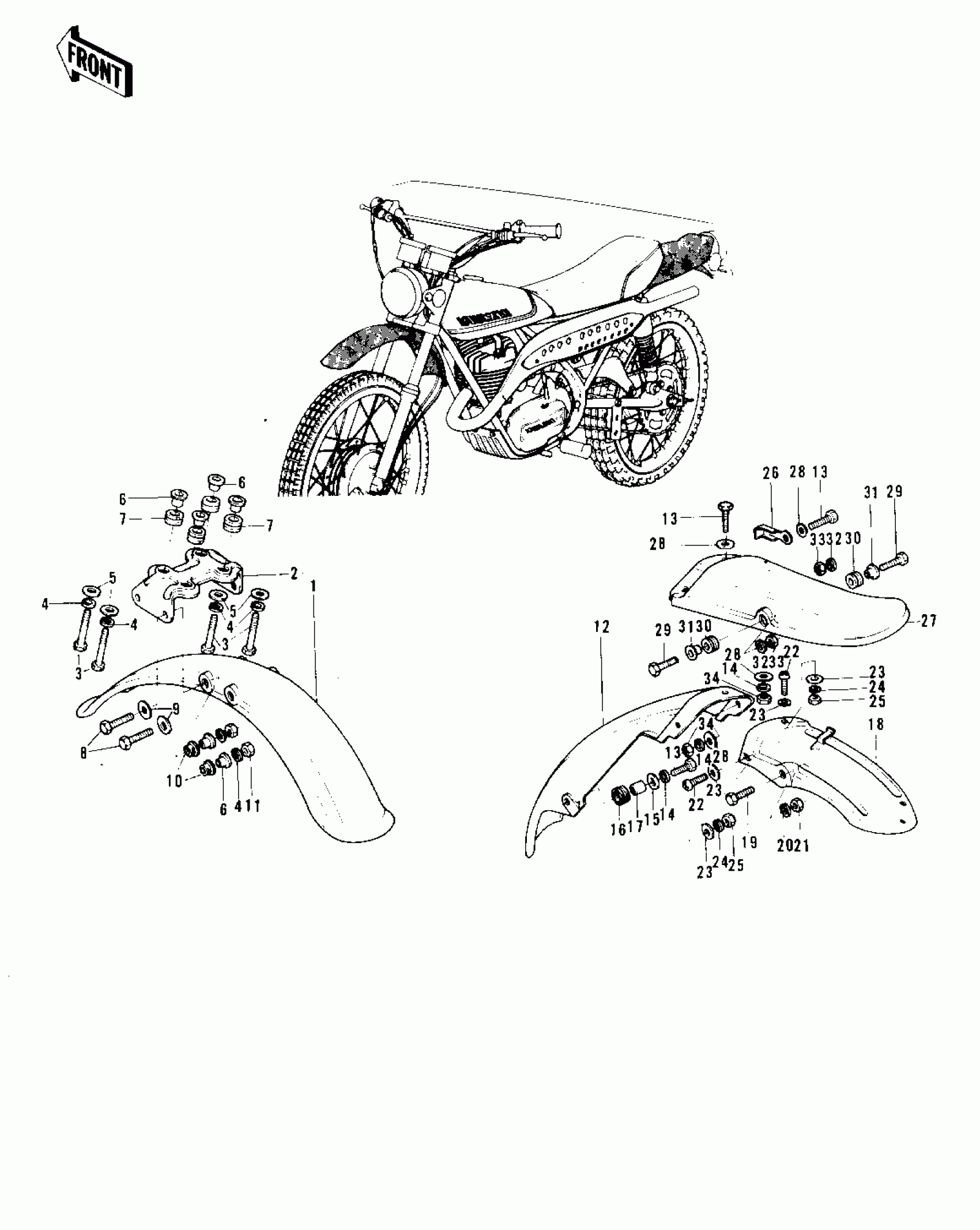

Kawasaki F11-B FENDERS ('73-'75 F11/F11-A/F11-B) Diagram
#
1
FENDER-FR,C.YELLOW
35004-066-1U
Unavailable
1
FENDER-FR,C.RED
35004-066-92
Unavailable
1
FENDER-FR,C.YELLOW
35004-066-1U
Unavailable
1
FENDER-FR,C.LIME
35004-066-1M
Unavailable
1
FENDER-FR,SILVER
35004-066-1W
Unavailable
2
BRACKET-FRONT FENDER
35012-016
Unavailable
3
BOLT-UPSET,6X20
112G0620
Unavailable
3
BOLT-UPSET,6X20
112G0620
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
WASHER,6.5X20X1.6
92022-125
Unavailable
6
COLLAR
92027-153
Unavailable
7
DAMPER RUBBER
92075-051
Unavailable
8
BOLT HEX HEAD 6X18
110N0618
Unavailable
9
WASHER PLAIN
92022-024
Unavailable
10
DAMPER RUBBER
92075-103
Unavailable
11
NUT 6MM
311B0600
Unavailable
12
FENDER-RR
35022-066
Unavailable
13
BOLT-UPSET
112G0618
Unavailable
13
BOLT-UPSET
112G0618
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
WASHER,6.5X20X1.6
92022-125
Unavailable
16
DAMPER RUBBER
92075-105
Unavailable
17
COLLAR
92027-103
Unavailable
18
FENDER-RR,BLACK
35022-067-21
Unavailable
19
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
19
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
20
WASHER SPRING 8MM
461F0800
Unavailable
21
NUT,8MM
311B0800
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
23
WASHER,6.5X20X1.6
92022-125
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
NUT 6MM
311B0600
Unavailable
26
CLAMP
92037-085
Unavailable
27
COVER-RR FENDR,YELLO
53043-003-74
Unavailable
27
COVER,RR FENDER.C.RE
53043-003-92
Unavailable
27
COVER,RR FENDER,YELO
53043-003-1U
Unavailable
27
COVER,RR FENDER,YELO
53043-003-1U
Unavailable
27
COVER,RR FEND,SILVER
53043-003-1W
Unavailable
28
WASHER,10.5X26X2.3
92022-044
Unavailable
29
BOLT-HEX HEAD,10X46
92007-029
Unavailable
30
DAMPER
92075-104
Unavailable
31
COLLAR
92027-147
Unavailable
32
WASHER SPRING 10MM
461F1000
Unavailable
33
NUT-HEX-FINE,10MM
314B1000
Unavailable
34
NUT,LOCK,6MM
92019-008
Unavailable
