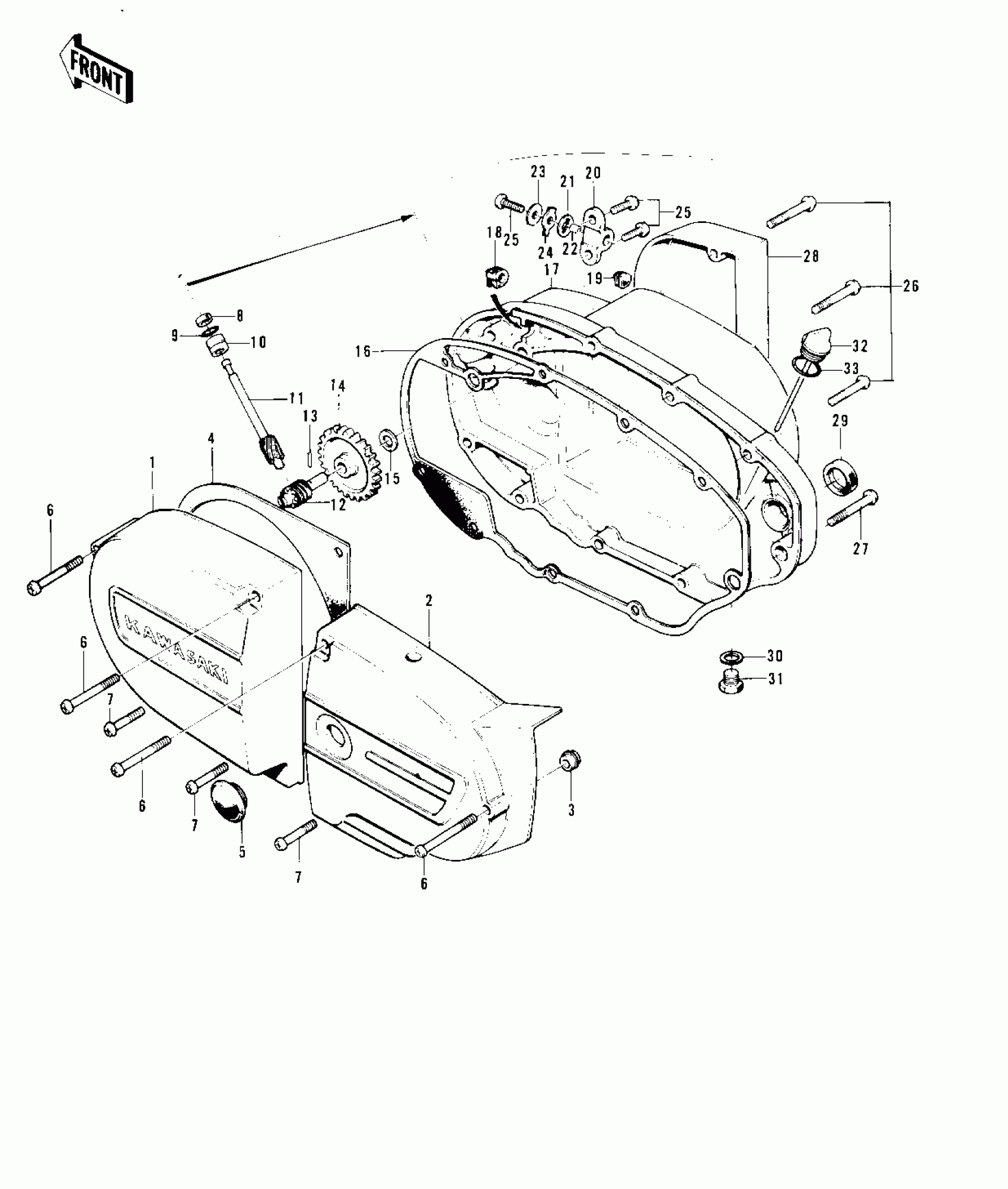

Kawasaki F11-B ENGINE COVERS ('73-'75 F11/F11-A/F11-B) Diagram
#
1
COVER-L.H ENG,BLACK
14031-048-21
Unavailable
1
COVER,L.H ENGINE,BAR
14031-048-2H
Unavailable
2
COVER-CHAIN CASE,BLK
14026-027-21
Unavailable
2
COVER,CHAIN CASE,BAR
14026-027-2H
Unavailable
3
TENSIONER-CHAIN
13123-005
Unavailable
4
GASKET-L.H ENGINE CO
14045-013
Unavailable
5
CAP-CLUTCH HOLE
14040-003
Unavailable
6
SCREW-PAN-CROS,6X60
220B0660
Unavailable
7
SCREW PAN HEAD 6X25
220B0625
Unavailable
8
OIL SEAL
92054-004
Unavailable
9
RING-O,12X1.5
92055-025
Unavailable
10
BUSH-TACHOMETER GEAR
92028-095
Unavailable
11
GEAR-TACHOMETER
13223-005
Unavailable
12
PINION-TACHOMETER
13224-009
Unavailable
13
PIN,DOWEL
92042-035
Unavailable
14
GEAR-OIL PUMP
16085-018
Unavailable
15
WASHER THRUST
92026-025
Unavailable
16
GASKET-R.H ENGINE CO
14046-022
Unavailable
17
COVER-R.H ENG,BLACK
14032-070-21
Unavailable
17
COVER,R.H ENGINE,BAR
14032-103-2H
Unavailable
18
GROMMET
21017-002
Unavailable
19
GROMMET
92071-063
Unavailable
20
HOLDER-OIL PUMP WIRE
14044-007
Unavailable
21
HOLDER-OIL PUMP WIRE
14044-008
Unavailable
22
COLLAR,6.3X10X5
92027-164
Unavailable
23
WASHER-LOCK
92024-045
Unavailable
24
WASHER,6.5X20X1.6
92022-125
Unavailable
25
SCREW-PAN-CROS,6X16
220B0616
Unavailable
26
SCREW PAN HEAD 6X35
220B0635
Unavailable
27
SCREW PAN HEAD 6X45
220B0645
Unavailable
28
COVER-OIL PUMP,BLACK
14030-035-21
Unavailable
28
COVER,OIL PUMP,BARRE
14030-035-2H
Unavailable
29
SEAL-OIL,SB20285
92049-012
Unavailable
30
GASKET,10.5X16X1
92065-058
Unavailable
31
PLUG,DRAIN,10X12
92067-001
Unavailable
32
PLUG-OIL FILLER
16115-014
Unavailable
32
PLUG-OIL FILLER
16115-017
Unavailable
33
O RING,20MM
670B2020
Unavailable
