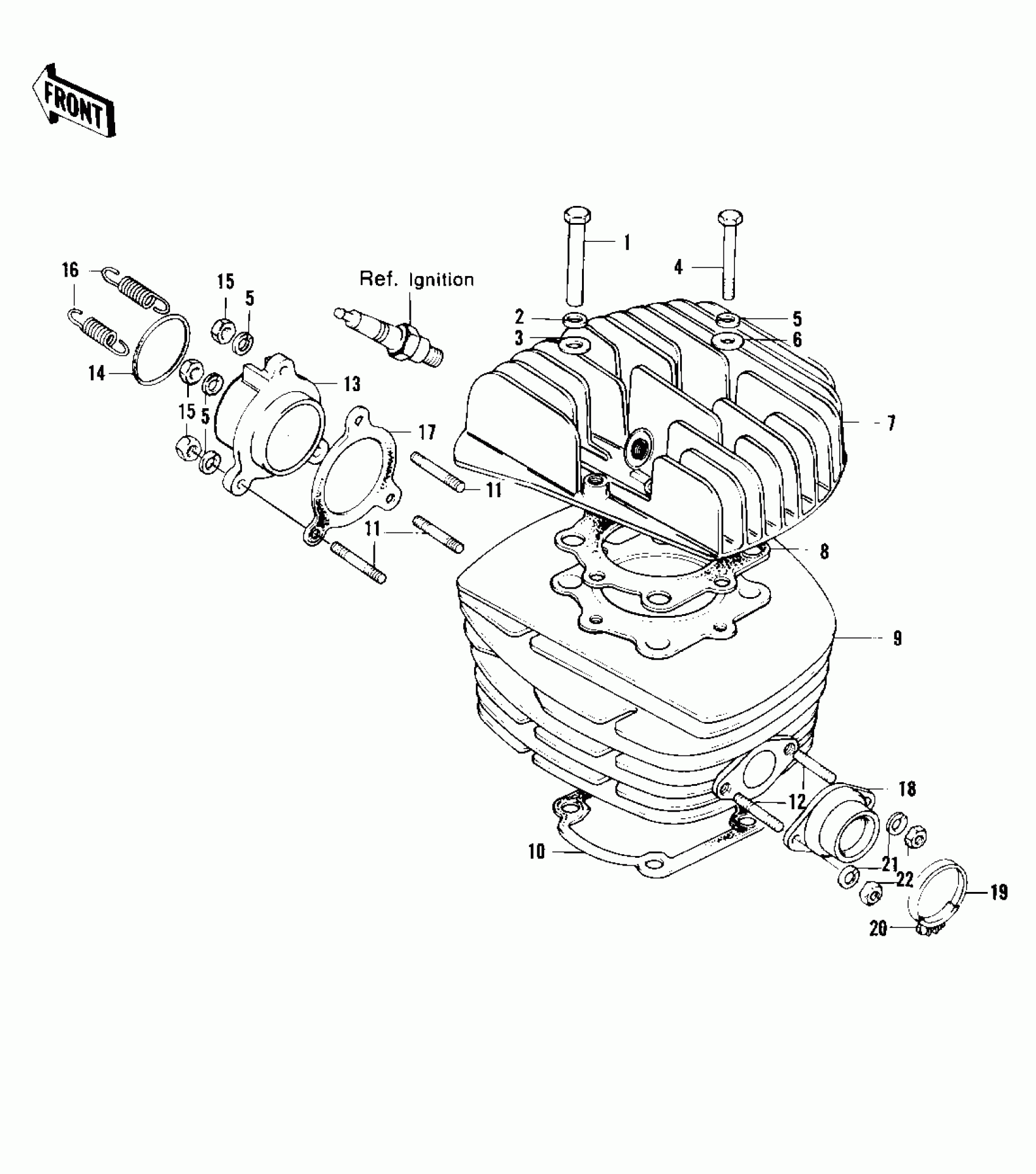

Kawasaki F11-B CYLINDER HEAD/CYLINDER ('73 F11M) Diagram
#
Description
Price
1
NUT,10MM
92015-051
Unavailable
2
WASHER SPRING 14MM
461F1400
Unavailable
3
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
4
BOLT,10X45
92001-1182
Unavailable
4
BOLT,10X45
92001-1182
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
WASHER PLAIN 8MM
410B0800
Unavailable
7
CYLINDER HEAD,F.BLAC
11001-077-21
Unavailable
8
GASKET-CYLINDER HEAD
11004-050
Unavailable
9
CYLINDER,F.BLACK
11005-101-21
Unavailable
10
GASKET-CYLINDER BASE
11009-029
Unavailable
11
BOLT-STUD,8X20
172G0820
Unavailable
12
STUD,8X12
172G0812
Unavailable
13
HOLDER-EXHAUST PIPE
18062-004
Unavailable
14
UNAVAILABLE IN PRICE BOOK
56019-102
Unavailable
15
NUT-HEX-SMALL,8MM
318B0800
Unavailable
16
SPRING-CONNECTOR
18071-003
Unavailable
17
GASKET-EXHAUST PIPE
18050-004
Unavailable
18
HOLDER,CARBURETOR
16065-012
Unavailable
19
CLAMP-INLET PIPE
92037-061
Unavailable
20
SCREW-PAN-CROS
220B0535
Unavailable
21
WASHER SPRING 8MM
461F0800
Unavailable
21
WASHER SPRING 8MM
461F0800
Unavailable
21
WASHER SPRING 8MM
461F0800
Unavailable
22
NUT,8MM
311B0800
Unavailable
