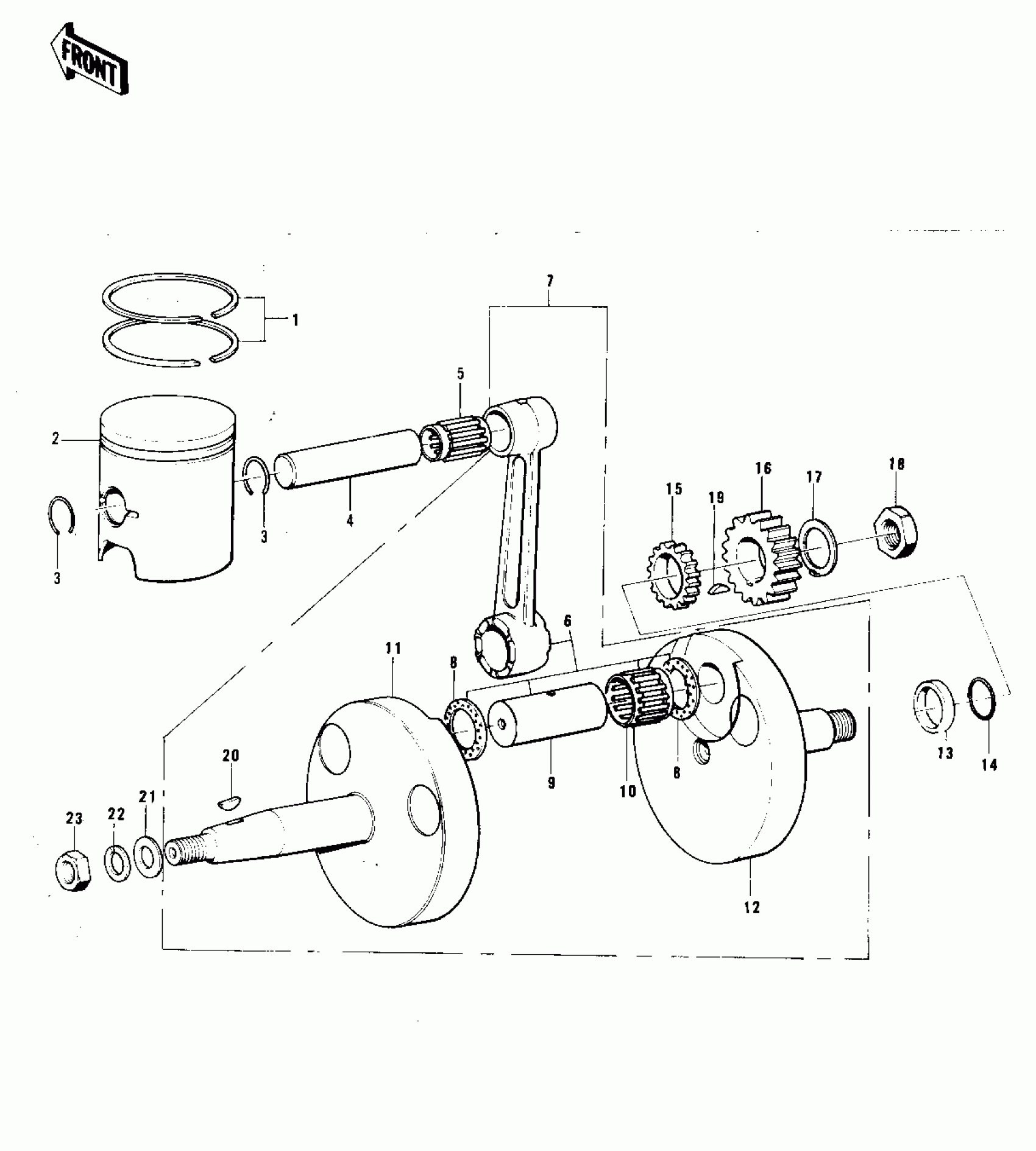

Kawasaki F11-B CRANKSHAFT/PISTON ('73 F11M) Diagram

#

Description

Price

1

RING SET,STD

13008-030

Unavailable

1

RING SET,0.020" O.S

13025-035

Unavailable

2

PISTON,STD

13001-058

Unavailable

2

PISTON,0,020'O/S

13029-063

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

Unavailable

4

PIN-PISTON

13002-017

Unavailable

5

BEARING-SMALL END

13033-1010

Unavailable

6

CONNECTING ROD SET

13044-026

Unavailable

7

CRANK SHAFT ASSY

13036-040

Unavailable

8

SPACER

92026-1241

Unavailable

9

CRANK PIN

13035-031

Unavailable

10

BEARING,BIG END NEEDL

13034-049

Unavailable

11

CRANKSHAFT,L.H

13037-049

Unavailable

12

CRANKSHAFT,R.H

13038-044

Unavailable

13

COLLAR-CRANKSHAFT

92027-144

Unavailable

14

O RING,20MM

670B2020

Unavailable

15

PINION-OIL PUMP

16084-013

Unavailable

16

PINION-PRIMARY

13121-022

Unavailable

17

WASHER,LOCK,18MM

92024-067

Unavailable

18

NUT,18MM

92015-019

Unavailable

19

WOODRUFF KEY

510A5100

Unavailable

20

KEY,WOODRUFF

92038-001

Unavailable

21

WASHER-PLAIN,14MM

92022-172

Unavailable

22

WASHER SPRING 14MM

461F1400

Unavailable

23

NUT 14MM

92015-043

Unavailable
