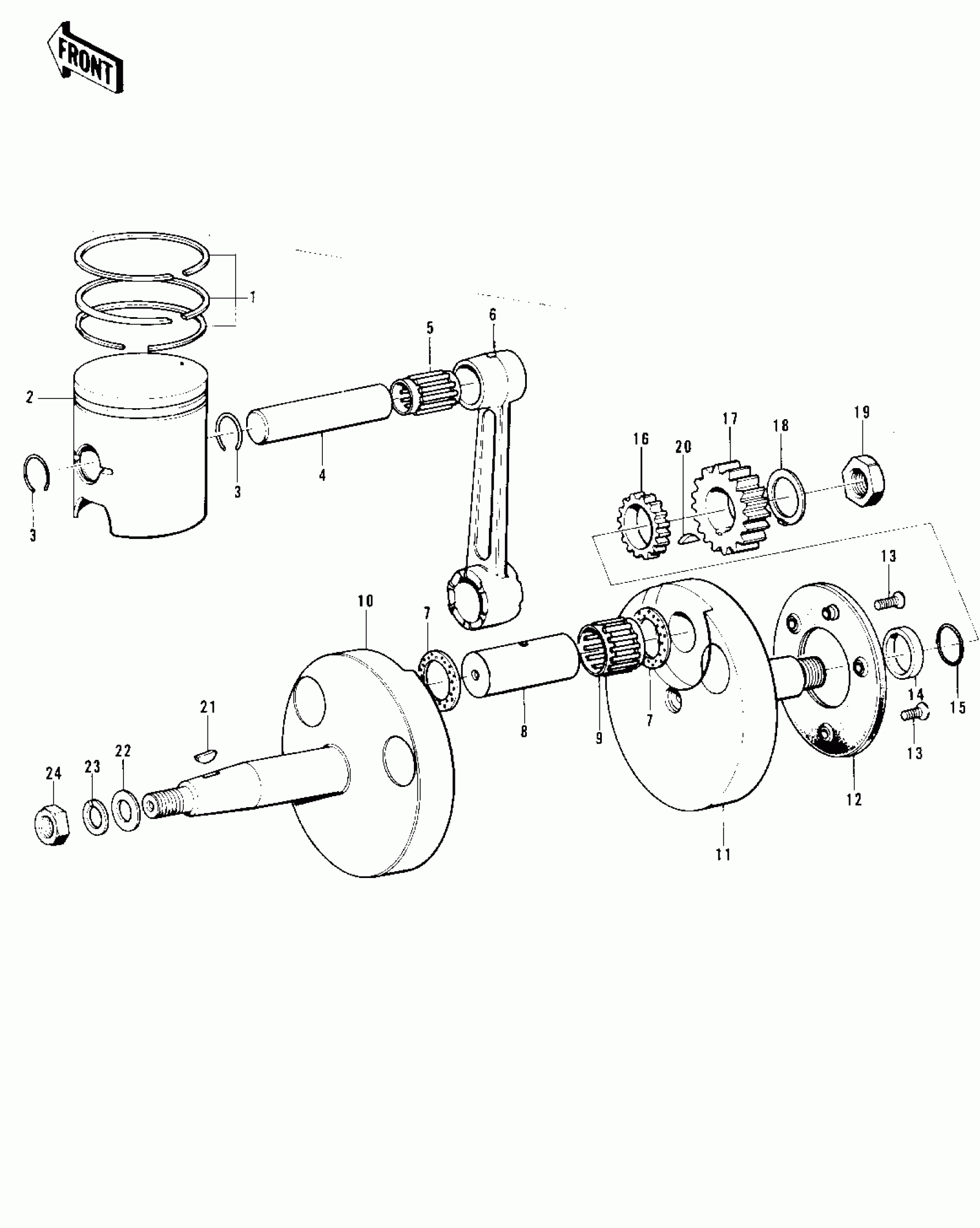

Kawasaki F11-B CRANKSHAFT/PISTON ('73-'75 F11/F11-A/F11 Diagram
#
Description
Price
1
RING SET,STD
13008-026
Unavailable
1
RING SET,0.020" O.S
13025-030
Unavailable
1
RING SET,0.040" O.S
13024-033
Unavailable
2
PISTON,STD
13001-053
Unavailable
2
PISTON,0.020' O.S
13029-055
Unavailable
2
PISTON,0.040' O.S
13027-053
Unavailable
3
CIRCLIP-PISTON PIN
92036-015
Unavailable
4
PIN-PISTON
13002-017
Unavailable
5
BEARING-SMALL END
13033-1010
Unavailable
6~9
CONNECTING ROD SET
13044-023
Unavailable
6~13
CRANK&CONROD ASSY
13036-037
Unavailable
7
SPACER
92026-1241
Unavailable
8
CRANK PIN
13035-031
Unavailable
9
BEARING,BIG END NEEDL
13034-049
Unavailable
10
CRANKSHAFT,L.H
13037-049
Unavailable
11
CRANKSHAFT,R.H
13038-044
Unavailable
12
OIL RECEIVER
13045-009
Unavailable
13
SCREW OVL CNTSNK 5X10
92012-002
Unavailable
14
COLLAR-CRANKSHAFT
92027-144
Unavailable
15
O RING,20MM
670B2020
Unavailable
16
PINION-OIL PUMP
16084-013
Unavailable
17
PINION-PRIMARY
13121-022
Unavailable
18
WASHER,LOCK,18MM
92024-067
Unavailable
19
NUT,18MM
92015-019
Unavailable
20
WOODRUFF KEY
510A5100
Unavailable
21
KEY,WOODRUFF
92038-001
Unavailable
22
WASHER-PLAIN,14MM
92022-172
Unavailable
23
WASHER SPRING 14MM
461F1400
Unavailable
24
NUT 14MM
92015-043
Unavailable
