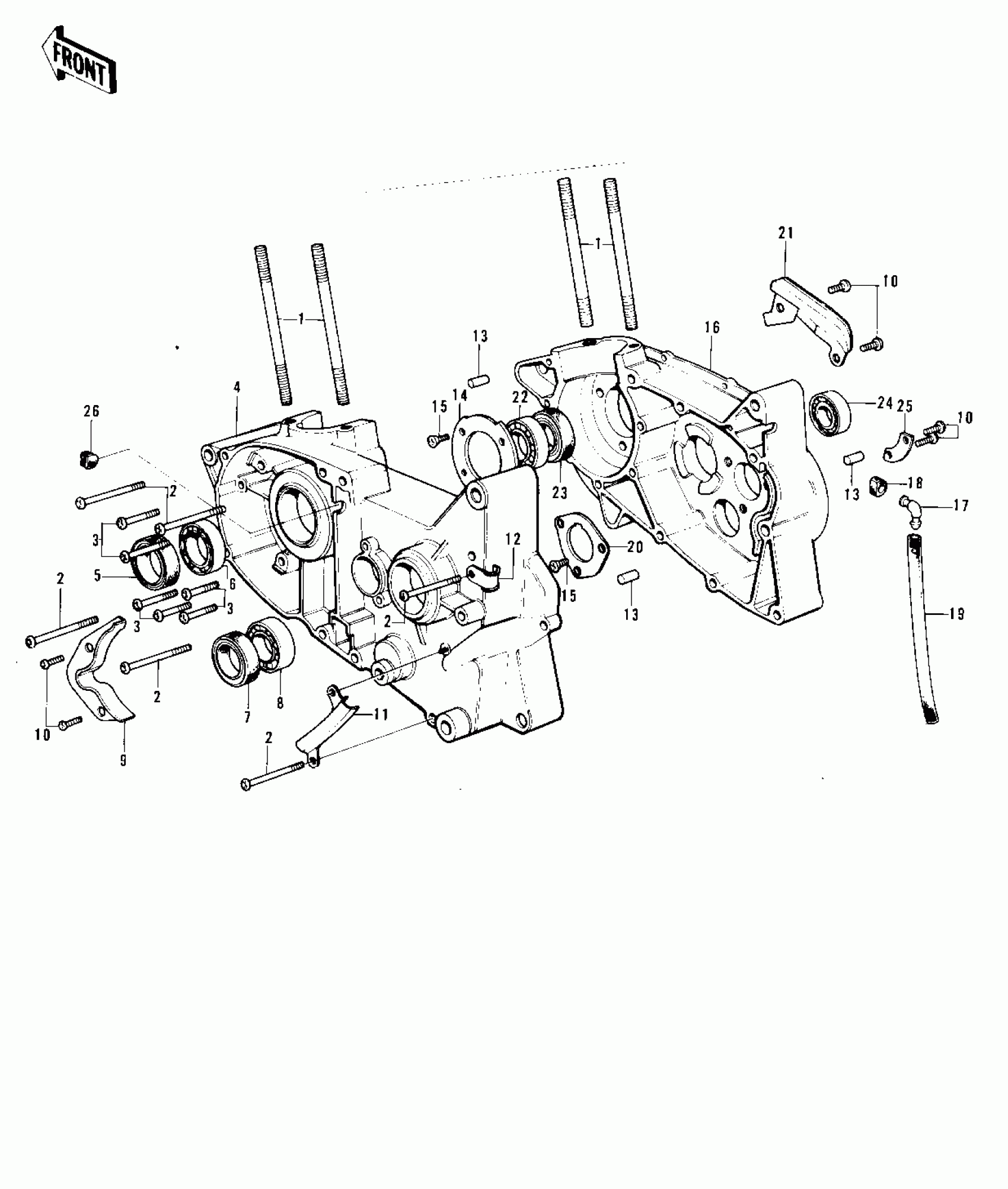

Kawasaki F11-B CRANKCASE ('73-'75 F11/F11-A/F11-B) Diagram
#
Description
Price
1
STUD,10X95
172G1095
Unavailable
2
SCREW PAN HEAD 6X65
220B0665
Unavailable
3
SCREW PAN HEAD 6X45
220B0645
Unavailable
4
CRANKCASE-L.H,F.BLAC
14002-085-21
Unavailable
5
SEAL-OIL
92049-1250
Unavailable
6
BEARING-BALL,#6305C3
601B6305
Unavailable
7
SEAL-OIL,TB3040
92050-033
Unavailable
8
BEARING-BALL,#6205C3
601B6205
Unavailable
9
HOLDER-MISSION BERNG
14014-024
Unavailable
10
SCREW PAN HEAD 6X12
220B0612
Unavailable
11
COVER A-WIRE HARNESS
14076-003
Unavailable
12
COVER B-WIRE HARNESS
14076-004
Unavailable
13
PIN,DOWEL,10X14
92043-1037
Unavailable
14
HOLDER-CRANK BEARING
14014-019
Unavailable
15
SCREW-CSK-CROS,6X16
221B0616
Unavailable
16
CRANKCASE-R.H,F.BLAC
14003-059-21
Unavailable
17
BREATHER ASSY
14069-1001
Unavailable
18
GROMMET,BREATHER
92071-042
Unavailable
19
PIPE-BREATHER
92059-061
Unavailable
20
HOLDER-MISSION BERNG
14014-023
Unavailable
21
RECEIVER-OIL
14015-004
Unavailable
22
BEARING-BALL
92045-016
Unavailable
23
OIL SEAL,TB38508
653B385008
Unavailable
24
BEARING BALL #6304
601B6304
Unavailable
25
HOLDER-MISSION BERNG
14014-020
Unavailable
26
GROMMET
92071-061
Unavailable
