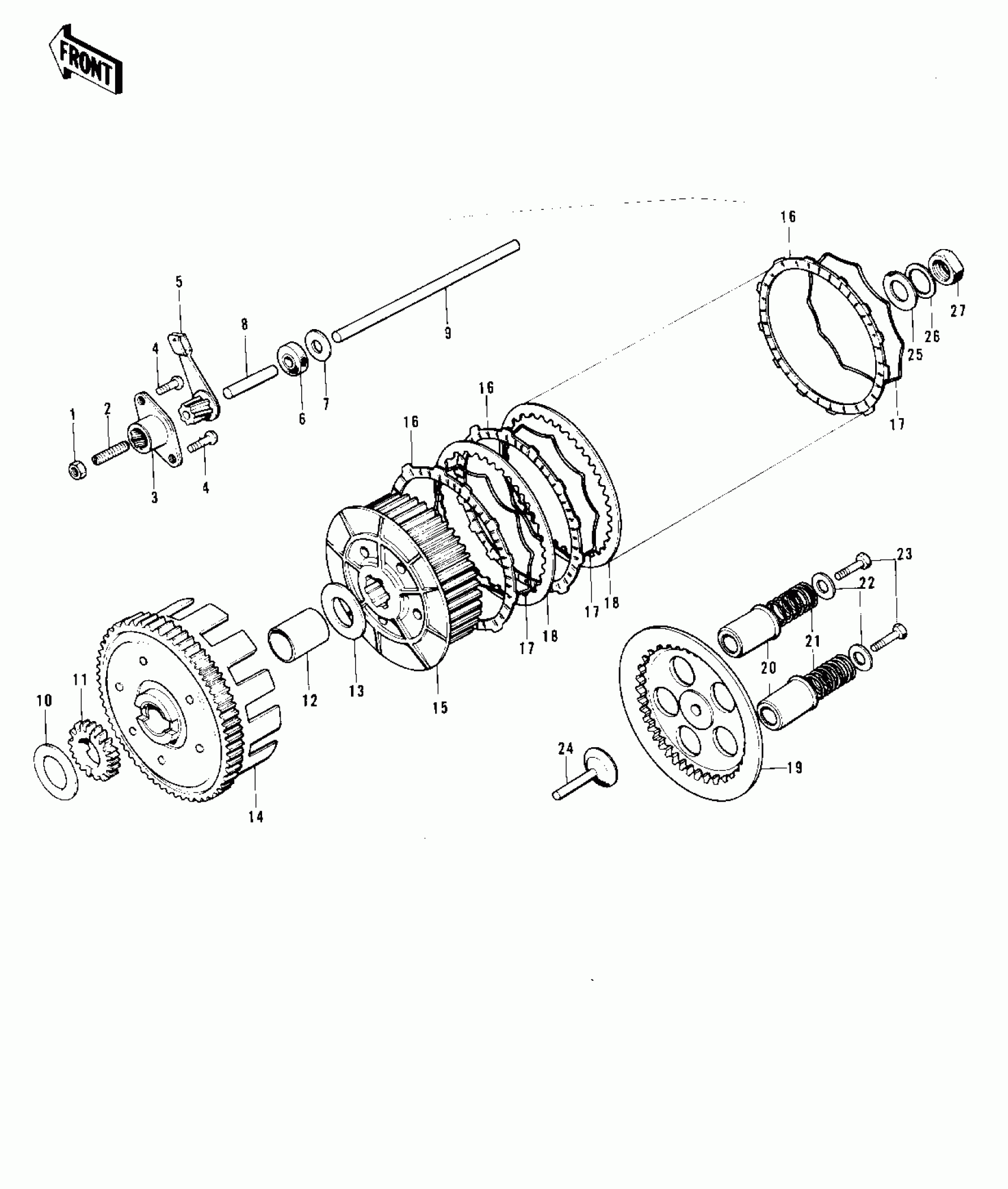

Kawasaki F11-B CLUTCH ('73-'75 F11/F11-A/F11-B) Diagram
#
Description
Price
1
NUT 6MM
311B0600
Unavailable
1
NUT 6MM
311B0600
Unavailable
2
SCREW-CLUTCH ADJUST
92014-011
Unavailable
3
RELEASE OUTER-CLUTCH
13118-005
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
Unavailable
5
RELEASE INNER-CLUTCH
13102-010
Unavailable
6
OIL SEAL-CLTH PSH RO
92050-034
Unavailable
7
WASHER-PLAIN,18MM
92026-073
Unavailable
8
PUSH ROD-CLUTCH,SHOR
13116-013
Unavailable
9
ROD-CLUTCH PUSH,LONG
13116-017
Unavailable
10
WASHER,20.5X34X1.4
92022-168
Unavailable
11~13
CLUTCH-ASSY
13081-060
Unavailable
11
PINION-KICKSTARTER
13075-008
Unavailable
12
BUSHING
92028-105
Unavailable
13
WASHER-PLAIN,20MM
92022-189
Unavailable
14~23
CLUTCH ASSY
13081-041
Unavailable
14
HOUSING-CLUTCH
13095-031
Unavailable
15
HUB-CLUTCH
13087-029
Unavailable
16
PLATE-CLUTCH FRICTIO
13088-029
Unavailable
17
RING-CLUTCH STEEL
13229-003
Unavailable
18
PLATE-CLUTCH,T=1.6
13089-013
Unavailable
19
PLATE-CLUTCH SPRING
13187-005
Unavailable
20
GUIDE CLUTCH SPRING
13092-005
Unavailable
21
SPRING,CLUTCH
92081-083
Unavailable
22
HOLDER CL SPG6.5X20X2
13091-009
Unavailable
23
BOLT-UPSET
112G0618
Unavailable
23
BOLT-UPSET
112G0618
Unavailable
24
PUSHER-CLTCH SPRG PL
13116-020
Unavailable
25
WASHER-PLAIN
92022-229
Unavailable
26
WASHER-LOCK,14MM
463G1400
Unavailable
27
NUT,14MM
314B1400
Unavailable
