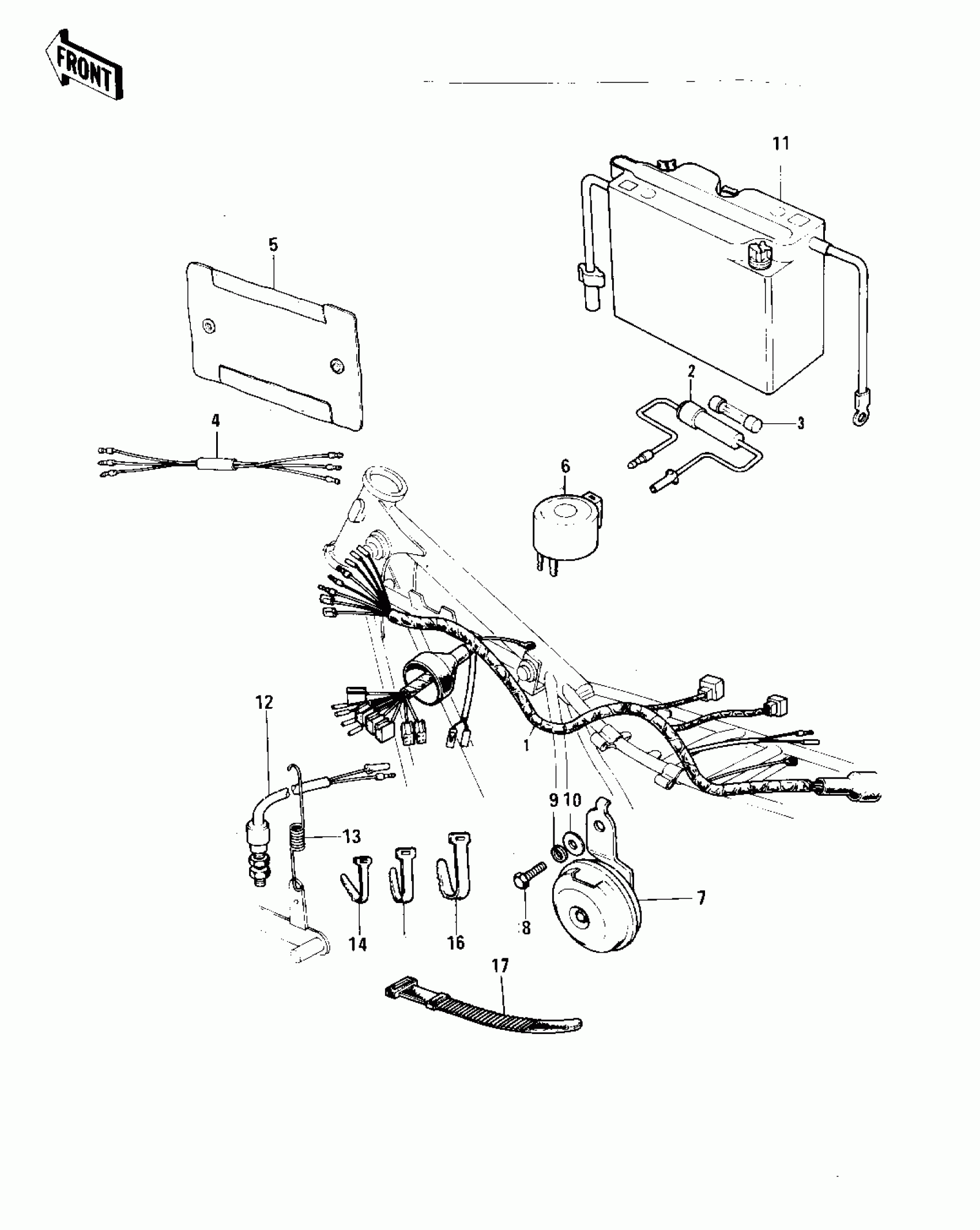

Kawasaki F11-B CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description

Price

1

WIRING HARNESS-MAIN

26001-082

Unavailable

2,3

FUSE ASSY

26004-014

Unavailable

3

FUSE 15A

26006-007

Unavailable

4

WIRE-LEAD

26011-065

Unavailable

5

COVER-WIRING HARNESS

26009-005

Unavailable

6

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

7

HORN

27003-056

Unavailable

7

HORN

27003-056

Unavailable

8

BOLT HEX HEAD 8X16

116B0816

Unavailable

9

WASHER SPRING 8MM

461F0800

Unavailable

10

WASHER PLAIN 8MM

411B0800

Unavailable

11

YUA BAT 6N4B-2A-3

26012-035

Unavailable

12

SWITCH-BRAKE LAMP

27010-017

Unavailable

13

SPRING-BRAKE LAMP SW

27011-012

Unavailable

14

BAND,L=123

92072-030

Unavailable

15

BAND,L=149

92072-031

Unavailable

16

BAND,L=218

92072-032

Unavailable

17

BAND-RUBBER

92072-035

Unavailable
