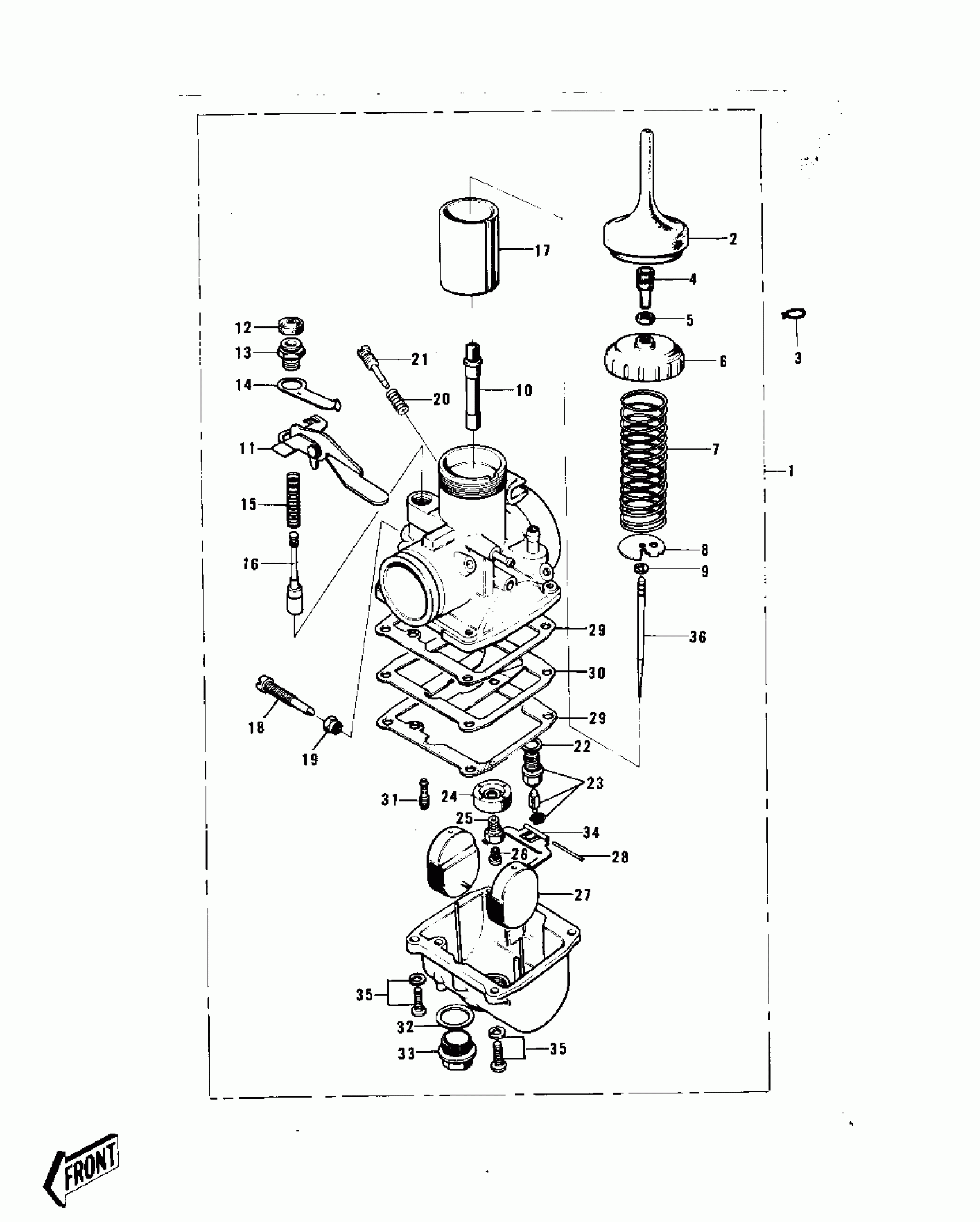

Kawasaki F11-B CARBURETOR ('73 F11M) Diagram
#
1
CARBURETOR ASSY
16001-176
Unavailable
2
CAP,CABLE ADJUSTER
16036-011
Unavailable
3
RING-SNAP
92036-018
Unavailable
4
ADJUSTER-CABLE
16002-011
Unavailable
5
SPRING THROTTLE VALV
16006-006
Unavailable
6
CAP-MIXING CHAMBER
16004-022
Unavailable
7
SPRING-THROTTLE VALV
16006-016
Unavailable
8
SEAT-SPRING-CARB
16007-022
Unavailable
9
CLAMP,E-TYPE
16008-010
Unavailable
10
NEEDLE JET O-6
16017-067
Unavailable
11
UNAVAILABLE IN PRICE BOOK
16063-00
Unavailable
12
BOOT,STARTER PLUNGER
16036-012
Unavailable
13
CAP,PLUNGER
16012-016
Unavailable
14
SPRING,STATER LEVER
16013-009
Unavailable
15
SPRING,STARTER PLUG
16013-008
Unavailable
16
PLUNGER
16016-011
Unavailable
17
VALVE,TROTTLE CA2.5
16025-056
Unavailable
18
SCREW,THROTTLE ADJUST
16021-022
Unavailable
19
NUT,CABLE ADJUST LOCK
16003-009
Unavailable
20
SPRING,PILOT AIR SCREW
16022-007
Unavailable
21
SCREW
16014-006
Unavailable
22
WASHER FLOAT VLV SEAT
16029-004
Unavailable
23
FLOAT VALVE ASSY
16030-020
Unavailable
24
RING
16065-024
Unavailable
25
HOLDER,MAIN JET
16065-025
Unavailable
26
MAIN JET NO 130R
92063-057
Unavailable
26
MAIN JET NO 125R
92063-055
Unavailable
26
JET-MAIN,#A127.5
92063-1100
Unavailable
26
JET-MAIN NO 132.5R
92063-103
Unavailable
26
MAIN JET NO 135R
92063-104
Unavailable
27
FLOAT
16031-1062
Unavailable
28
PIN,FLOAT
16032-003
Unavailable
29
GASKET
16019-022
Unavailable
30
PLATE
16038-010
Unavailable
31
PILOT JET #30 IS
92064-027
Unavailable
32
WASHER-MAIN JET COVER
16034-003
Unavailable
33
COVER,MAIN SET
16049-004
Unavailable
34
ARM,FLOAT
16055-004
Unavailable
35
SCREW, FLOAT CHAMBER
16033-017
Unavailable
36
JET NEEDLE 6FL14
16009-058
Unavailable
