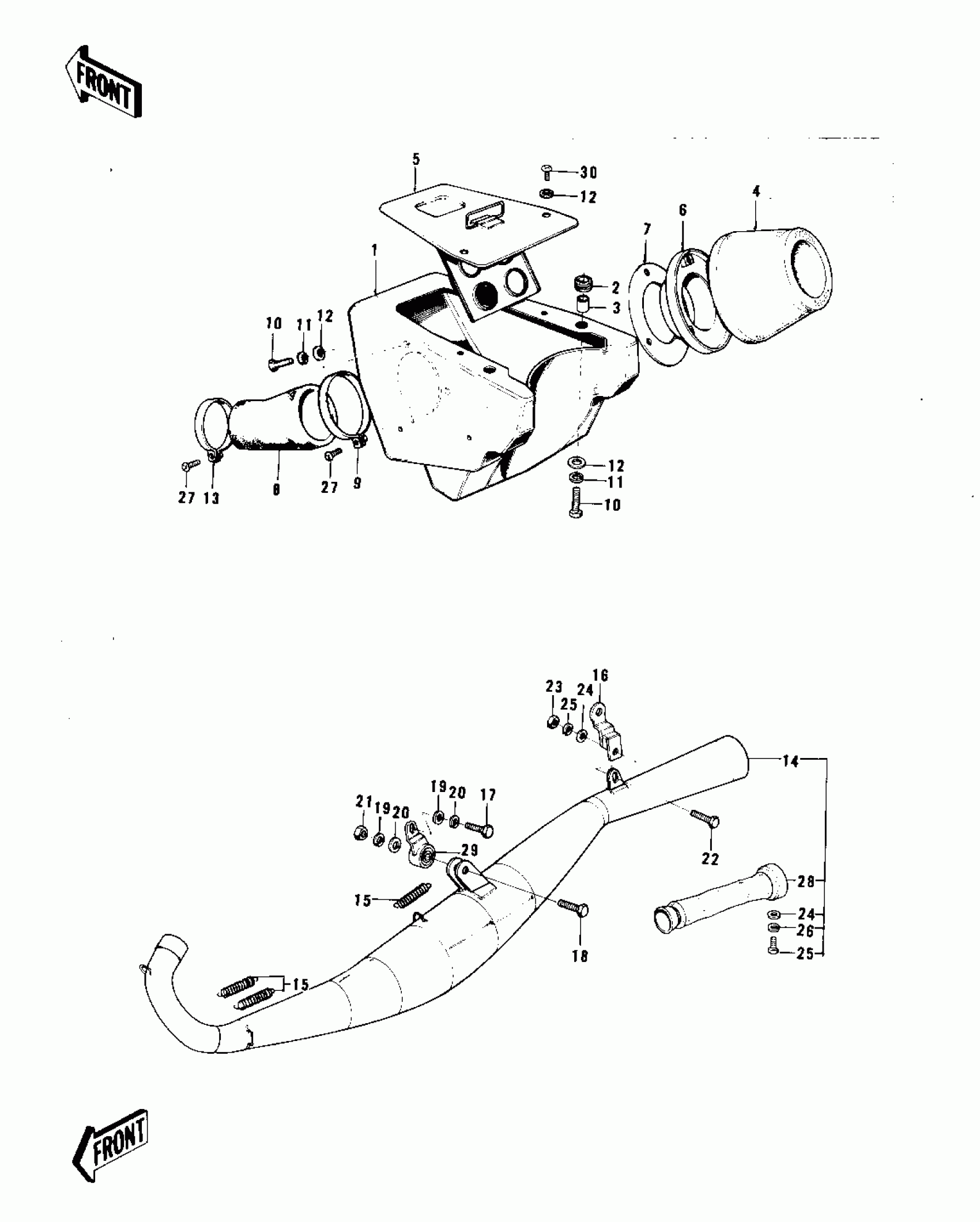

Kawasaki F11-B AIR CLEANER/MUFFLER ('73 F11M) Diagram
#
Description
Price
1
BODY,AIR CLEANER
11011-026
Unavailable
2
DAMPER RUBBER
92075-105
Unavailable
3
COLLAR
92027-153
Unavailable
4
ELEMENT,AIR,CLNR
11013-039
Unavailable
5
CAP ASSY,AIR CLEANER
11012-033
Unavailable
6
BODY,AIR CLEANER
11011-028
Unavailable
7
GASKET
11017-010
Unavailable
8
PIPE
11026-007
Unavailable
9
CLAMP
92037-106
Unavailable
10
BOLT-UPSET,6X20
112G0620
Unavailable
10
BOLT-UPSET,6X20
112G0620
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
CLAMP
92037-107
Unavailable
14
MUFFLER ASSY
18001-094
Unavailable
15
SPRING,MUFFLER
18071-006
Unavailable
16
BRACKET,MUFFLER
18061-041
Unavailable
17
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
17
BOLT HEX HEAD 8X16
116B0816
Unavailable
18
BOLT-SMALL-UPSET
115B0832
Unavailable
18
BOLT HEX HEAD 8X32
116B0832
Unavailable
19
WASHER SPRING 8MM
461F0800
Unavailable
20
WASHER PLAIN 8MM
411B0800
Unavailable
21
NUT,8MM
311B0800
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
23
NUT 6MM
311B0600
Unavailable
24
WASHER PLAIN 6MM
411B0600
Unavailable
25
BOLT-UPSET,6X12
112G0612
Unavailable
25
BOLT-UPSET,6X12
112G0612
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
SCREW PAN HEAD 5X30
220B0530
Unavailable
28
BAFFLE TUBE
18033-072
Unavailable
29
BRACKET,MUFFLER
18024-019
Unavailable
30
SCREW PAN HEAD 6X10
220B0610
Unavailable
