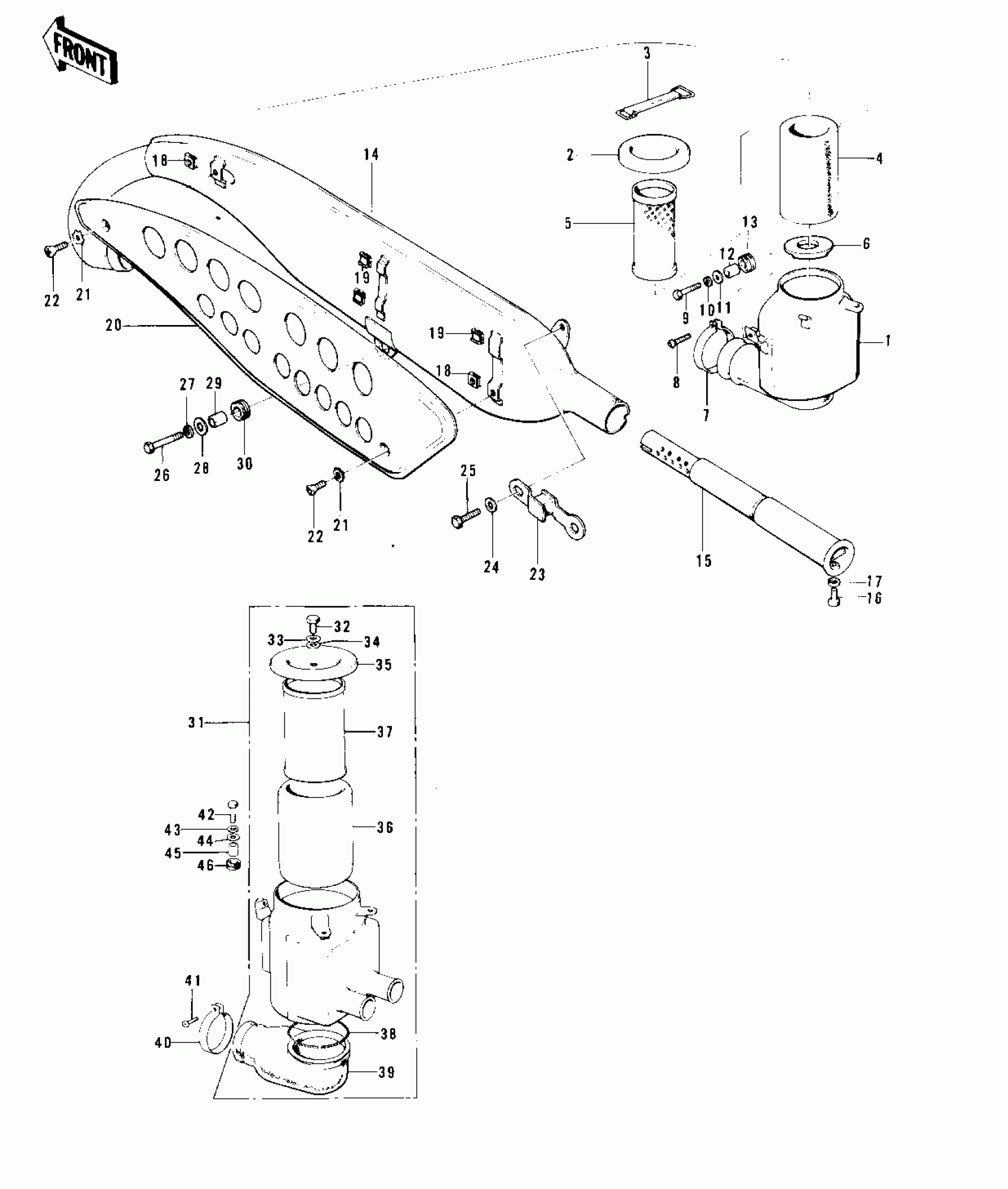

Kawasaki F11-B AIR CLEANER/MUFFLER ('73-'75 F11/F11-A/F Diagram
#
1~6
AIR CLEANER ASSY,BLACK
11010-056-10
Unavailable
2
CAP, AIR CLEANER
11012-027-10
Unavailable
3
BAND-AIRCLEANER CAP
92072-043
Unavailable
4
ELEMENT,AIR,CLNR
11013-047
Unavailable
5
WIRE NET-AIR CLEANER
11014-006
Unavailable
6
HOLDER-AIR INLET PIP
16065-016
Unavailable
7,8
CLAMP-INLET PIPE
92037-061
Unavailable
8
SCREW-PAN-CROS
220B0535
Unavailable
9
BOLT 6X22
112B0622
Unavailable
9
BOLT 6X22
112B0622
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
WASHER,6.5X20X1.6
92022-125
Unavailable
12
COLLAR,6.8X10X8.5
92027-129
Unavailable
13
DAMPER RUBBER
92075-076
Unavailable
14~17
MUFFLER ASSY.F-BLACK
18001-125-21
Unavailable
15
BAFFLE TUBE
18033-065
Unavailable
16
BOLT-UPSET,6X12
112G0612
Unavailable
16
BOLT-UPSET,6X12
112G0612
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
INSULATOR-HEAT
18065-009
Unavailable
19
INSULATOR
18065-007
Unavailable
20
COVER-MUFFLER
18064-008
Unavailable
21
WASHER LOCK 6MM
463H0600
Unavailable
22
SCREW PAN HEAD 6X12
220E0612
Unavailable
23
BRACKET-MUFFLER
18061-038
Unavailable
24
WASHER PLAIN 6MM
411B0600
Unavailable
25
BOLT-UPSET,6X16
112G0616
Unavailable
26
BOLT-SMALL-UPSET,8X30
115G0830
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
WASHER FUEL TANK FIT
92022-035
Unavailable
29
COLLAR
92027-102
Unavailable
30
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
31
AIR CLEANER ASY,BLAC
11010-080-10
Unavailable
32
BOLT,HEX HEAD,6X14
92001-121
Unavailable
33
WASHER SPRING 6MM
461F0600
Unavailable
34
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
35
CAP,AIR CLEANER
11012-046
Unavailable
36
ELEMENT,AIR,CLNR
11013-047
Unavailable
37
WIRE NET-AIR CLEANER
11014-006
Unavailable
38
SPRING,COIL
92081-063
Unavailable
39
PIPE,AIR INLET
11015-045
Unavailable
40
CLAMP-INLET PIPE
92037-061
Unavailable
41
SCREW-PAN-CROS
220B0535
Unavailable
42
BOLT 6X22
112B0622
Unavailable
43
WASHER SPRING 6MM
461F0600
Unavailable
44
WASHER,6.5X20X1.6
92022-125
Unavailable
45
COLLAR,6.8X10X8.5
92027-129
Unavailable
46
DAMPER RUBBER
92075-076
Unavailable
