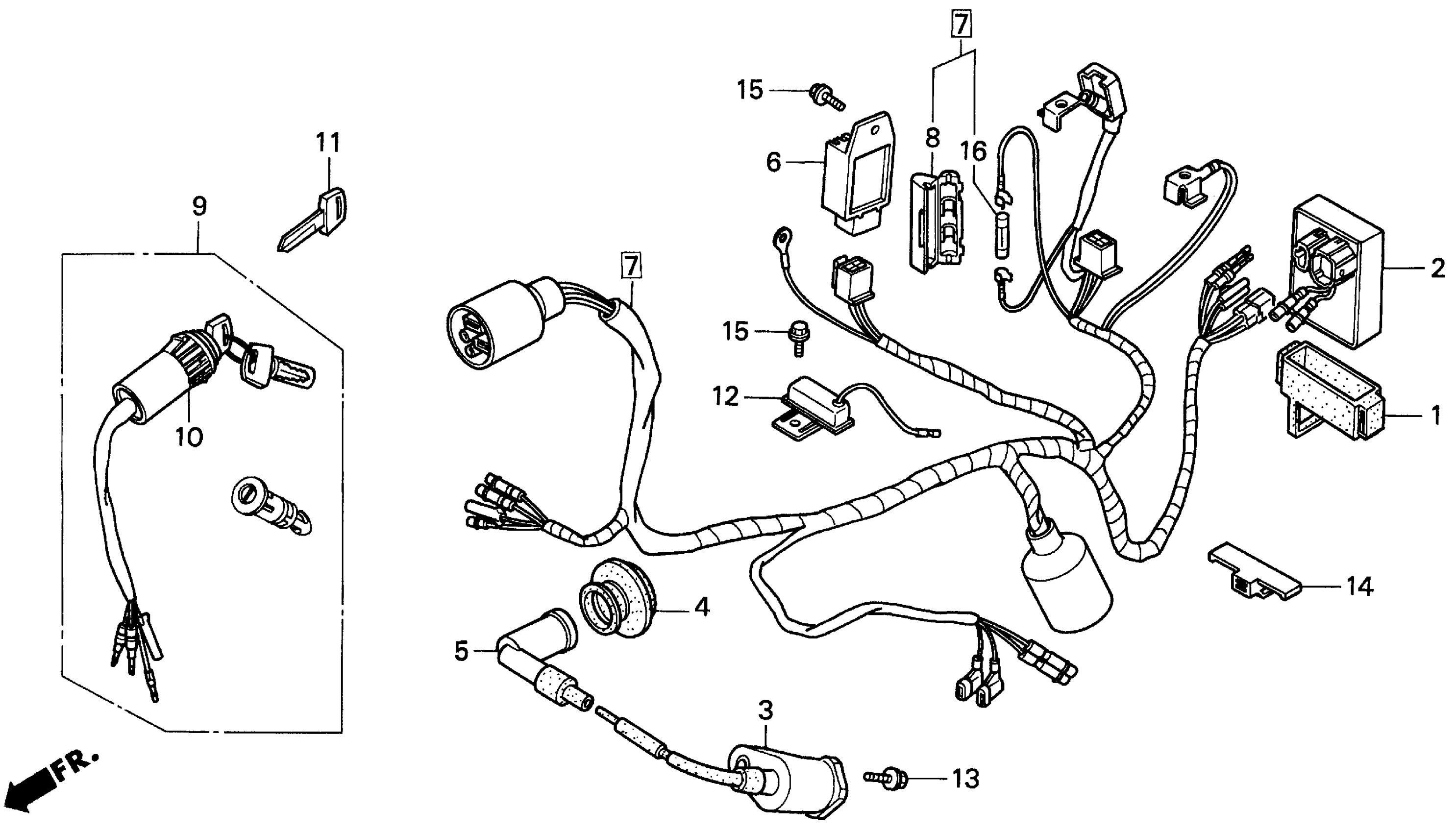

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-HA7-670

$10.00

2

MODULE, IGNITION CONTROL (CDI)

30410-GZ4-671

Unavailable

3

COIL ASSY., IGNITION This part replaces 30510-GZ4-670.

30510-GF9-405

$84.33

3

COIL ASSY., IGNITION This part replaces 30510-KL8-740.

30510-GF9-405

$84.33

4

SEAL, IGNITION TERMINAL

30605-GW0-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-GR1-010

Unavailable

6

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

7

WIRE HARNESS

32100-GZ4-670

Unavailable

8

CASE, FUSE (5A) (NOT AVAILABLE)

32125-463-770

Unavailable

9

LOCK SET

35010-GZ4-670

Unavailable

10

SWITCH ASSY., COMBINATION

35100-GZ4-671

Unavailable

11

KEY, BLANK (TYPE1) | (Optional).

35121-GZ0-003

$9.44

11

KEY, BLANK (TYPE2) | (Optional).

35122-GZ0-003

Unavailable

12

RESISTOR (5W)

35400-GZ4-670

Unavailable

13

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

14

CLIP, WIRE HARNESS (BLACK)

91553-SF4-003

$5.52

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

16

FUSE B (5A)

98200-20500

$1.49
