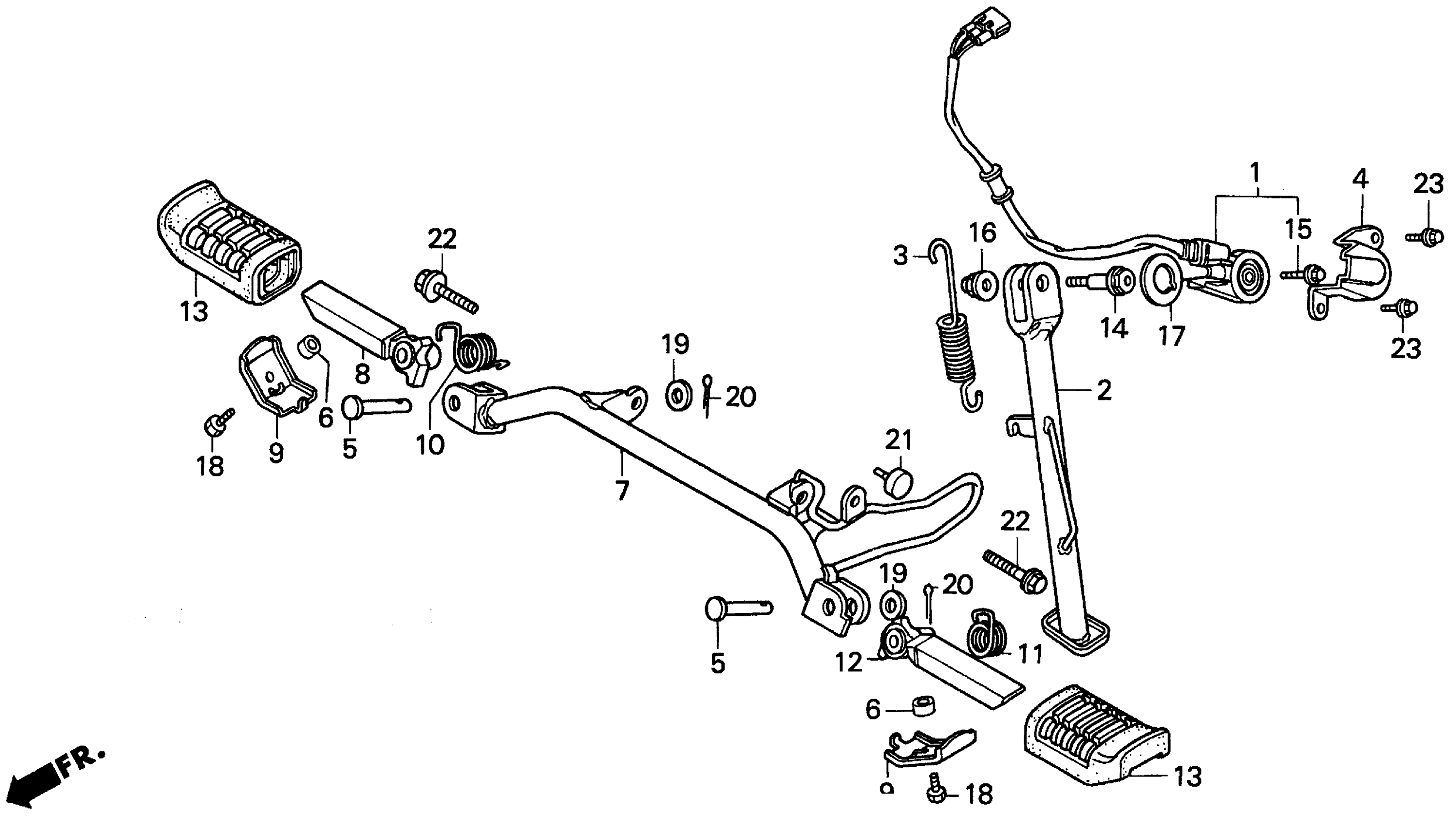

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 STEP Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-GZ4-305

Unavailable

2

BAR, SIDE STAND

50530-GZ4-670

Unavailable

3

SPRING ASSY., SIDE STAND This part replaces 50541-MM4-000.

50542-MZ2-000

$16.18

4

GUARD, SIDE STAND SWITCH

50547-GZ4-670

Unavailable

5

PIN, STEP BAR JOINT

50603-033-010

$3.30

6

COLLAR, STEP RUBBER SETTING

50605-GZ4-670

$3.65

7

BAR, STEP

50610-GZ4-670

Unavailable

8

STEP, R.

50615-GZ4-670

Unavailable

9

STOPPER, STEP RUBBER

50616-GZ4-670

Unavailable

10

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

10

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

11

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

11

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

12

STEP, L.

50645-GZ4-670

Unavailable

13

RUBBER, MAIN STEP

50661-GZ4-670

Unavailable

14

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

15

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

15

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

16

NUT, SIDE STAND

90203-MF9-710

$3.67

17

WASHER, SIDE STAND PIVOT

90501-GZ4-670

Unavailable

18

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

RUBBER B, STAND STOPPER

95011-62000

$1.49

22

BOLT, FLANGE (10X20)

95701-10020-00

$2.23

23

BOLT, FLANGE (6X8)

96001-06008-07

$1.49
