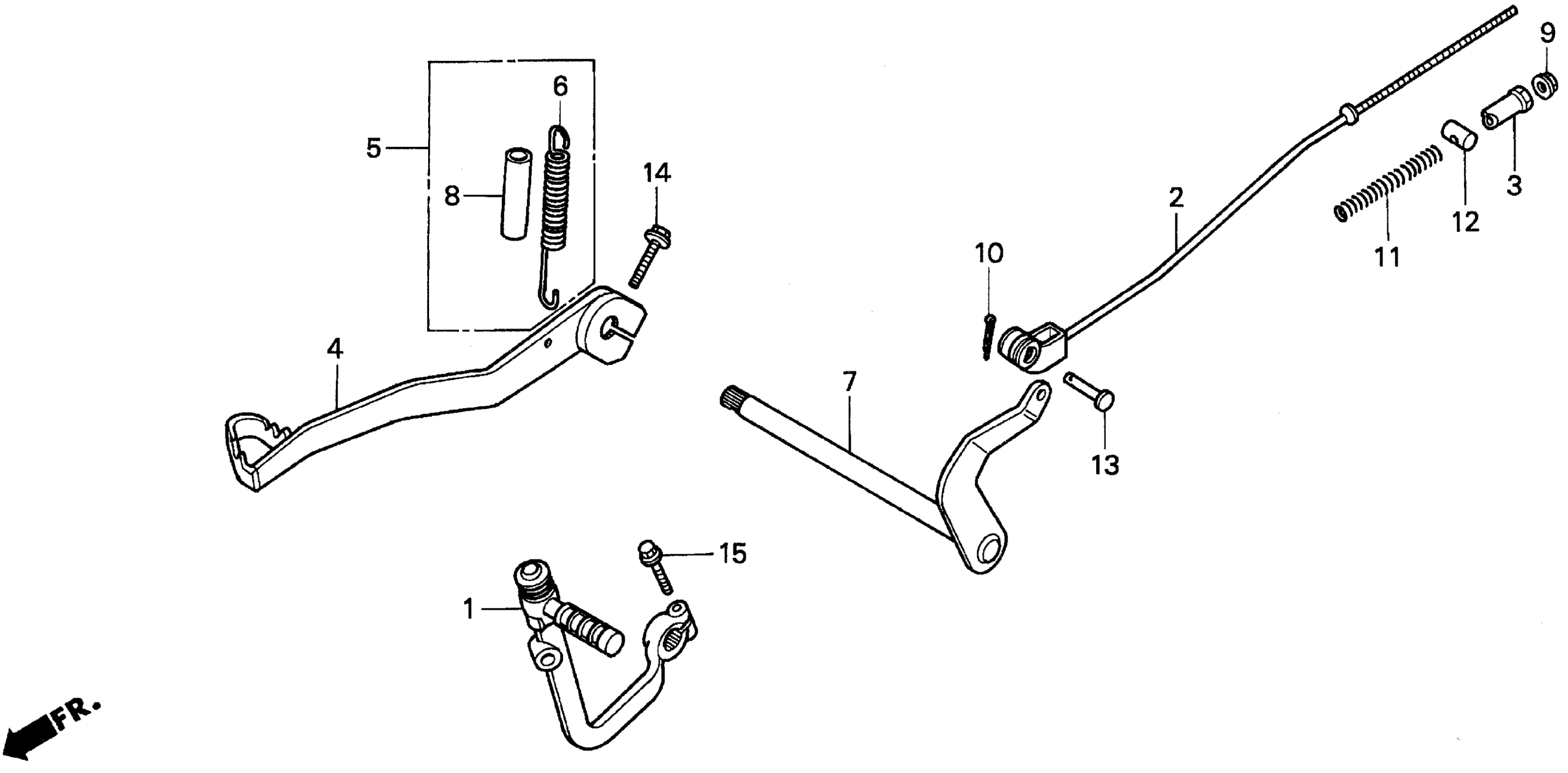

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 PEDAL Diagram

ARM ASSY., KICK STARTER

28300-GZ4-670

Unavailable

ROD, RR. BRAKE

43451-GZ4-670

Unavailable

NUT, BRAKE ADJUSTING

43464-958-000

$6.82

PEDAL, BRAKE

46510-GZ4-670

Unavailable

SPRING ASSY., BRAKE PEDAL

46513-GZ4-670

Unavailable

ARM, MIDDLE

46515-GZ4-670

Unavailable

TUBE, BRAKE PEDAL SPRING

46517-GZ4-670

Unavailable

NUT, U (6MM)

90301-473-003

$3.79

PIN, COTTER (2.0X12)

94201-20120

$0.94

SPRING A, BRAKE ROD

95014-73100

$1.17

JOINT, BRAKE ARM

95015-32001

$0.86

PIN, JOINT (C)

95015-53000

$2.85

BOLT, FLANGE (8X32)

95701-08032-07

$2.88

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
