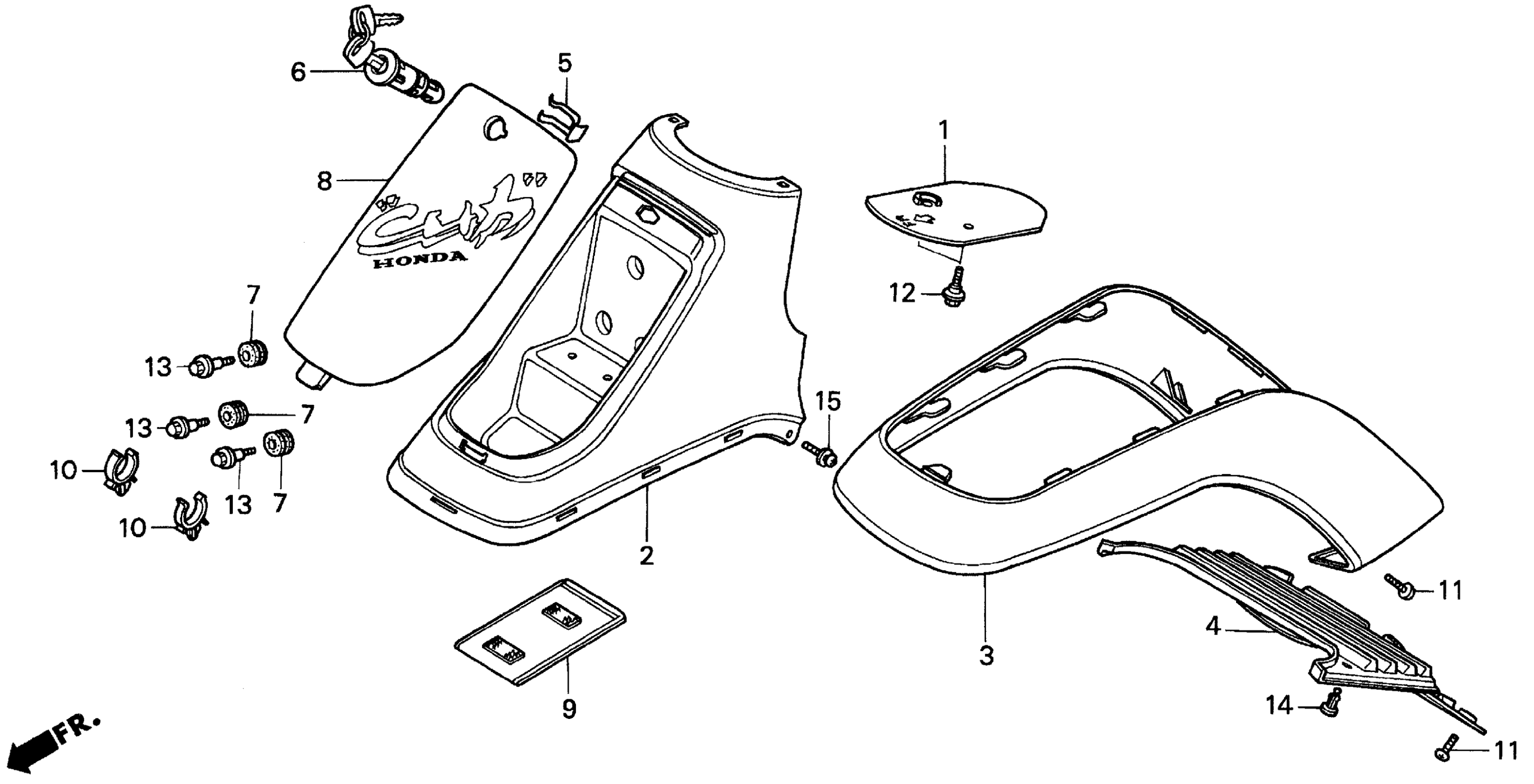

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 FRONT COVER Diagram

FENDER (INNER)

61110-GZ4-670

$9.21

COVER, FR. *NH138* (SHASTA WHITE)

64300-GZ4-670ZA

Unavailable

MOLDING, FR. *R134R* (FIGHTING RED)

64303-GZ4-670ZC

Unavailable

LOUVER, FR. *NH201R* (HUSKY GRAY)

64310-GZ4-670ZA

Unavailable

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

LOCK, SIDE BOX (TYPE1)

77239-GE8-003

Unavailable

LOCK, SIDE BOX (TYPE1) This part replaces 77239-GN2-000.

77239-GE8-003

Unavailable

LOCK, SIDE BOX (TYPE2) (NOT AVAILABLE) This part replaces 77249-GN2-000.

77249-GE8-003

Unavailable

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.74

LID SET, FR. COVER *NH138* (WL) (SHASTA WHITE)

81140-GZ4-670ZA

Unavailable

BAG, OWNER'S MANUAL

83642-GZ4-670

Unavailable

CLAMP, TOOL

89101-GZ4-670

Unavailable

SCREW, SPECIAL (5X22)

90101-GZ4-670

$2.92

BOLT, FLANGE (6MM)

90111-ML0-730

$3.88

BOLT, FLANGE (6X20)

90113-449-000

$3.19

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW-WASHER (5X14)

93891-05014-00

$1.49
