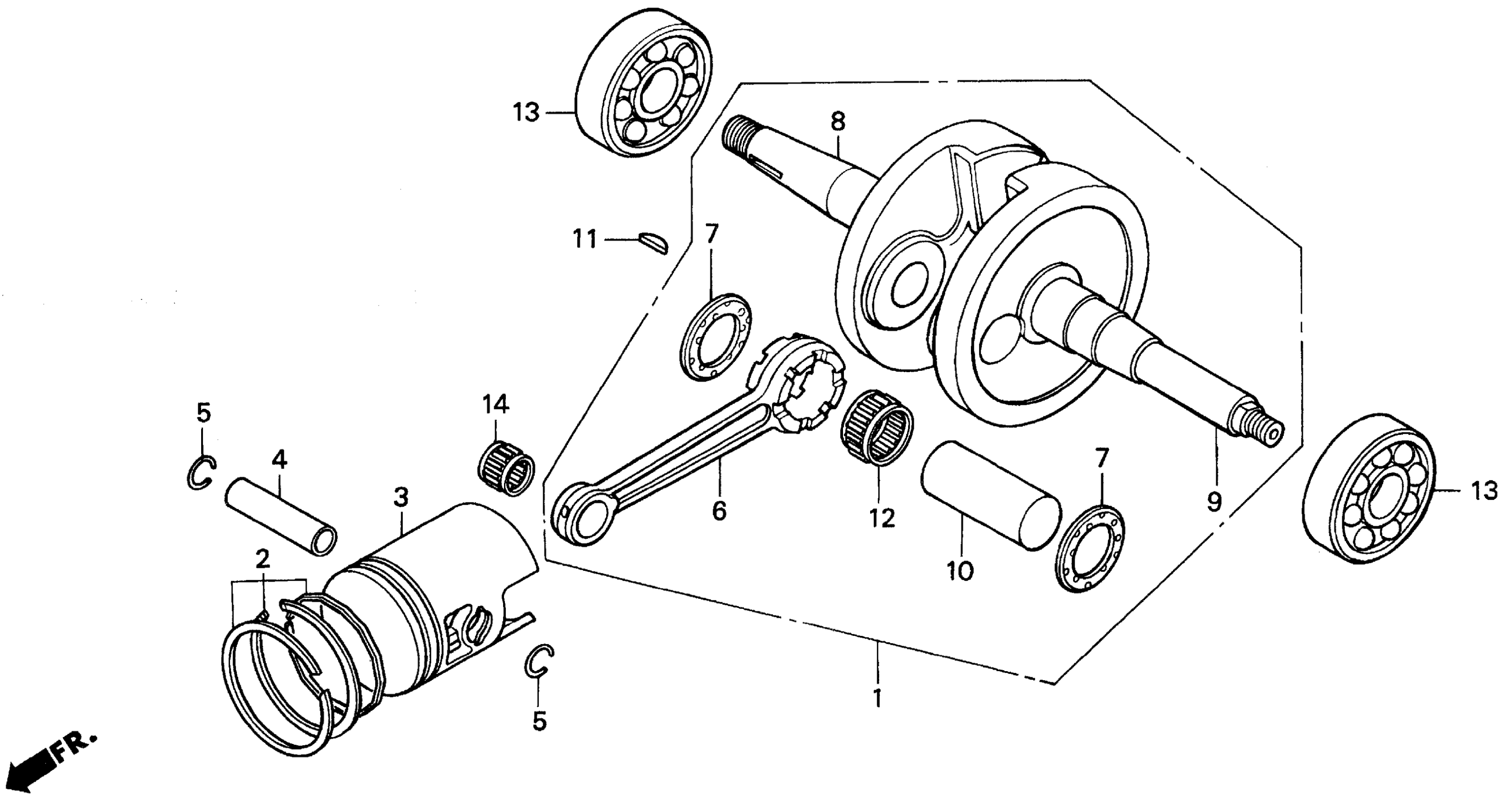

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 CRANKSHAFT Diagram
#
Description
Price
1
CRANKSHAFT
13000-GZ4-671
Unavailable
2
RING SET, PISTON
13010-GC8-305
Unavailable
2
RING SET, PISTON (OS 0.25) | (Optional).
13011-GC8-305
Unavailable
2
RING SET, PISTON This part replaces 13011-GZ4-305.
13010-GC8-305
Unavailable
2
RING SET, PISTON (OS 0.50) | (Optional).
13012-GC8-305
Unavailable
2
RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-GZ4-305.
13011-GC8-305
Unavailable
2
RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-GZ4-305.
13012-GC8-305
Unavailable
3
PISTON (STD)
13101-GW3-020
Unavailable
3
PISTON (OS 0.25) | (Optional).
13106-GZ4-305
Unavailable
3
PISTON (OS 0.50) | (Optional).
13107-GZ4-305
Unavailable
3
PISTON (STD)
13102-GW3-020
Unavailable
4
PIN, PISTON
13111-GC8-000
Unavailable
4
PIN, PISTON This part replaces 13111-GZ4-670.
13111-GC8-000
Unavailable
6
ROD, CONNECTING
13201-GW3-300
Unavailable
7
PLATE, CONNECTING ROD SIDE
13202-169-003
Unavailable
8
CRANKSHAFT, R.
13311-GZ4-670
Unavailable
9
CRANKSHAFT, L.
13321-GZ4-670
Unavailable
10
PIN, CRANK This part replaces 13381-GW3-310.
13381-KBN-900
Unavailable
10
PIN, CRANK
13381-KBN-900
Unavailable
12
BEARING, CONNECTING ROD BIG END (RED) (TOYO)
91001-GW0-008
Unavailable
12
BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)
91002-GW0-008
Unavailable
12
BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)
91003-GW0-008
Unavailable
12
BEARING, CONNECTING ROD BIG END (GREEN) (TOYO)
91004-GW0-008
Unavailable
14
BEARING, CONNECTING ROD SMALL END
91102-GZ4-671
Unavailable
