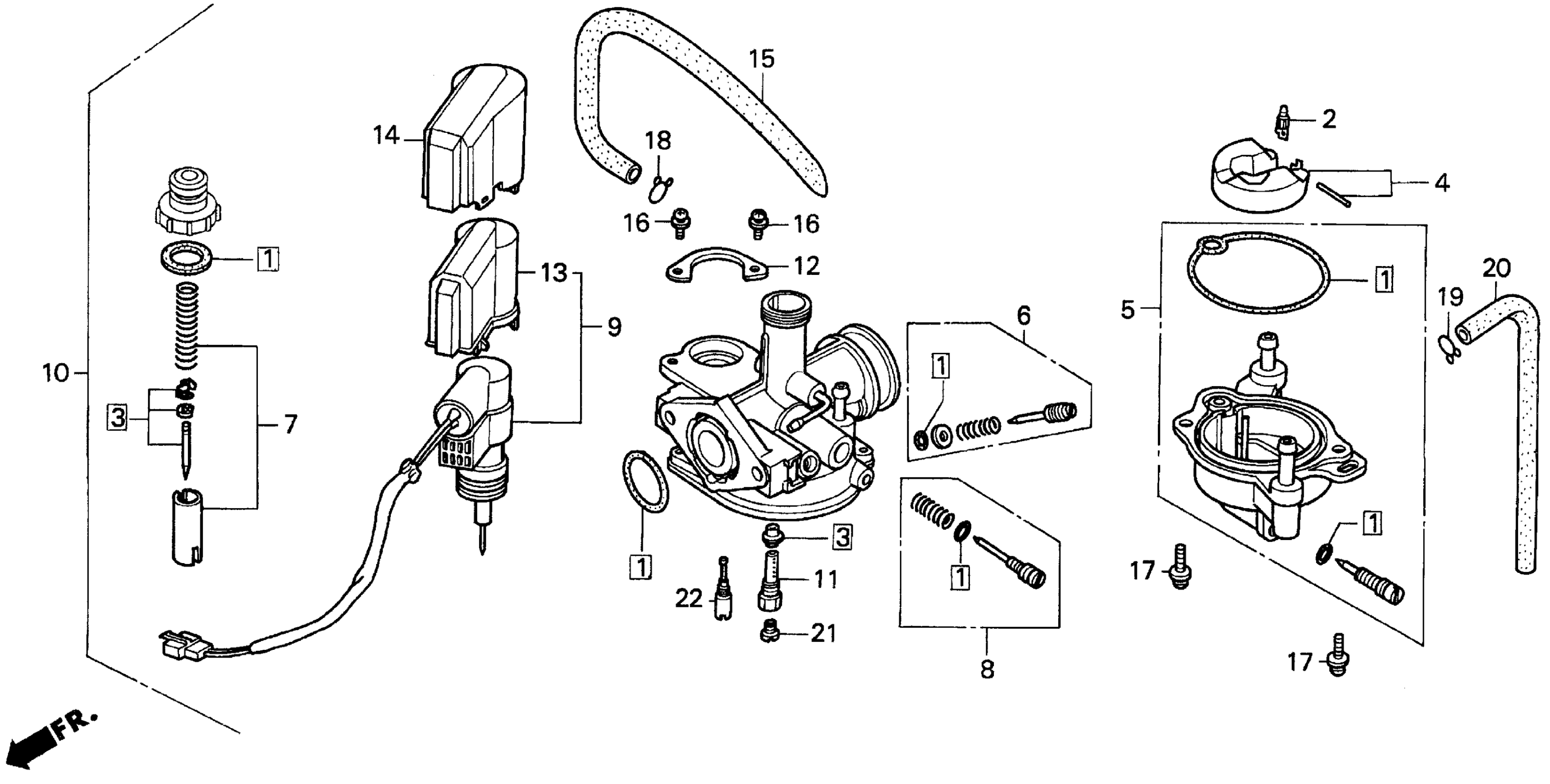

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 CARBURETOR Diagram
#
Description
Price
1
GASKET SET
16010-GM9-405
Unavailable
1
GASKET SET This part replaces 16010-GM9-703.
16010-GM9-405
Unavailable
2
VALVE SET, FLOAT
16011-GZ4-670
Unavailable
3
NEEDLE SET, JET
16012-GZ4-670
Unavailable
4
FLOAT SET This part replaces 16013-GBL-710.
16013-KBN-900
Unavailable
4
FLOAT SET This part replaces 16013-KG8-003.
16013-KBN-900
Unavailable
5
CHAMBER SET, FLOAT
16015-GZ4-670
Unavailable
6
SCREW SET A
16016-GK4-941
Unavailable
6
SCREW SET A This part replaces 16016-141-781.
16016-GK4-941
Unavailable
7
VALVE SET, THROTTLE
16022-GZ4-670
Unavailable
8
SCREW SET
16028-GW3-003
Unavailable
9
VALVE SET, STARTER
16047-GZ4-671
Unavailable
10
CARBURETOR ASSY. (PB11D A)
16100-GZ4-672
Unavailable
11
HOLDER, NEEDLE JET
16165-GC8-004
Unavailable
12
PLATE, SET
16186-GJ2-004
Unavailable
13
CAP, HOLDER This part replaces 16190-GJ2-004.
16190-GR1-003
Unavailable
14
CAP (OUTER)
16191-GM9-701
Unavailable
15
TUBE, AIR VENT
16199-GW2-013
Unavailable
