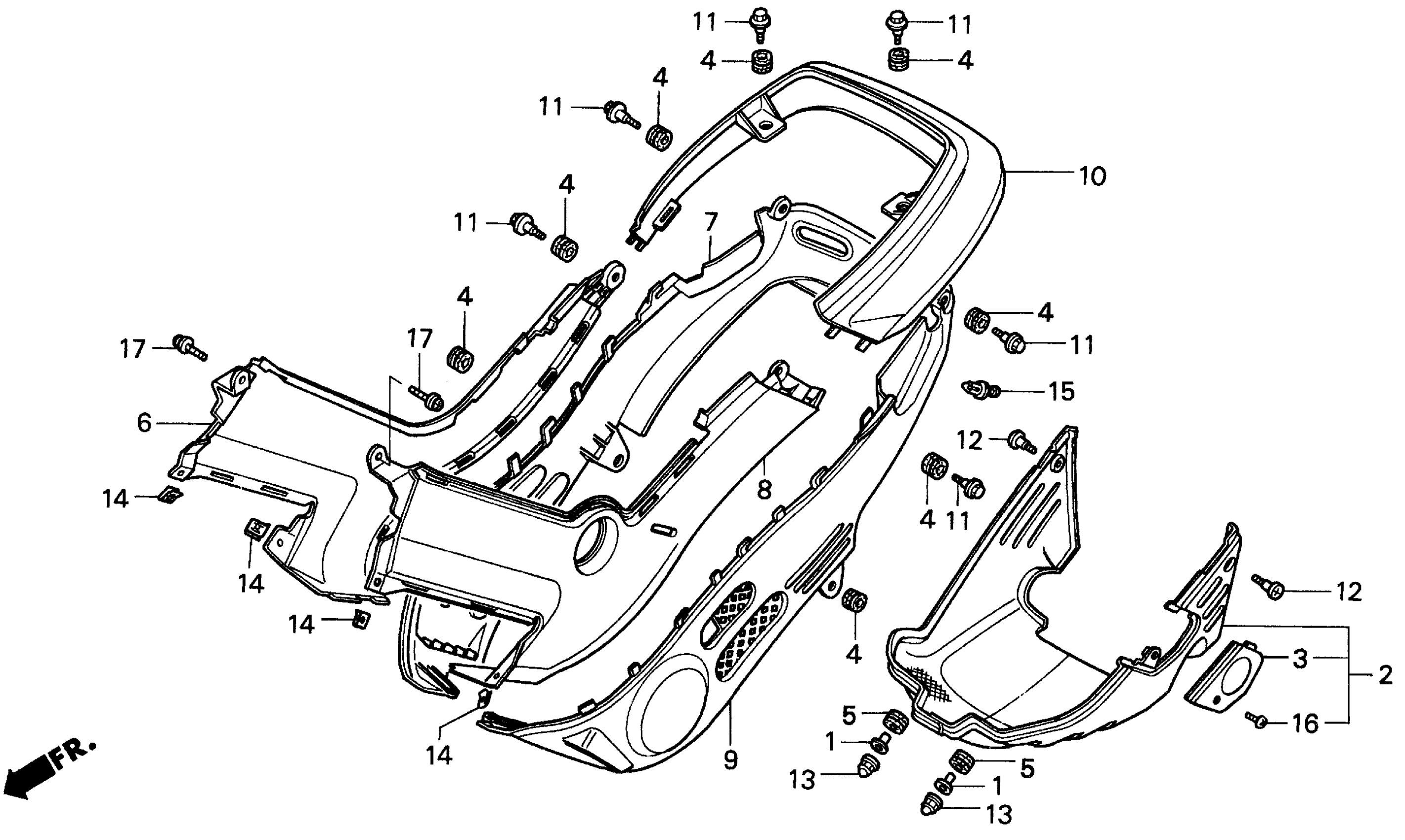

Honda EZ90A (96) CUB, JPN, VIN# JH2HE060-TK700001 BODY COVER Diagram

#

Description
Price

1

COLLAR, RADIATOR SETTING

19052-KV0-000

Unavailable

2

PLATE ASSY., SKID *NH179M* (NOVEMBER SILVER METALLIC)

50600-GZ4-670ZA

Unavailable

3

COVER, SHAFT *NH179M* (NOVEMBER SILVER METALLIC)

50614-GZ4-670ZA

Unavailable

4

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.74

5

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

6

COVER SET, R. BODY *NH138* (WL) (SHASTA WHITE)

83501-GZ4-670ZA

Unavailable

7

COVER, R. BODY SIDE *R134R* (FIGHTING RED)

83520-GZ4-670ZC

Unavailable

8

COVER SET, L. BODY *NH138* (WL) (SHASTA WHITE)

83601-GZ4-670ZA

Unavailable

9

COVER, L. SIDE BODY *R134R* (FIGHTING RED)

83620-GZ4-670ZC

Unavailable

10

COVER, GRIP *NH138* (SHASTA WHITE)

83700-GZ4-670ZA

Unavailable

11

BOLT, FLANGE (6X20)

90113-449-000

$3.19

12

SCREW, SPECIAL (6X10)

90165-GZ4-671

$5.80

13

NUT, CAP (6MM)

90201-415-000

$2.05

14

NUT, SPRING (5MM)

90320-GC3-000

$2.20

15

CLIP, BODY COVER

90683-GR1-003

$2.92

16

SCREW, PAN (5X8)

93500-05008-0A

$1.49

17

SCREW-WASHER (5X14)

93891-05014-00

$1.49
