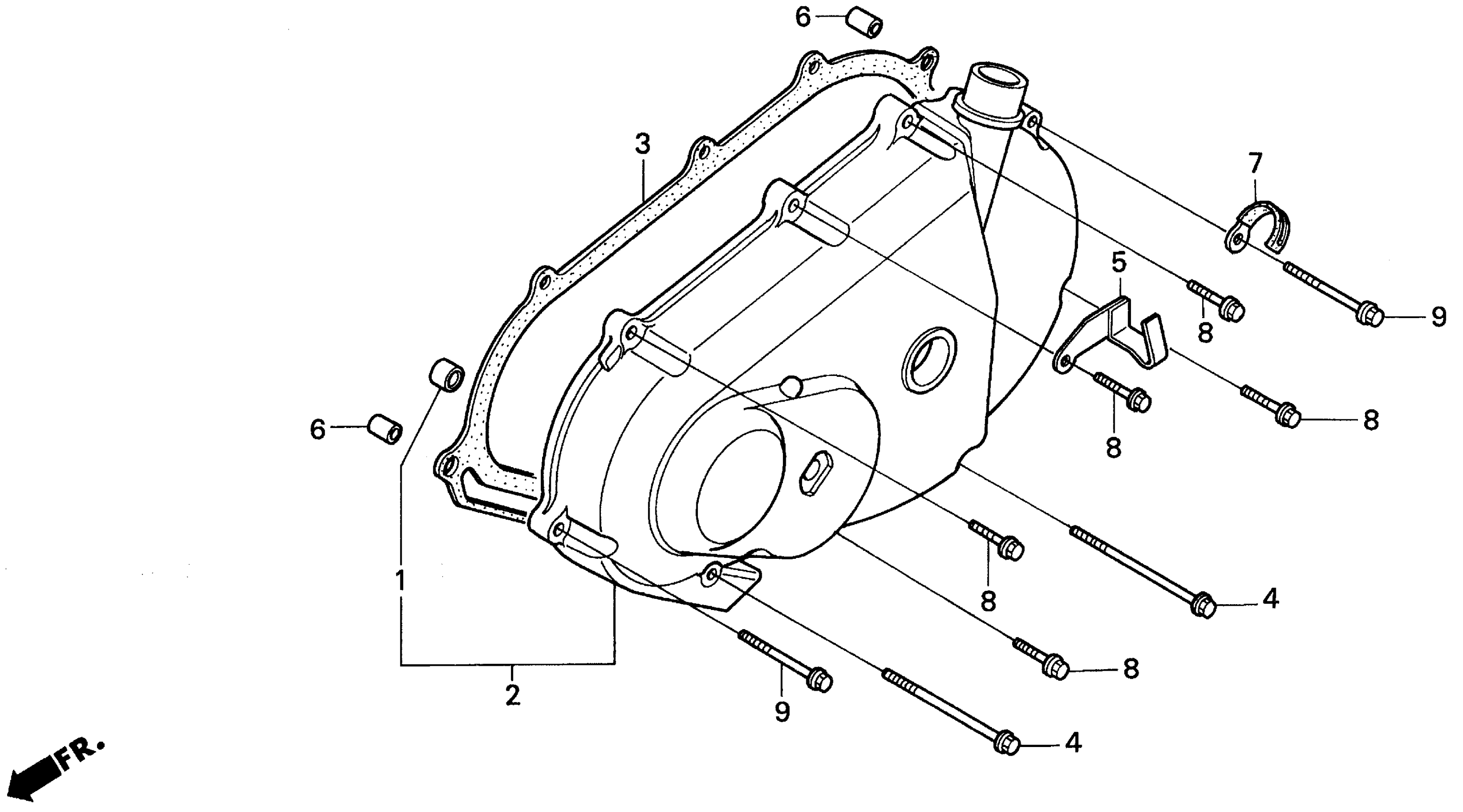

Honda EZ90A (93) CUB, JPN, VIN# JH2HE060-PK400002 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

BUSH (8X12X6)

11205-GW3-003

Unavailable

2

COVER, L. CRANKCASE This part replaces 11340-GZ4-670.

11340-GZ4-671

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-GZ4-790

Unavailable

4

BOLT, FLANGE (6X43)

90035-KG8-900

$2.98

5

CLAMP, RR. BRAKE CABLE

90657-GZ4-670

Unavailable

6

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.69

6

PIN A, DOWEL (8X12)

94301-08120

$2.69

7

CLIP (2X60)

91410-679-000

$9.27

8

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

9

BOLT, FLANGE (6X35)

96001-06035-00

$1.29
